Model NO.:
VS-TY50-V2+VS043T-004A K000752
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Place of Origin:CN;GUA
  • Type:TFT
  • Brand Name:VS
  • Model Number:VS-TY50-V2+VS043T-004A(K0752)
  • Dots Format:480X272
  • Driver Element:a-si TFT active matrix
  • Color Arrangement:RGB-stripe
  • Interface:Digital (TTL)
  • Backlight Type:Normally White LED, Transmissive

Product Description

LCD Controller Board:

HDMI LCD Board Work for 50Pin TTL LCD Screen

Input Power Adapter:5Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HDMI

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size:70mm x 50mm x 8mm

4.3"VS043T-004A 480X234 LCD Screen:

Display Mode TN, Normally White, Transmissive

Resolution 480RGB)×272

Outline Size 105.5 × 67.2×3.1 (H×V×D)

Display Area 95.04 × 53.86 (H×V)

Brightness 500 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 75/75/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC

Backlight WLED

Input Voltage 3.3V (Typ.)

Packaging & Shipping

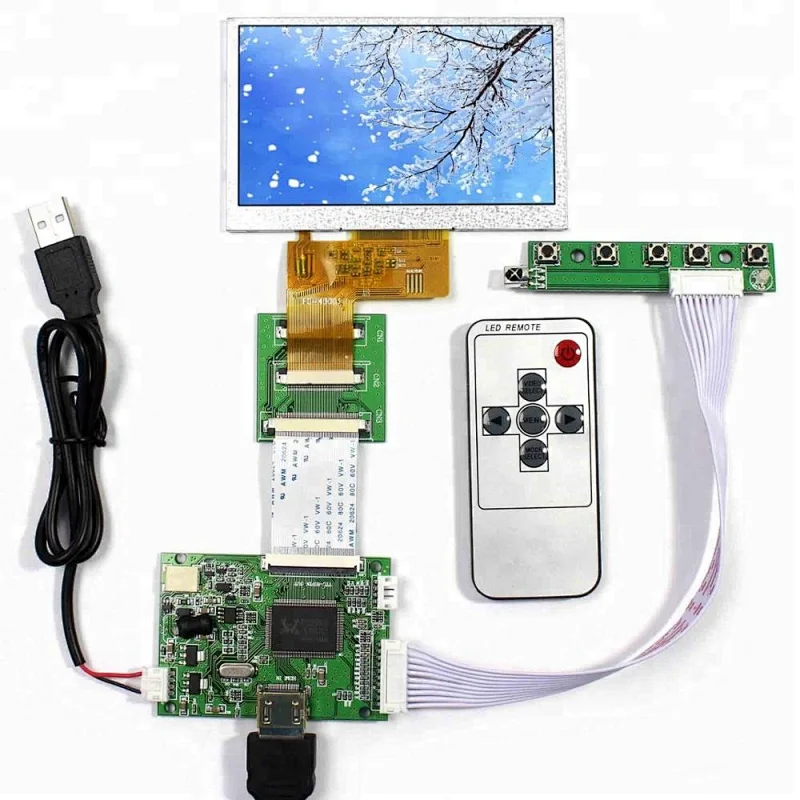

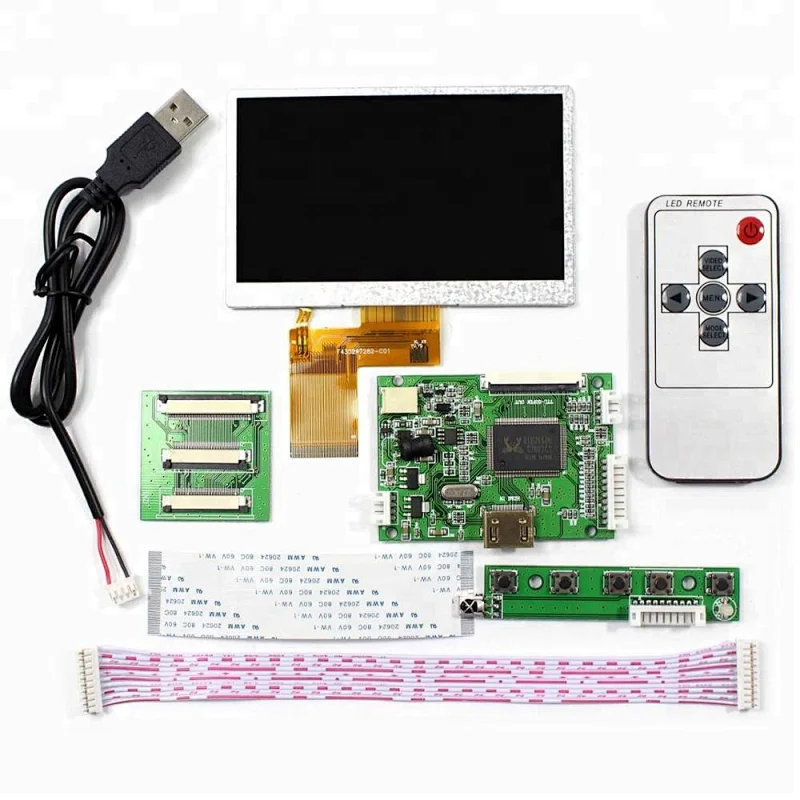

1× HDMI LCD Controller Board VS-TY50-V2

1× 4.3inch VS043T-004A 480X272 LCD Screen

FAQ

Trade Term: EXW Shenzhen or FOB Shenzhen

Shipping: DHL, UPS, FedEx, TNT, EMS, Hongkong Post

Payment: T/T HSBC, Paypal, Western Union

Our Services

1 year warranty from the day the product sold. Some technical issue can be solved online.

Company Information

workshop

VS DISPLAY TECHNOLOGY(HONGKONG) LTDis a Hi-tech manufacturer of liquid crystal displayer.It is establishiment in 1998.The headquarters is located in Shenzhen.

The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications : in telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA), mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.

VS DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.

All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.

Fabrication base covers 4,000sq meters. 2 COB lines, 1 COG lines, 1 TAB lines

QC system: ISO9001
