DVI HDMI VGA tft lcd Controller Board work for 10.4" LTD104EDZS 1024x768 LCD Screen for display

Model NO.
M.NT68676+LTD104EDZS K001964
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Type:TFT
  • Screen Size:14"
  • Video Input:HDMI DVI VGA
  • Display Mode:TFT
  • Brightness:245 cd
  • Contrast Ratio:250:1
  • Signal Interface:LVDS(1ch 6bit)
  • Backlight:WLED
  • Payment:T/T
  • Place of Origin:CN;GUA
  • Display Size:10.4inch
  • Model Number:K001964 M.NT68676+LTD104EDZS
  • Brand Name:VS
Products Show
Product Description

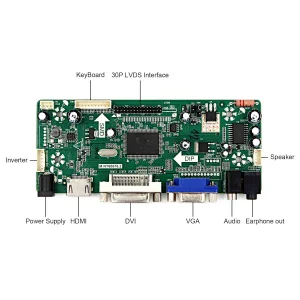

10.4"LTD104EDZS 1024x768 LCD Screen with M.NT68676.2A HDMI DVI VGA AUDIO LCD Board
Product name:
HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Details:
Input Power Adapter: 12Vdc More than 3A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HDMI DVI VGA

Audio Input: HDMI

Audio Output: Speaker Connector

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm
Product Name:
10.4"LTD104EDZS 1024x768 LCD Screen
Details:
Display Mode IPS, Normally Black, Transmissive

Resolution 1024RGB)×768

Outline Size 219.1× 173.8×6.3 (H×V×D)

Display Area 210.432×157.824 (H×V)

Brightness 245 cd/m² (Typ.)

Contrast Ratio 250:1 (Typ.) (TM)

Viewing Angle 60/70/70/60 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface LVDS(1ch 6bit) Connector 25Pin

Backlight WLED

Input Voltage 3.3V (Typ.)

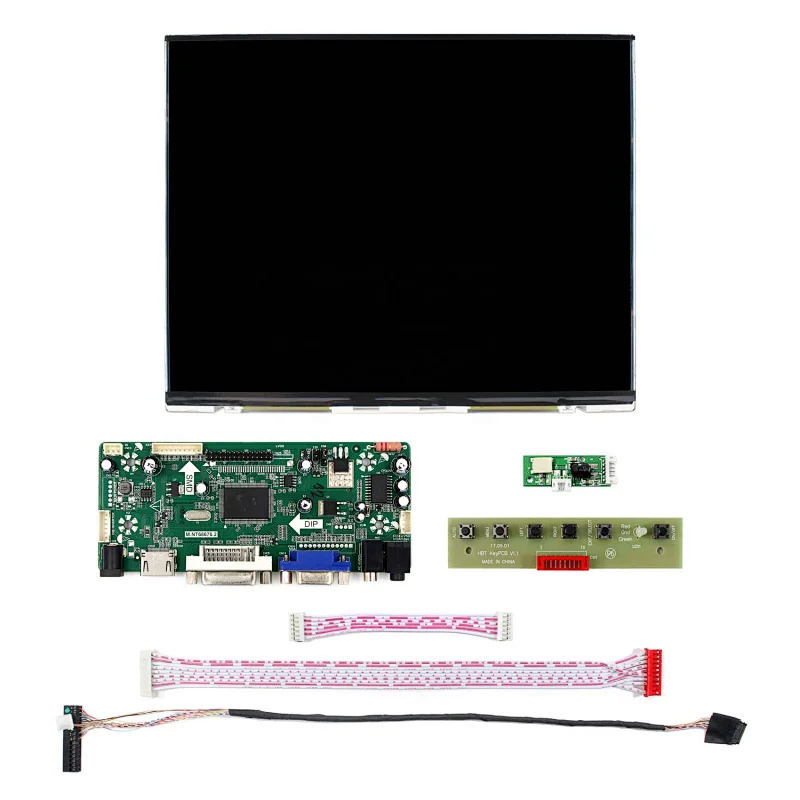

Packing list:
1× HDMI VGA DVI LCD Controller Board M.NT68676
1× 10.4"LTD104EDZS 1024x768 LCD Screen

1× LVDS Cable

1× Keyboard With Cable
