16 x 4 LCD Module use for Video Door Phone
From Romania Customer
Outline Dimension : 87.0 x 60.0 x 10.0/13.5(mm)
LCD Type : STN, POSITIVE
Driver IC : SPLC780D1
Backlight : YG LED
Supply Voltage : 5V
- Display Size:14.1inch/15.4inch
- Model Number:K001678 VS-TY2660H-V661+FIX-30Pin
- Brand Name:VS
- Place of Origin:CN;GUA
- Type:TFT
- Board Size:74mm x 53mm x 12mm
- Input power adapter:12Vdc More than 2A
- Video Input:HDMI
- Audio Input:HDMI
- OSD:Brightness Contrast Auto Language And So On
- Language:English French German Spanish Italian And So On
- Compatible Work With:14.1inch 15.4inch 1280x800
- Standby Model:<1W
- Energy Saving:Come In Standby Model When Not Input Signal
Products Show
Product Description

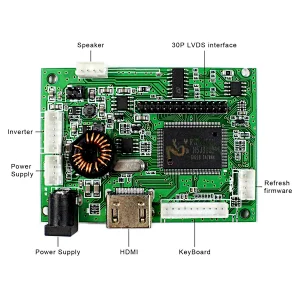

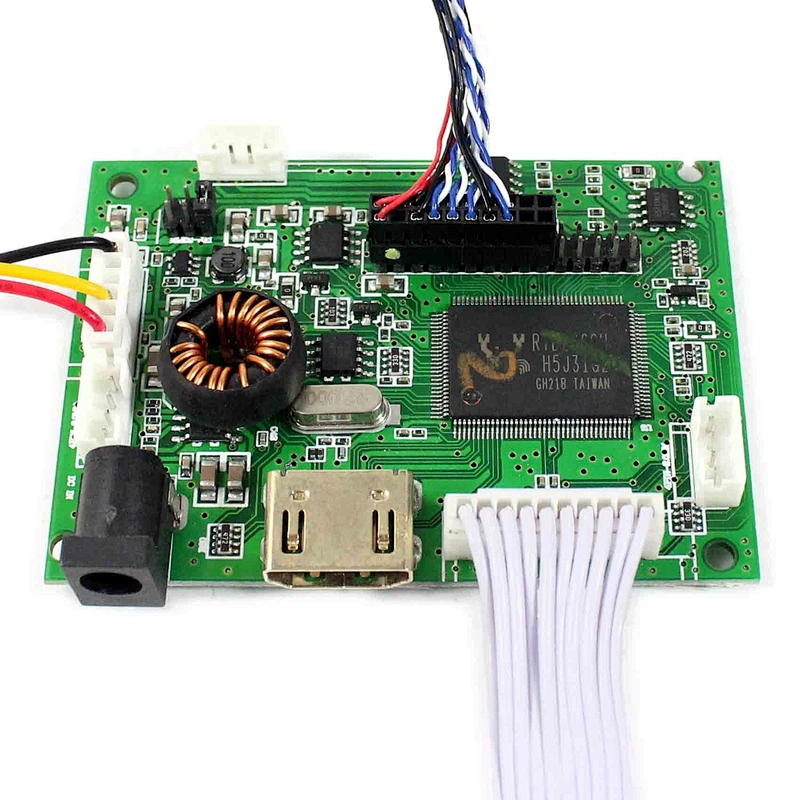

HDMI Audio LCD Controller Board VS-TY2660H-V661
Product name: | HDMI Audio LCD Controller Board VS-TY2660H-V661 | ||||||
Details: | HDMI LCD Board Work for LVDS Interface LCD Screen Input Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <1W Video Input: HDMI Audio Input: HDMI Audio Output: Speaker (4Pin PH2.0 connector) OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size: 74mm x 53mm x 12mm | ||||||
Compatible Work With: | 14.1inch 1280*800: LTN141AT01 LTN141AT02 LTN141AT03 LTN141AT07 LTN141AT10 LTN141AT13 LTN141AT14 LP141WX3 LT141WX1 B141EW01 B141EW02 B141EW03 B141EW04 M141NWW1 CLAA141WB02 N141I1 QD14TL01 15.4inch 1280x800 B154EW01 B154EW02 B154EW03 B154EW04 B154EW06 B154EW08 LTN154AT01/07/10 LTN154W1-L01 LTN154X3-L01 N154I3-L02 LP154W01 LP154WX3 LP154WX4 LP154W01 N154I2 | ||||||

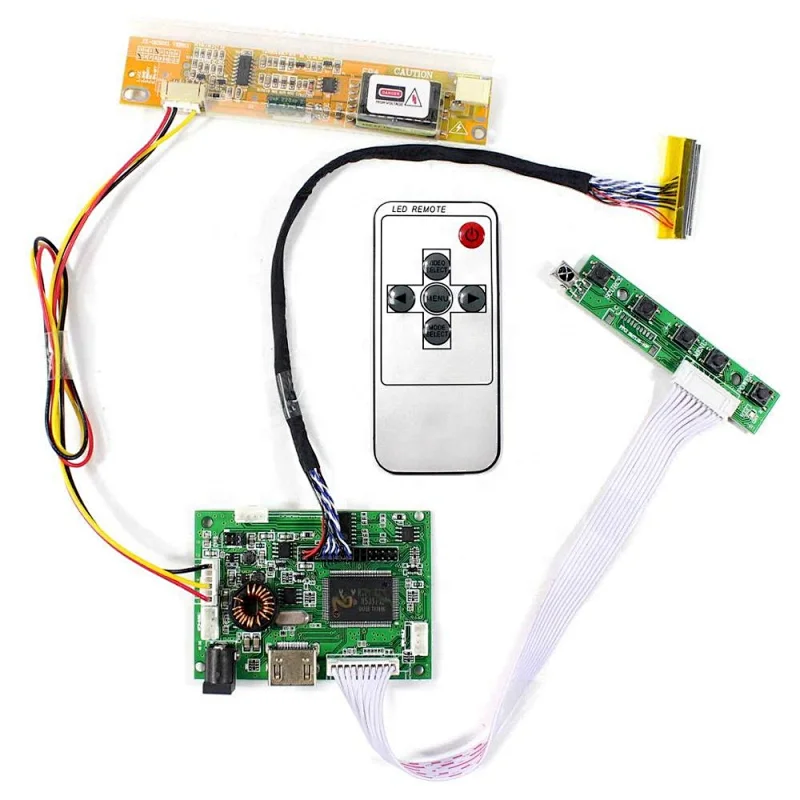

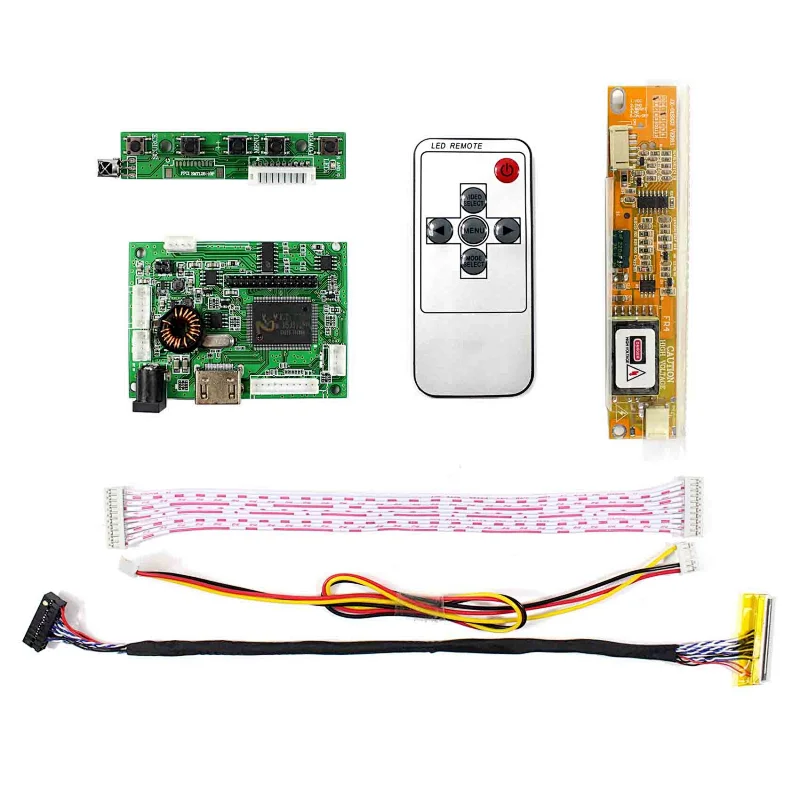

Packing list : | 1× HDMI Audio LCD Controller Board VS-TY2660H-V661 1× 1CCFL Inverter Board 1× 30Pin Signal Cable 1× Keyboard With Cable 1× Remote Control(Battery Not included) | ||||||
Hot Sales Product
More ^
LCD Driver Board
More ^
Driver Board+LCD Panel
More ^
Touch Panel
Our Company
Our Company
Our Meeting Office
WorkShop
Our Cusomter Visit Factory
WareHouse
Thousands of goods include the LCD, AD Board, Touch Panel, Cable etc.
Each item have SKU No. Standard goods always have goods in stock.
Our Certifications
Packing & Delivery
Packing Details :
Packing with standard export box, it also can package as your request.
Delivery Details :
3-30 days delivery via DHL, UPS, TNT, FEDEX, HK Register.
Our Customer Product
Video Door Phone
Favorable Comment
10.4inch 800x600, 1024x768 tft lcd use for Aerial photograpy
From Europe customer
LCD Size :10.4"
Resolution :800RGB)×600
Outline Size :236 × 174.3×4.9 (H×V×D)mm
Brightness :500 cd/m² (Typ.)
Signal Interface :LVDS (1 ch, 6-bit) , 20pins, Connector
Input Voltage : 3.3V (Typ.)
Application:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory for more than 10years in this field.
Q: How long is your delivery time?
A: Generally it is 1-3 days for sample if the goods are in stock. or it is 7-10 days if the goods are not in stock, it is according to quantity.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for charge, shipping cost depend on the QTY.Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Q: After Service for the product ?
A: We can provide the wireless technology support in any time. If the goods broken during the shipping, pls contact us after received the goods, we will refund your payment or Replenishment deliver.
