Model NO.:
RT2556H-V1+B125HAN02.2 K001760
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Type:TFT
  • Function:H DMI Board Work for 30Pin EDP LCD Screen
  • Input Power Adapter:12Vdc More than 2A
  • Energy Saving:Come In Standby Model When Not Input Signal
  • Standby Model:<0.3W
  • Video Input:HDMI
  • Audio Output:Earphone
  • OSD:Brightness Contrast Auto Language And So On
  • Language:English French German Spanish Italian And So On
  • Board Size:77mm x 55mm x 16mm
  • Place of Origin:CN;GUA
  • Display Size:12.5inch
  • Model Number:K001760 RT2556H-V1+B125HAN02.2
  • Brand Name:VS

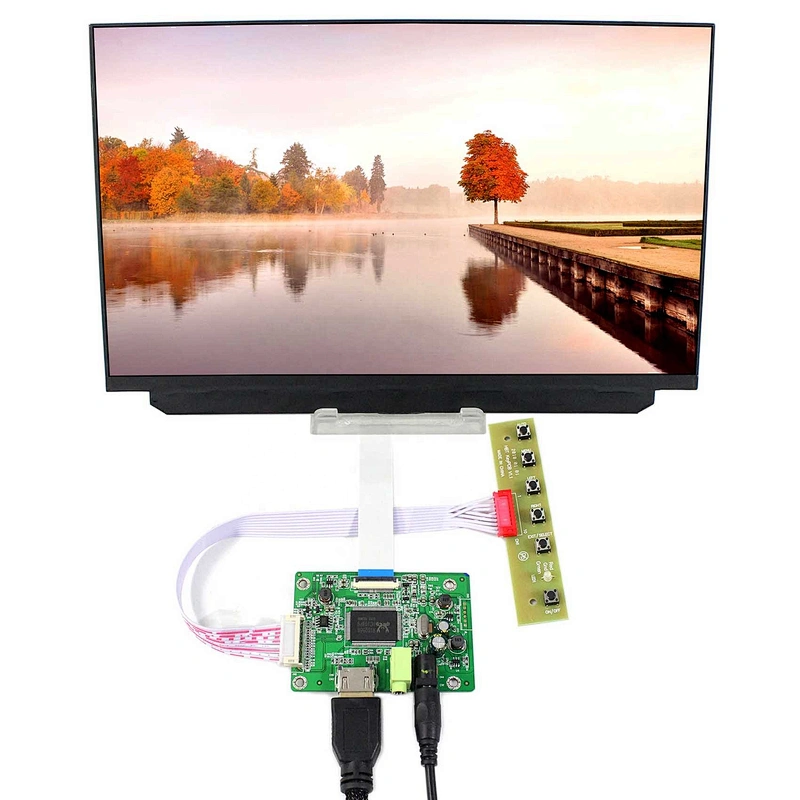

Products Show
Product Description

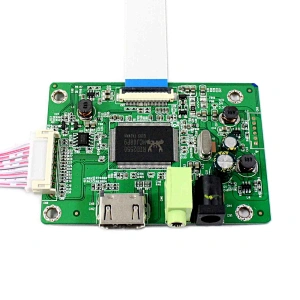

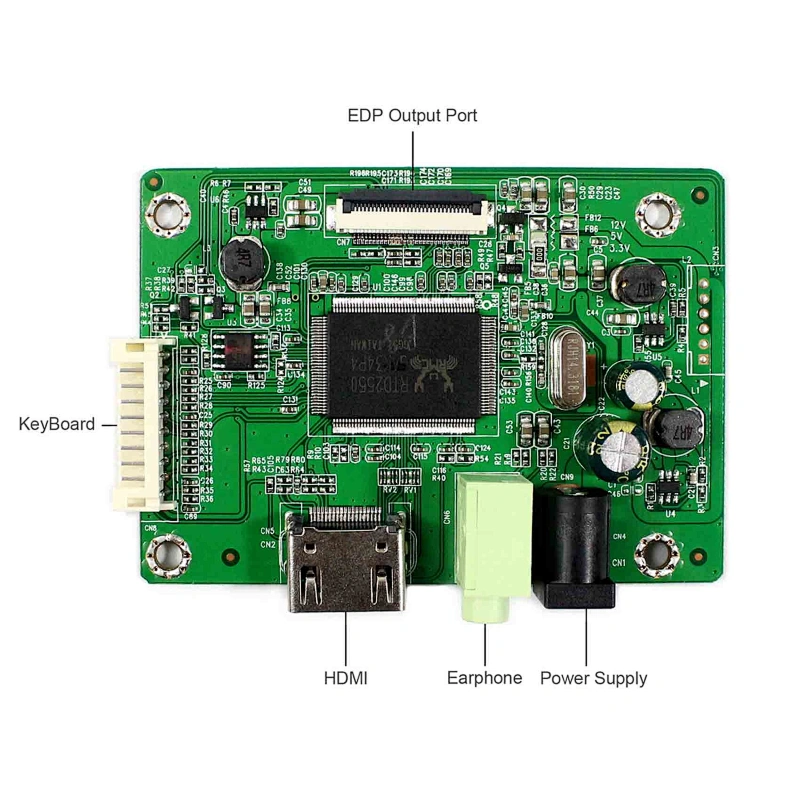

HDMI LCD Controller Board VS-RTD2556H-V1

12.5inch 1920X1080 LCD Screen

Product name:
HDMI LCD Controller Board VS-RTD2556H-V1
Input Power Adapter:
12Vdc More than 2A
Standby Model:
<0.3W Come In Standby Model When Not Input Signal
Audio Input
HDMI
Audio Output:
Earphone
OSD:
Brightness Contrast Auto Language And So On
Language:
English French German Spanish Italian And So On
Board Size:
77mm x 55mm x 16mm
Product Name:
12.5"B125HAN02.2 1920X1080 LCD Screen
Display Mode:
AHAV, Normally Black, Transmissive
Resolution:
1920RGB)×1080
Outline Size:
282.4 ×179.32×2.5(H×V×D)mm
Display Area:
276.48× 155.52 (H×V)mm
Brightness:
300 cd/m² (Typ.)
Contrast Ratio:
700:1 (Typ.) (TM)
Viewing Angle:
85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface:

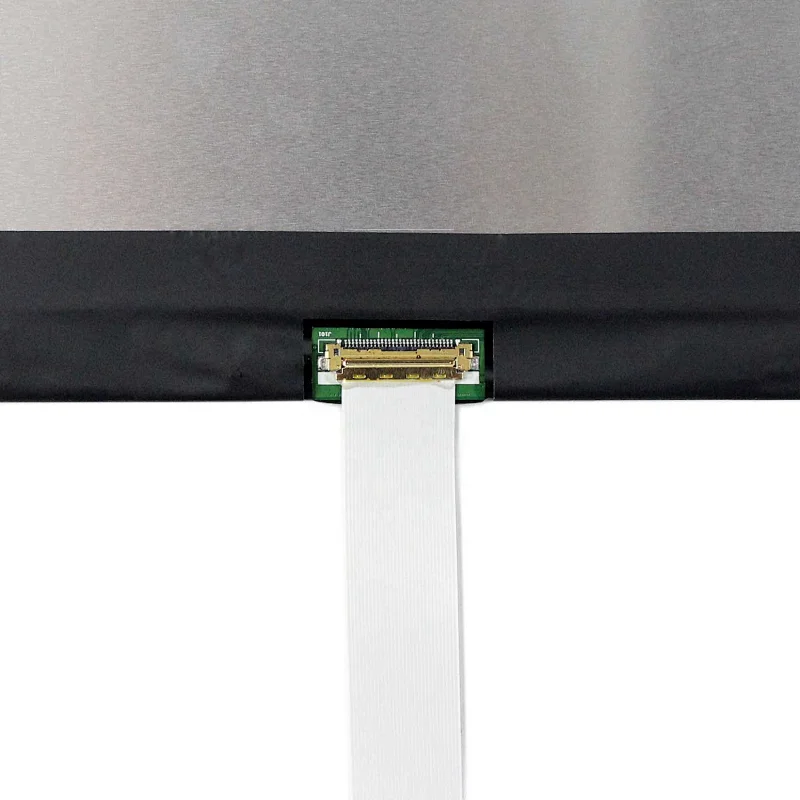

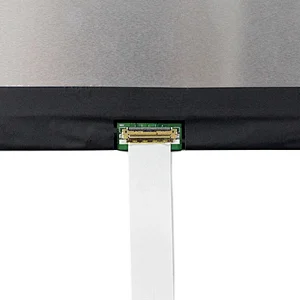

eDP (2 Lanes) , 30 pins , Connector
Backlight:
WLED
Input Voltage:
3.3V (Typ.)

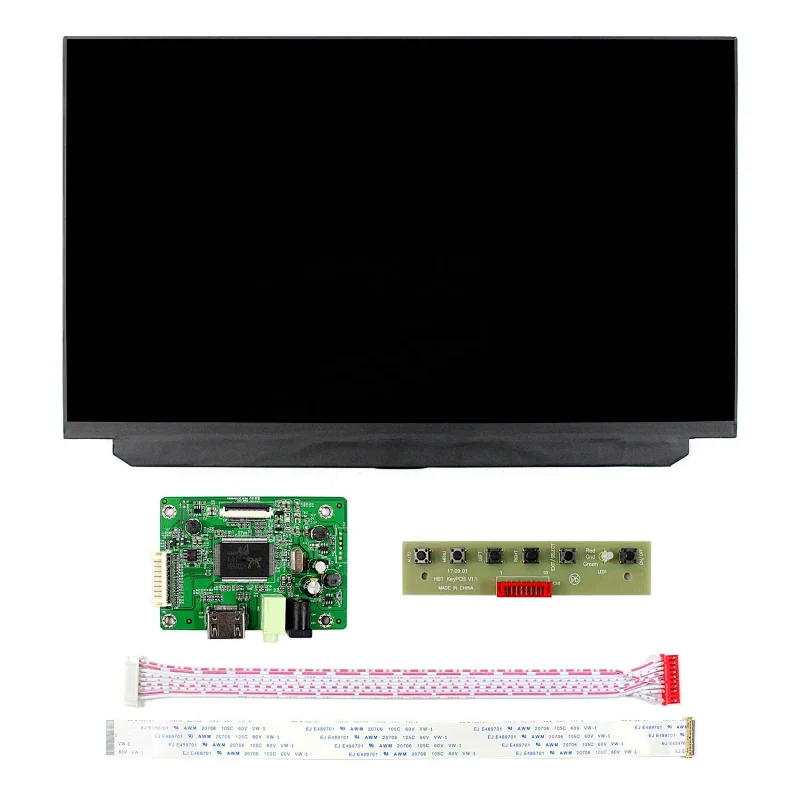

Packing list:
1× HDMI LCD Controller Board VS-RTD2556H-V1

1× 12.5inch 1920X1080 LCD Screen

1× Signal Cable

1× Keyboard With Cable
