H DMI VGA AV USB RF LCD Board Work for LVDS Interface 12.1" VS121T-001A 1024X768 LCD Screen

Model NO.
K002010 VST5601+VS121T-001A
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

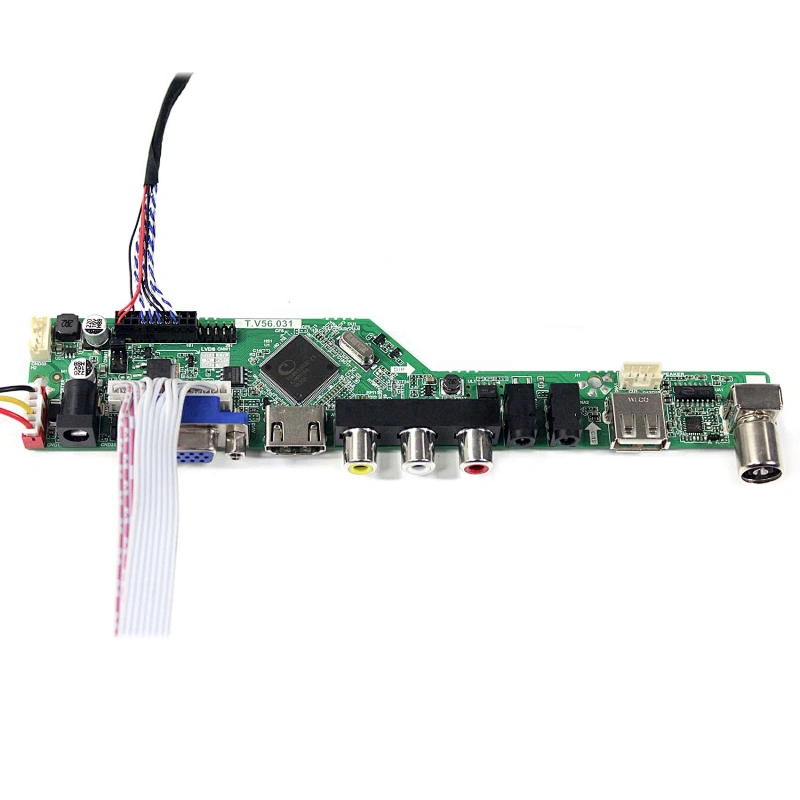

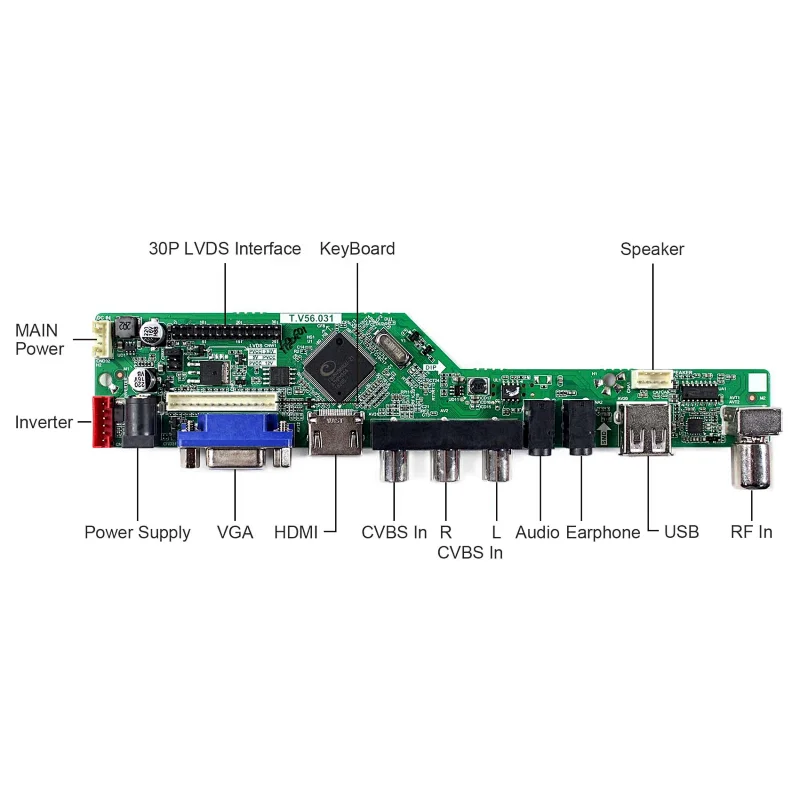

  • LCD Controller Board:
    HDMI VGA AV USB RF LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4HDCP 1.2
    USB Support Video
    AV Compatible With PAL And NTSC
    Video Input: HDMI VGA AV USB RF
    Audio Input: HDMI PC-Audio
    Audio Output: Speaker Connector
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 188mm x 43mm x 17mm
  • 12.1"VS121T-001A 1024X768 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 1024RGB)×768
    Outline Size 261× 198×5 (H×V×D)
    Display Area 246 × 184.5 (H×V)
    Brightness 350 cd/m² (Typ.)
    Contrast Ratio 400:1 (Typ.) (TM)
    Viewing Angle 45/45/15/45 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector
    Backlight WLED
    Input Voltage 3.3V (Typ.)

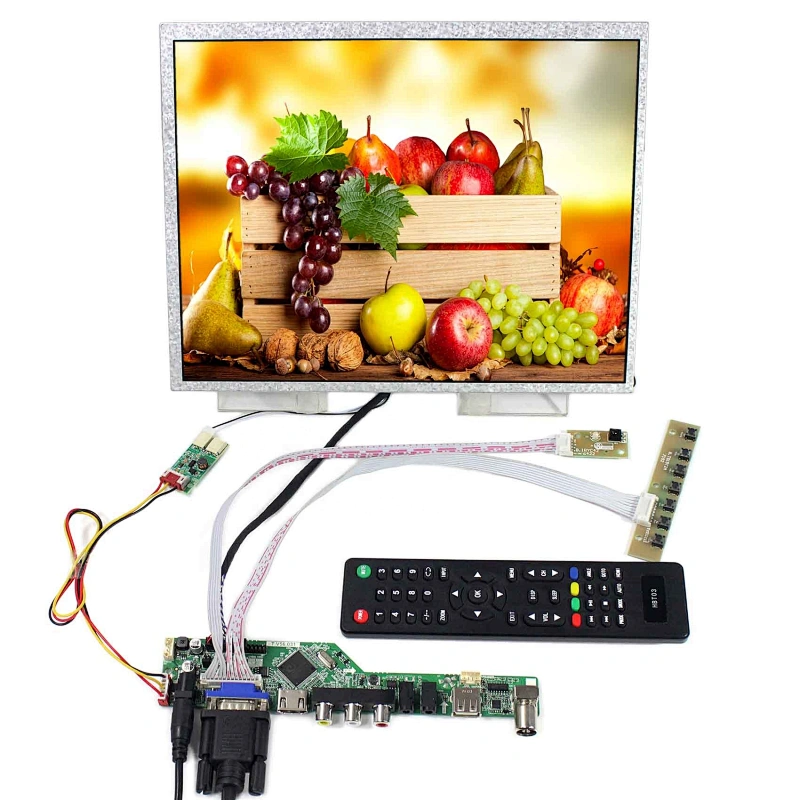

  • Packing list :
    1× HDMI VGA AV USB RF LCD Controller Board T.V56.03
    1× 12.1inch VS121T-001A 1024x768 LCD Screen
    1× LVDS Cable
    1× Inverter Board
    1× Keyboard With Cable
    1× Remote Control (Battery Not included)
