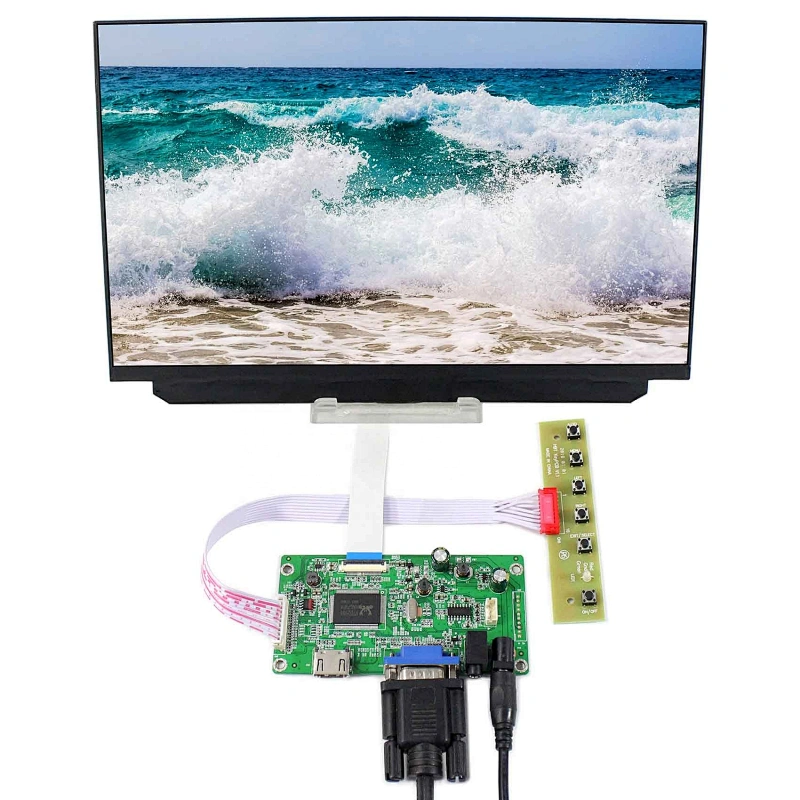

H DMI+VGA LCD Controller Board With 12.5inch 1920x1080 B125HAN02.2 EDP IPS LCD Screen
H DMI+VGA LCD Controller Board With 12.5inch 1920x1080 B125HAN02.2 EDP IPS LCD Screen
H DMI+VGA LCD Controller Board With 12.5inch 1920x1080 B125HAN02.2 EDP IPS LCD Screen
H DMI+VGA LCD Controller Board With 12.5inch 1920x1080 B125HAN02.2 EDP IPS LCD Screen
H DMI+VGA LCD Controller Board With 12.5inch 1920x1080 B125HAN02.2 EDP IPS LCD Screen
H DMI+VGA LCD Controller Board With 12.5inch 1920x1080 B125HAN02.2 EDP IPS LCD Screen
H DMI+VGA LCD Controller Board With 12.5inch 1920x1080 B125HAN02.2 EDP IPS LCD Screen
H DMI+VGA LCD Controller Board With 12.5inch 1920x1080 B125HAN02.2 EDP IPS LCD Screen
H DMI+VGA LCD Controller Board With 12.5inch 1920x1080 B125HAN02.2 EDP IPS LCD Screen
H DMI+VGA LCD Controller Board With 12.5inch 1920x1080 B125HAN02.2 EDP IPS LCD Screen
H DMI+VGA LCD Controller Board With 12.5inch 1920x1080 B125HAN02.2 EDP IPS LCD Screen

H DMI+VGA LCD Controller Board With 12.5inch 1920x1080 B125HAN02.2 EDP IPS LCD Screen

Model NO.
K001759 2556HV-V1+B125HAN02.2
Delivery
EXW or FOB ShenZhen
Minimum order quantity
1
Country of Origin
CHINA
Stock Time
3-7days Days
Quantity:

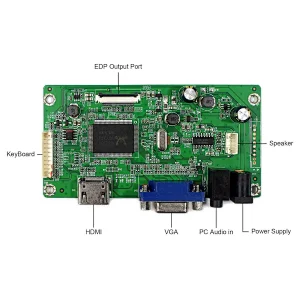

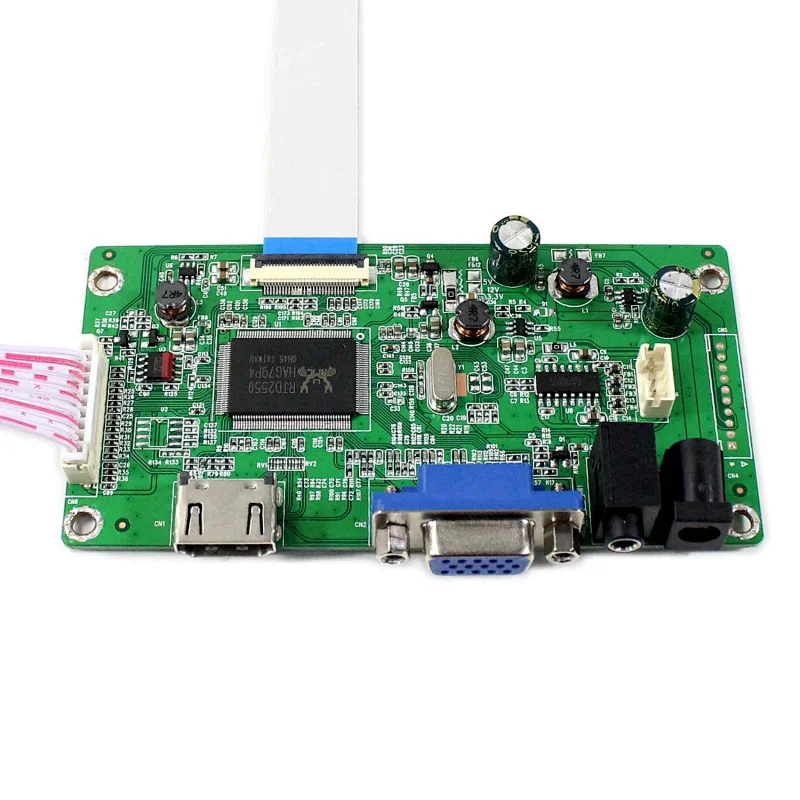

  • LCD Controller Board:
    HDMI VGA Board Work for 30Pin EDP LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <0.3W
    Audio Input: HDMI PC-Audio In
    Audio Output: Speaker
    OSD: Brightness Contrast VOL+ VOL- Language And So On
    Language: English
    Board Size:107mm x 55mm x 16mm
  • 12.5"B125HAN02.2 1920X1080 LCD Screen:
    Display Mode AHAV, Normally Black, Transmissive
    Resolution 1920（RGB)×1080
    Outline Size 282.4 ×179.32×2.5(H×V×D)
    Display Area 276.48× 155.52 (H×V)
    Brightness 300 cd/m² (Typ.)
    Contrast Ratio 700:1 (Typ.) (TM)
    Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]

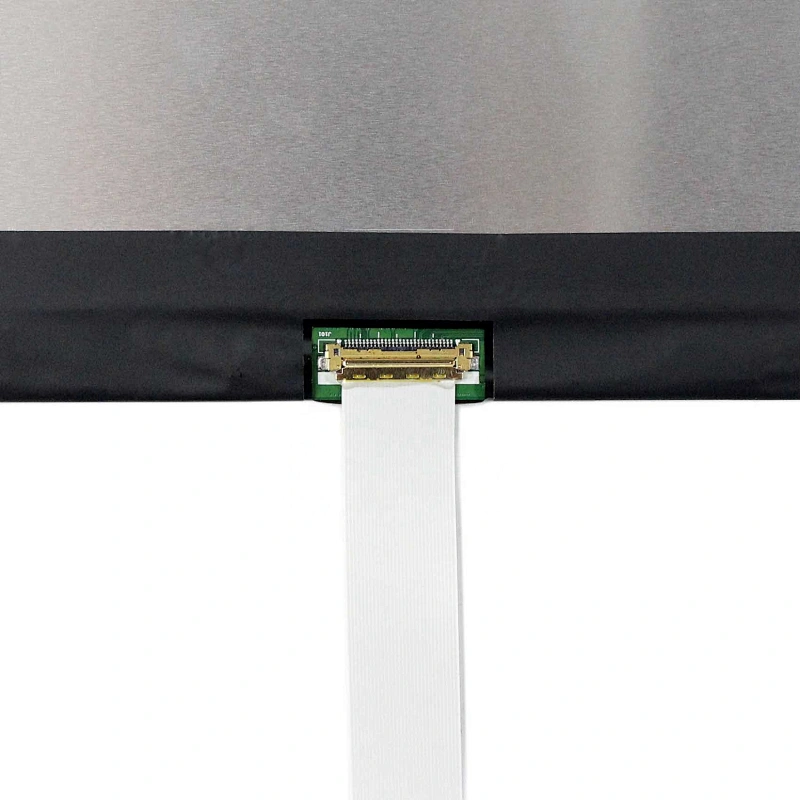

    Signal Interface  eDP (2 Lanes) , 30 pins , Connector
    Backlight WLED
    Input Voltage 3.3V (Typ.)

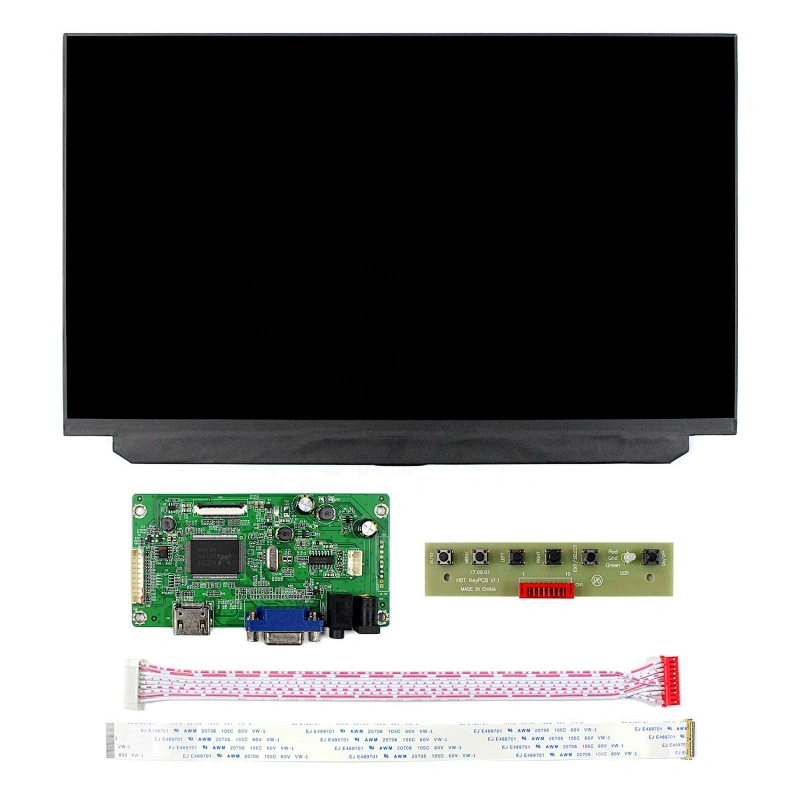

  • Packing list :
    1× HDMI VGA LCD Controller Board VS-RTD2556HV-V1
    1× 12.5inch 1920X1080 LCD Screen
    1× Signal Cable
    1× Keyboard With Cable
