7 inch 1024x600 IPS tft lcd display module with HD MI LCD board work for 50P TTL Interface LCD Screen
7 inch 1024x600 IPS tft lcd display module with HD MI LCD board work for 50P TTL Interface LCD Screen
7 inch 1024x600 IPS tft lcd display module with HD MI LCD board work for 50P TTL Interface LCD Screen
7 inch 1024x600 IPS tft lcd display module with HD MI LCD board work for 50P TTL Interface LCD Screen
7 inch 1024x600 IPS tft lcd display module with HD MI LCD board work for 50P TTL Interface LCD Screen
7 inch 1024x600 IPS tft lcd display module with HD MI LCD board work for 50P TTL Interface LCD Screen
7 inch 1024x600 IPS tft lcd display module with HD MI LCD board work for 50P TTL Interface LCD Screen
7 inch 1024x600 IPS tft lcd display module with HD MI LCD board work for 50P TTL Interface LCD Screen
7 inch 1024x600 IPS tft lcd display module with HD MI LCD board work for 50P TTL Interface LCD Screen

7 inch 1024x600 IPS tft lcd display module with HD MI LCD board work for 50P TTL Interface LCD Screen

Model NO.
K002069 VS-TY2660H-V812+I5024H45C-02
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 set
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

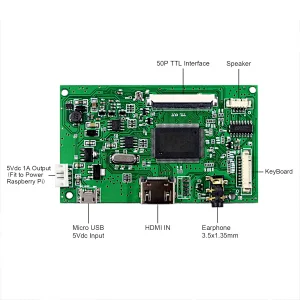

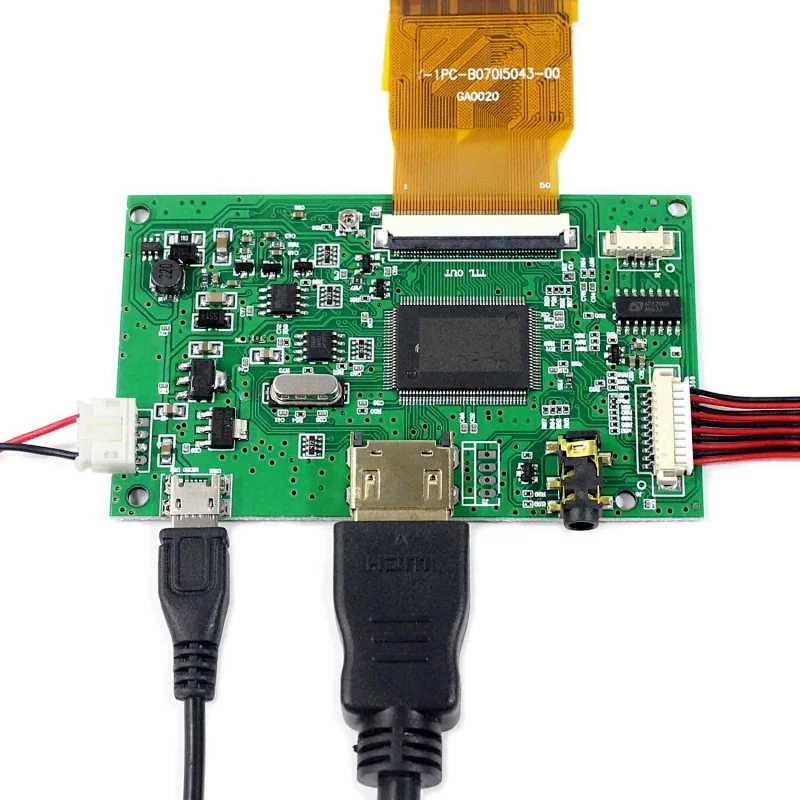

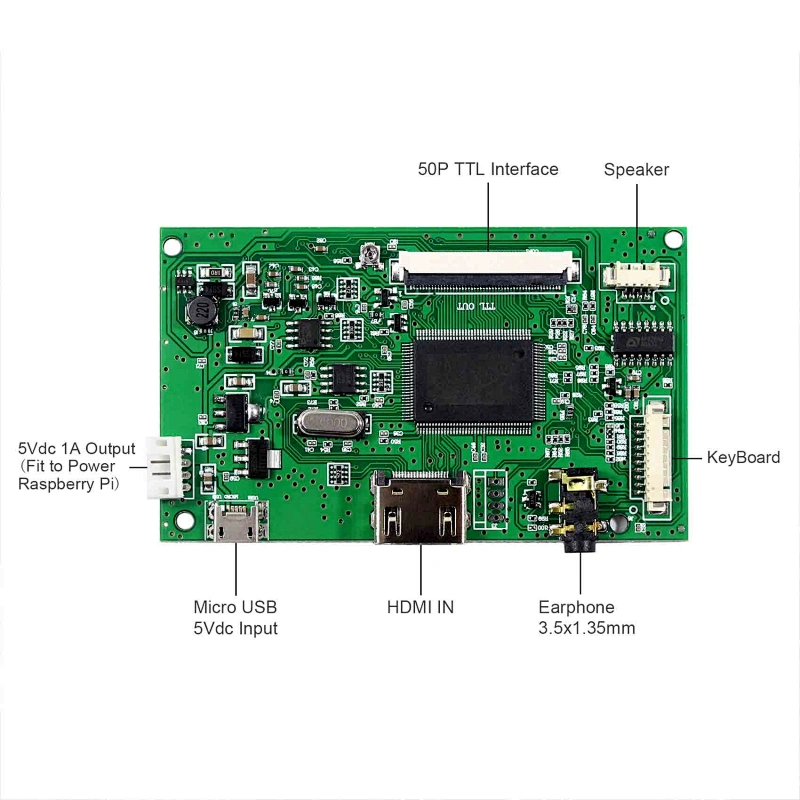

  • LCD Controller Board:
    HDMI LCD Board Work for 50P TTL Interface LCD Screen
    Power Connector: PH2.0 Micro USB
    Input Power Adapter: 5Vdc More than 2A Mirco-USB Connector

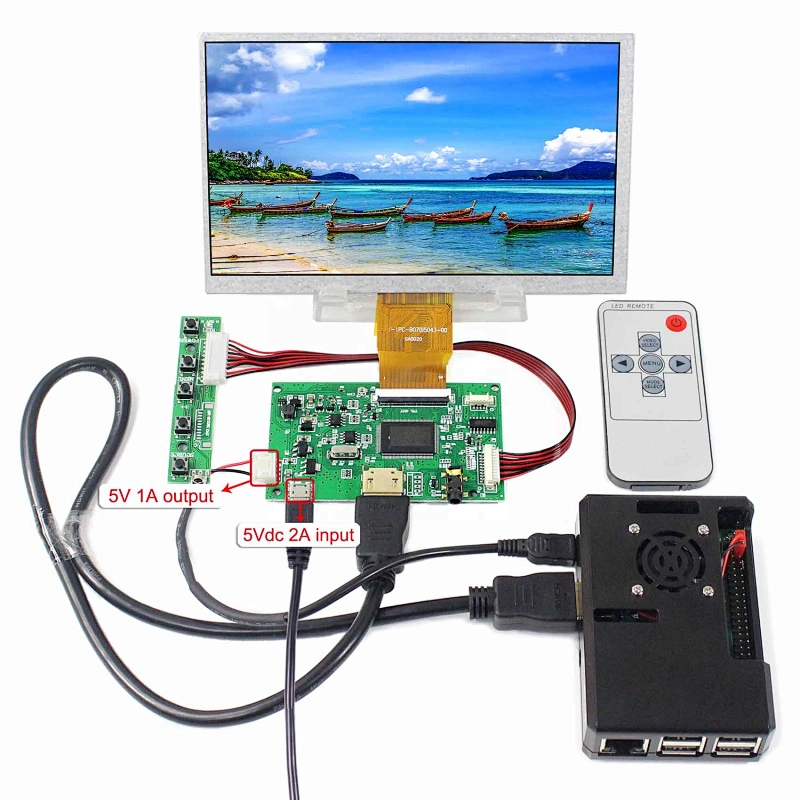

    Support 5V 1A Power For Raspberry Pi PH2.0 Connector
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI
    Audio: Earphone
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 88mm x 53mm x 7mm
  • 7"TB070-I5024H45C-02 1024X600 IPS LCD Screen:
    Display Mode  IPS, Normally Black, Transmissive
    Resolution 1024RGB)×600
    Outline Size 164.9× 100×3.5 (H×V×D)
    Display Area 154.21 × 85.92 (H×V)
    Brightness 400 cd/m² (Typ.)
    Contrast Ratio 800:1 (Typ.) (TM)
    Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
    Backlight  WLED
    Input Voltage  3.3V (Typ.)

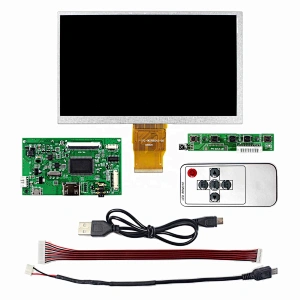

  • Packing list :
    1× HDMI LCD Controller Board VS-TY2660H-V812
    1× 7inch TB070-I5024H45C-02 1024X600 IPS LCD Screen
    1× USB Power Cable
    1× Mirco-USB Power Cable
    1× Keyboard With Cable
