Model NO.
K001389 VS-TY2662-V5+AT070TNA2
Quantity:

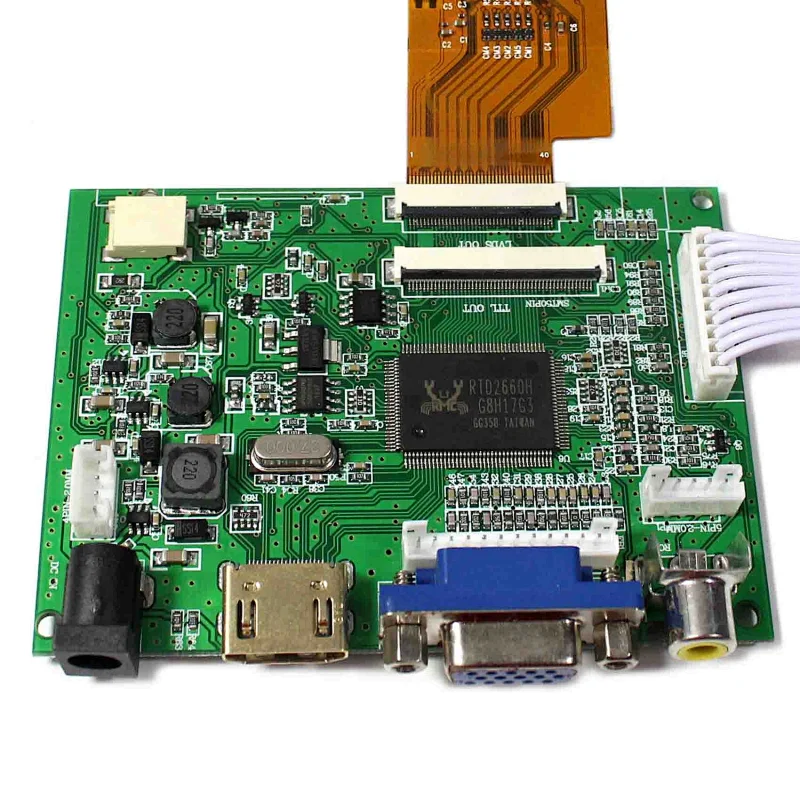

  • LCD Controller Board:
    HDMI VGA 2AV LCD Board Work 8inch 40Pin 1024x768 LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI VGA AV1 AV2
    Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:91mm x 66mm x 12mm
  • 7"AT070TNA2 1024X600 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 1024RGB)×600
    Outline Size 165.75 × 105.39×3.7 (H×V×D)
    Display Area 153.6 × 90(H×V)
    Brightness 250 cd/m² (Typ.)
    Contrast Ratio 700:1 (Typ.) (TM)
    Viewing Angle 75/75/70/75 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)

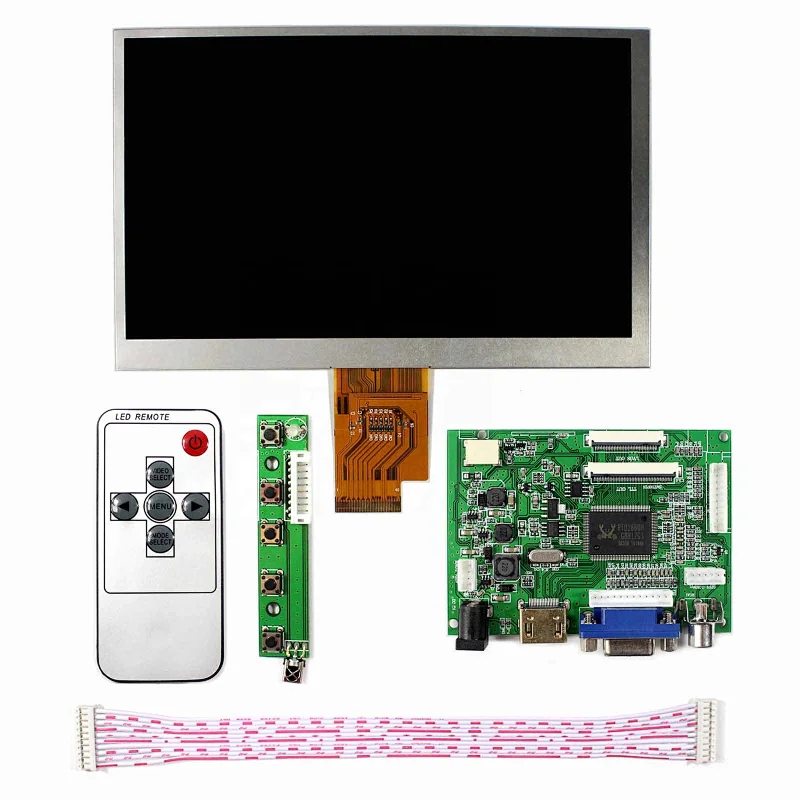

  • Packing list :
    1× HDMI+VGA+2AV LCD Controller Board VS-TY2662-V5
    1× 7inch AT070TNA2 1024X600 LCD Screen
    1× Keyboard With Cable
    1× Remote Control (Battery Not included)
