HD MI VGA 2AV LCD Board Work for LVDS Interface 7inch/10inch 1280x800  LCD Screen
HD MI VGA 2AV LCD Board Work for LVDS Interface 7inch/10inch 1280x800  LCD Screen
HD MI VGA 2AV LCD Board Work for LVDS Interface 7inch/10inch 1280x800  LCD Screen
HD MI VGA 2AV LCD Board Work for LVDS Interface 7inch/10inch 1280x800  LCD Screen
HD MI VGA 2AV LCD Board Work for LVDS Interface 7inch/10inch 1280x800  LCD Screen
HD MI VGA 2AV LCD Board Work for LVDS Interface 7inch/10inch 1280x800  LCD Screen
HD MI VGA 2AV LCD Board Work for LVDS Interface 7inch/10inch 1280x800  LCD Screen
HD MI VGA 2AV LCD Board Work for LVDS Interface 7inch/10inch 1280x800  LCD Screen
HD MI VGA 2AV LCD Board Work for LVDS Interface 7inch/10inch 1280x800  LCD Screen

HD MI VGA 2AV LCD Board Work for LVDS Interface 7inch/10inch 1280x800 LCD Screen

Model NO.
K001690 VS-TY2662-V196+IPEX40Pin
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • LCD Controller Board:
    HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI VGA AV1 AV2
    Audio Input: HDMI
    Audio Output: Speaker (4Pin PH2.0 connector)
    Reversing: Support. It Automatically Switch To AV2 When Connector ACC to 12V
    OSD: Brightness Contrast Auto Language And So On
    Language : English French German Spanish Italian And So On
    Board Size: 91mm x 66mm x 12mm
  • Compatible Work With:
    7inch 1280x800:
    N070ICG-LD1/LD4(40Pin IPEX connector)
    10inch 1280x800:
    B101EW05 LP101WX1 HSD101PWW1 N101ICG-L21 PO101WX01

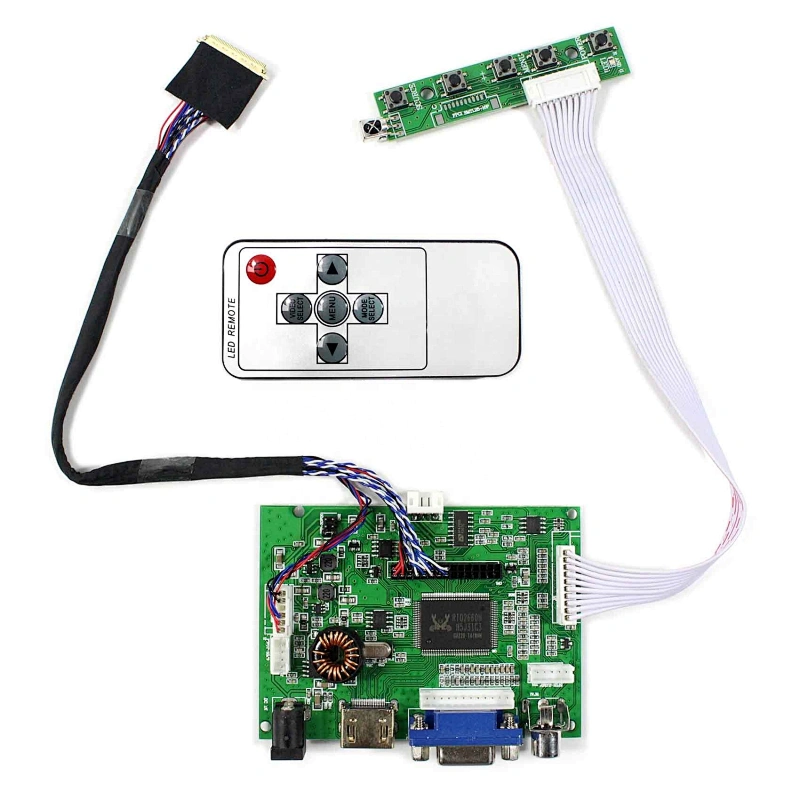

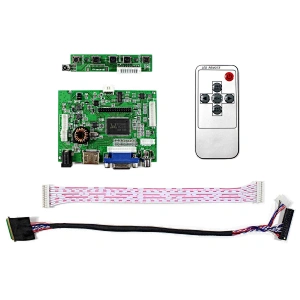

  • Packing list :
    1× HDMI VGA 2AV Audio LCD Controller Board VS-TY2662-V196
    1× 40Pin Signal Cable
    1× Keyboard With Cable
    1× Remote Control (Battery Not included)
