- Type:TFT
- Board Size:188mm x 43mm x 17mm
- Video Input:HD MI VGA AV USB RF
- Audio Input:HD MI PC-Audio
- Audio Output:Speaker Connector
- Display Mode:AAS, Normally Black, Transmissive
- Resolution:1920RGB)x1080
- Contrast Ratio:700:1 (Typ.) (TM)
- Brightness:350 cd/m2 (Typ.)
- Signal Interface:eDP (2 Lanes) , Connector , 30 pins
- Place of Origin:CN;GUA
- Type:TFT with Board
- Display Size:11.6inch
- Model Number:K001557 VST056+N116HSE-EJ1
- Brand Name:VS
Products Show
Product Description

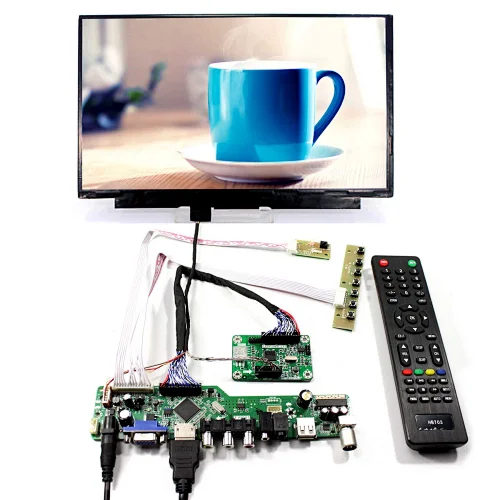

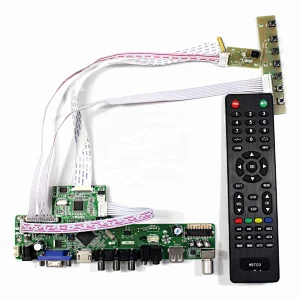

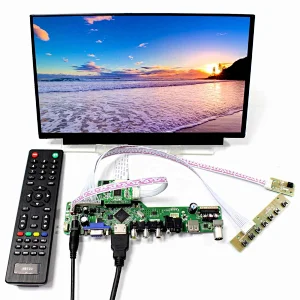

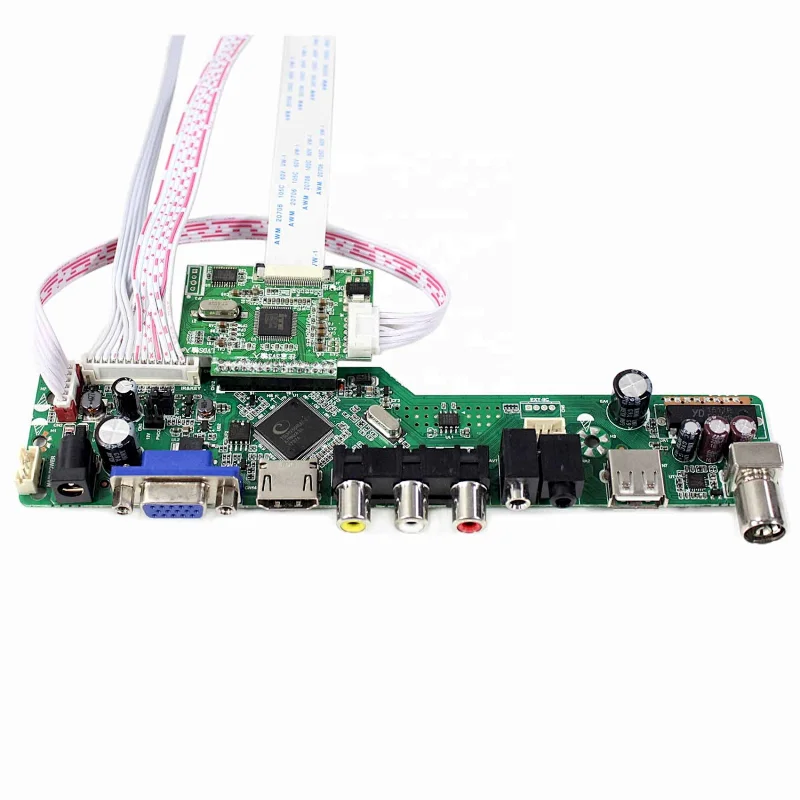

HD MI VGA AV USB RF LCD Controller Board T.V56.03
11.6inch N116HSE-EJ1/EA1 1920X1080 IPS LCD Screen
Product name: | HD MI VGA AV USB RF LCD Controller Board T.V56.03 | ||||||
Details: | HD MI VGAAV USB RF LCD Board Work for LVDS Interface LCD Screen Input Power Adapter:12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <1W HD MI Port Support Transform Audio Compatible With HD MI 1.3/1.4，HDCP 1.2 USB Support Video AV Compatible With PAL And NTSC Video Input: HD MI VGA AV USB RF Audio Input: HD MI PC-Audio Audio Output: Speaker Connector OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size:188mm x 43mm x 17mm | ||||||
Product Name: | 11.6inch N116HSE-EJ1/EA1 1920X1080 IPS LCD Screen | ||||||
Details: | Display Mode AAS, Normally Black, Transmissive Resolution 1920RGB)×1080 Outline Size 268 × 156.9 × 2.5 (H×V×D) Display Area 258.32 × 146.18 (H×V) Brightness 350 cd/m² (Typ.) Contrast Ratio 700:1 (Typ.) (TM) Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface eDP (2 Lanes) , Connector , 30 pins Backlight WLED Input Voltage 3.3V (Typ.) | ||||||
Packing list: | 1× HD MI VGA AV USB RF LCD Controller Board T.V56.03 1×11.6inch N116HSE-EJ1/EA1 1920X1080 IPS LCD Screen 1× Signal Cable 1× Keyboard With Cable 1× Remote Control(Battery Not included) | ||||||
