HDMI Board Work for 17.3" LCD Screen N173HCE-E31 30Pin EDP LCD Screen

Model NO.
RTD2556H+17" LCD(K001486)
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Place of Origin:CN;GUA
  • Type:COB
  • Brand Name:VS
  • Model Number:RTD2556H+17"LCD(K001486)
  • Resolution:1920RGB)x1080
  • Size:17.3inch
  • Interface:LVDS
  • Panel Type:Type: TFT

HDMI Board Work for 17.3"LCD Screen N173HCE-E31 30Pin EDP LCD Screen

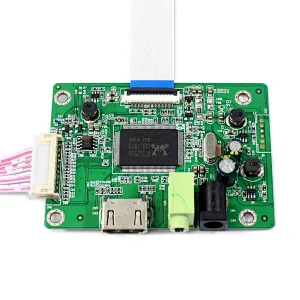

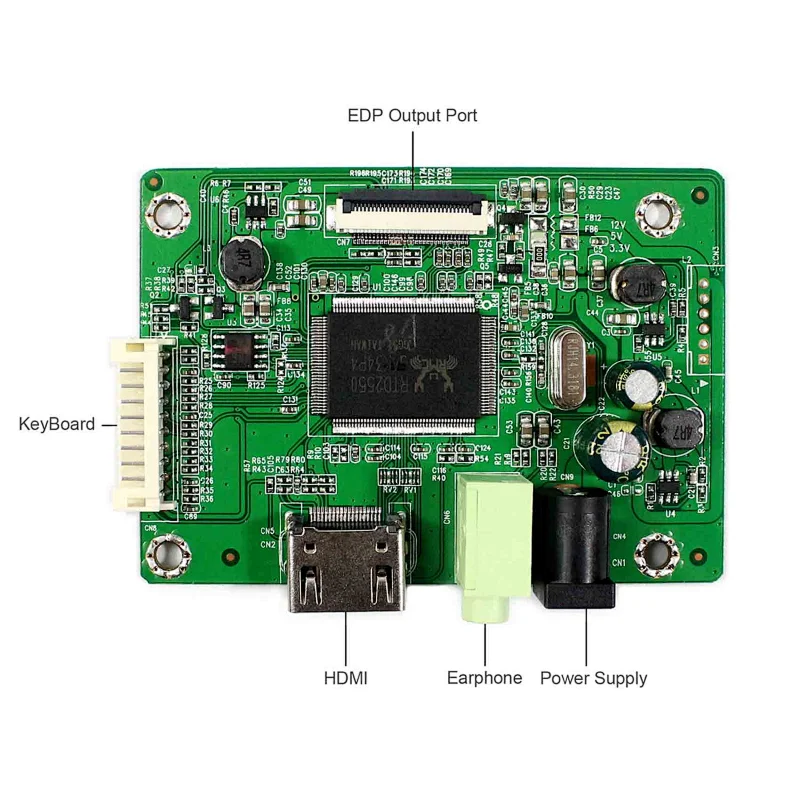

LCD Controller Board:

HDMI Board Work for 30Pin EDP LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <0.3W

Audio Input: HDMI

Audio Output: Earphone

OSD: Brightness Contrast VOL+ VOL- Language And So On

Language: English

Board Size: 77mm x 55mm x 16mm

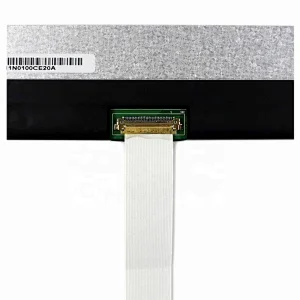

17.3"LCD Screen N173HCE-E31:

Display Mode AHVA, Normally Black, Transmissive

Resolution 1920RGB)×1080

Outline Size 399.5(W)×230.45(H) ×4(D) mm

Display Area 381.88 (W)×214.81 (H) mm

Brightness 300 cd/m² (Typ.)

Contrast Ratio 700:1 (Typ.) (TM)

Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface eDP (2 Lanes) , Connector , 30 pins

Backlight WLED

Input Voltage 3.3V (Typ.)

Product Description

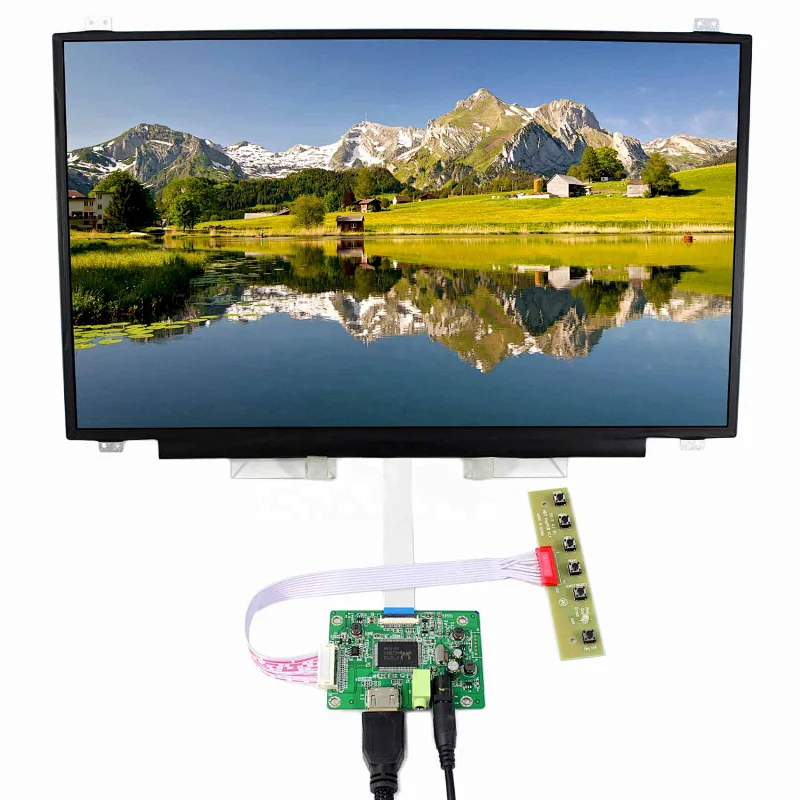

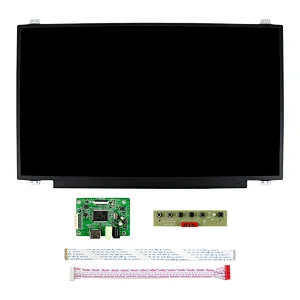

Picture as below:


Packaging & Shipping

We are via DHL/UPS/EMS/FedEx/TNT, HK POST

Our Services

1 year warranty after sale the goods. Some technical issue can solved by wire.

Company Information

VS DISPLAY TECHNOLOGY(HONGKONG) LTDis a Hi-tech manufacturer of liquid crystal displayer.It is establishiment in 1998.The headquarters is located in Shenzhen.

The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications : in telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA), mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.

VS DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.

All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.

Fabrication base covers 4,000sq meters. 2 COB lines, 1 COG lines, 1 TAB lines

QC system: ISO9001


FAQ

EXW SHENZHEN, FOB SHENZHEN

We accept payment by TT, Paypal or WU
