HD MI LCD Controller Board 9.7 inch 1536X2048 LP097QX2 LTL097QL02 IPS LCD Screen

Model NO.
K001845 VS-RTD09705-V1+ 9.7 LP097QX1
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

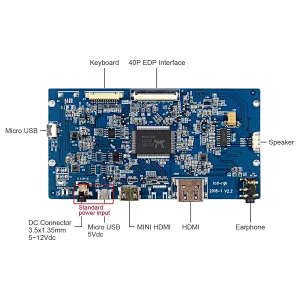

  • LCD Controller Board:
    HDMI LCD Board Work for 9.7inch eDP Interface LCD Screen
    Input Power Supply: DC Connector 3.5mmx1.35mm 5~12Vdc Mirco USB 5Vdc
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: Mini HDMI HDMI Version 1.4 Mini HDMI
    Audio Output: Earphone Support Speaker 4ohm 2W or 8ohm 1.5W
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 120mm x 62.5mm x 5mm
  • 9.7"1536X2048 LCD Screen:
    Display Mode IPS, Normally Black, Transmissive
    Resolution 1536RGB)×2048
    Outline Size 160.3× 208.93×5 (H×V×D)
    Display Area 147.456 ×196.608 (H×V)
    Brightness 450 cd/m² (Typ.)
    Contrast Ratio 1000:1 (Typ.) (TM)
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface  42pins eDP (4 Lanes) , Connector
    Backlight  WLED
    Input Voltage  3.3V (Typ.)

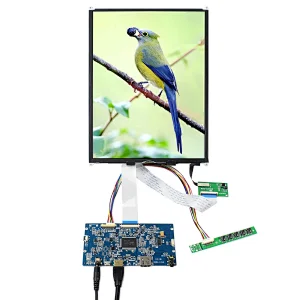

  • Packing list :

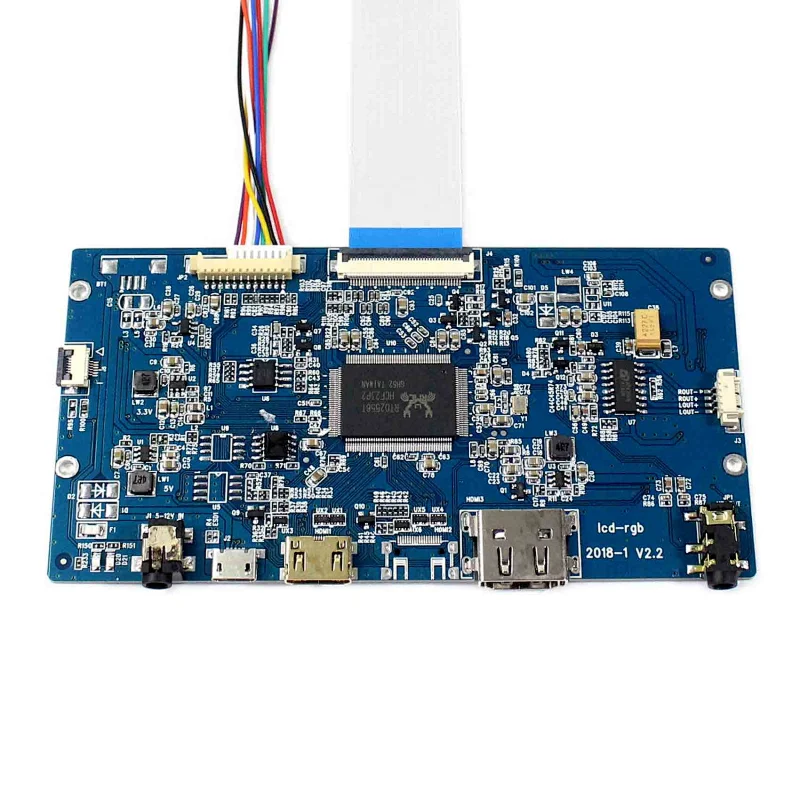

    1× HDMI LCD Controller Board VS-RTD09705-V1
    1× 9.7inch 1536x2048 IPS LCD Screen (One of LP097QX2 LTL097QL02)

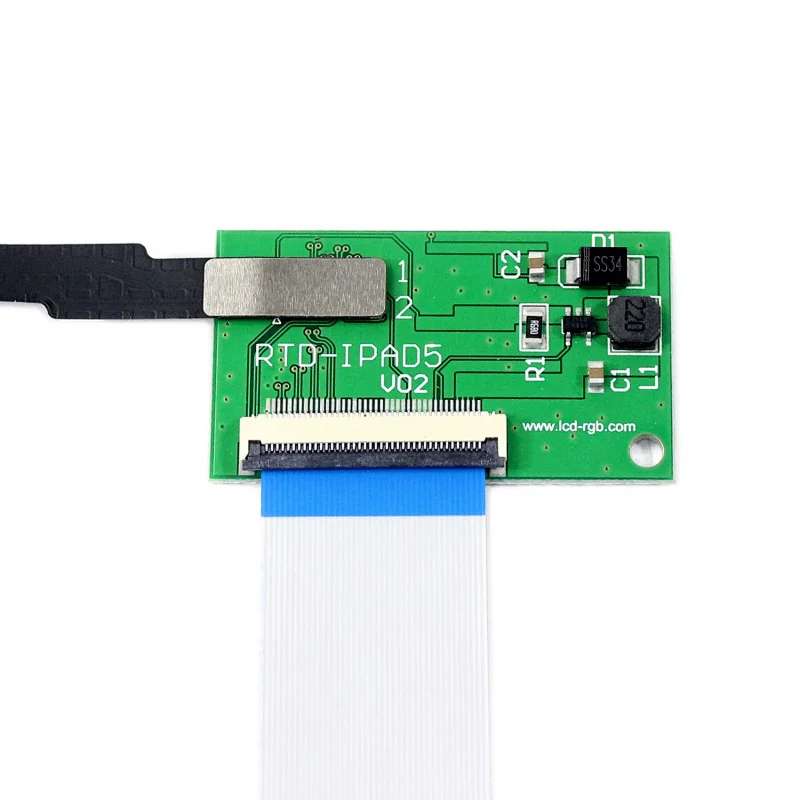

    1× Converter Board
    1× Signal Cable

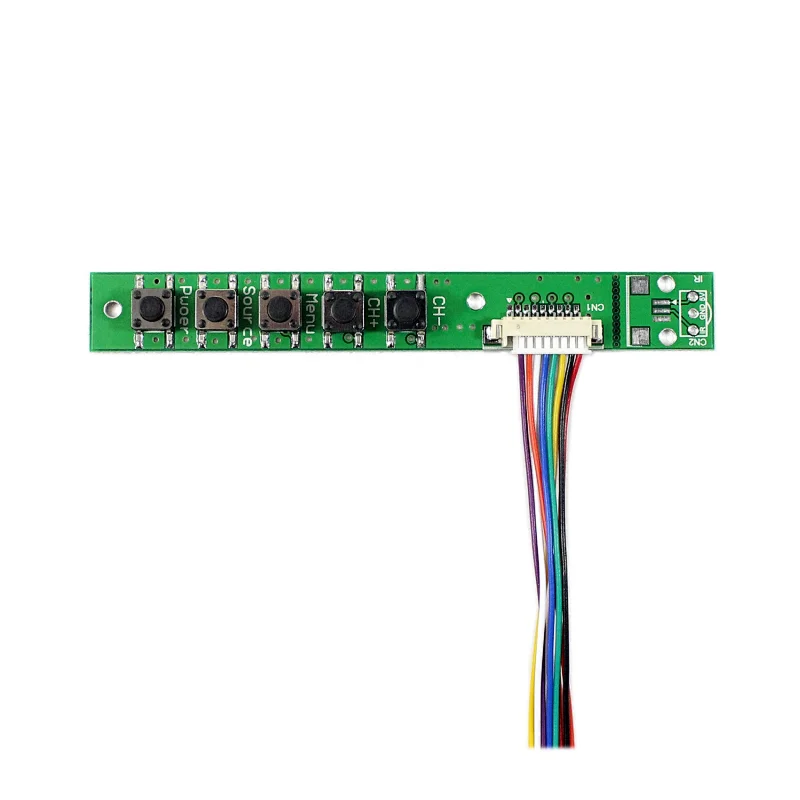

    1× Keyboard With Cable
