HDMI LCD Controller Board VS-TY2660H-V1 with 8inch ZJ080NA-08A 1024X600 LCD Screen+Remote
HDMI LCD Controller Board VS-TY2660H-V1 with 8inch ZJ080NA-08A 1024X600 LCD Screen+Remote
HDMI LCD Controller Board VS-TY2660H-V1 with 8inch ZJ080NA-08A 1024X600 LCD Screen+Remote
HDMI LCD Controller Board VS-TY2660H-V1 with 8inch ZJ080NA-08A 1024X600 LCD Screen+Remote
HDMI LCD Controller Board VS-TY2660H-V1 with 8inch ZJ080NA-08A 1024X600 LCD Screen+Remote
HDMI LCD Controller Board VS-TY2660H-V1 with 8inch ZJ080NA-08A 1024X600 LCD Screen+Remote
HDMI LCD Controller Board VS-TY2660H-V1 with 8inch ZJ080NA-08A 1024X600 LCD Screen+Remote
HDMI LCD Controller Board VS-TY2660H-V1 with 8inch ZJ080NA-08A 1024X600 LCD Screen+Remote
HDMI LCD Controller Board VS-TY2660H-V1 with 8inch ZJ080NA-08A 1024X600 LCD Screen+Remote
HDMI LCD Controller Board VS-TY2660H-V1 with 8inch ZJ080NA-08A 1024X600 LCD Screen+Remote
HDMI LCD Controller Board VS-TY2660H-V1 with 8inch ZJ080NA-08A 1024X600 LCD Screen+Remote
HDMI LCD Controller Board VS-TY2660H-V1 with 8inch ZJ080NA-08A 1024X600 LCD Screen+Remote
HDMI LCD Controller Board VS-TY2660H-V1 with 8inch ZJ080NA-08A 1024X600 LCD Screen+Remote

HDMI LCD Controller Board VS-TY2660H-V1 with 8inch ZJ080NA-08A 1024X600 LCD Screen+Remote

Model NO.
K001116 VS-TY2660H-V1+VS-TCON40-V1+ZJ080NA-08A
Quantity:

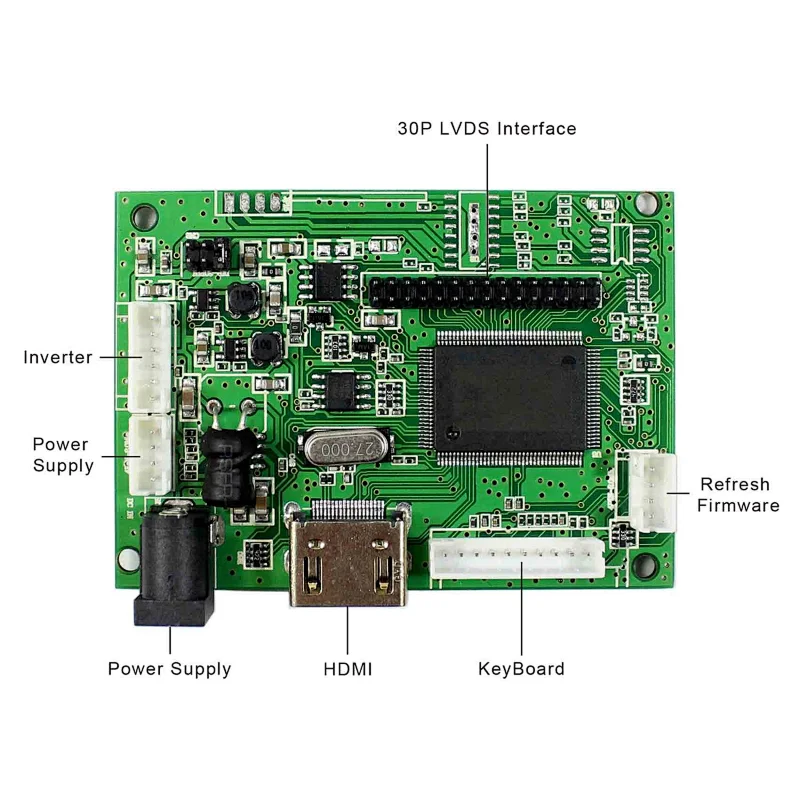

  • LCD Controller Board:
    HDMI LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:74mm x 53mm x 12mm
  • 8"ZJ080NA-08A 1024X600 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 1024RGB)×600
    Outline Size 192.8 × 116.9×6.7 (H×V×D)
    Display Area 176.64 × 99.36(H×V)
    Brightness 500 cd/m² (Typ.)
    Contrast Ratio 700:1 (Typ.) (TM)
    Viewing Angle 75/75/70/75 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)

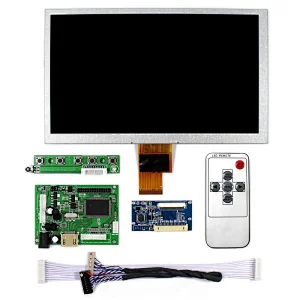

  • Packing list :

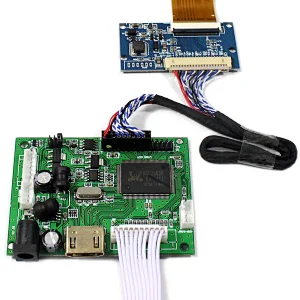

    1× HDMI LCD Controller Board VS-TY2660H-V1
    1× 8inch ZJ080NA-08A 1024X600 LCD Screen
    1× Tcon Board VS-TCON40-V1
    1× Keyboard With Cable
    1× Remote Control(Battery Not included)
