HDMI LCD Controller Board VS-TY2660H-V1with 8inch EJ080NA-04C 1024X768 LCD Screen+Remote
HDMI LCD Controller Board VS-TY2660H-V1with 8inch EJ080NA-04C 1024X768 LCD Screen+Remote
HDMI LCD Controller Board VS-TY2660H-V1with 8inch EJ080NA-04C 1024X768 LCD Screen+Remote
HDMI LCD Controller Board VS-TY2660H-V1with 8inch EJ080NA-04C 1024X768 LCD Screen+Remote
HDMI LCD Controller Board VS-TY2660H-V1with 8inch EJ080NA-04C 1024X768 LCD Screen+Remote
HDMI LCD Controller Board VS-TY2660H-V1with 8inch EJ080NA-04C 1024X768 LCD Screen+Remote
HDMI LCD Controller Board VS-TY2660H-V1with 8inch EJ080NA-04C 1024X768 LCD Screen+Remote
HDMI LCD Controller Board VS-TY2660H-V1with 8inch EJ080NA-04C 1024X768 LCD Screen+Remote
HDMI LCD Controller Board VS-TY2660H-V1with 8inch EJ080NA-04C 1024X768 LCD Screen+Remote

HDMI LCD Controller Board VS-TY2660H-V1with 8inch EJ080NA-04C 1024X768 LCD Screen+Remote

Model NO.
K001115 VS-TY2660H-V1+VS-TCON40-V1+EJ080NA-04C
Quantity:

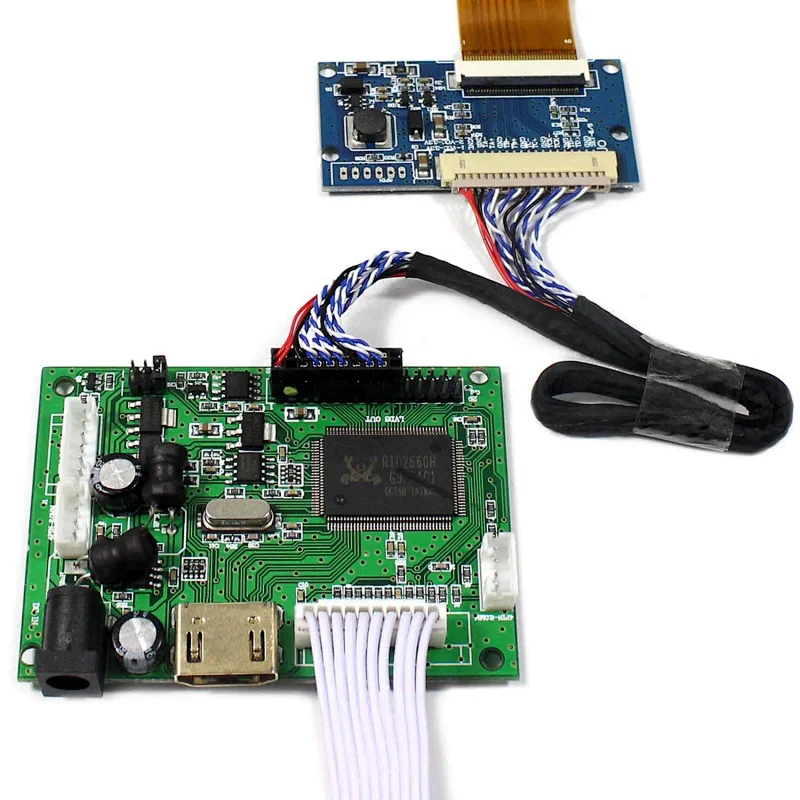

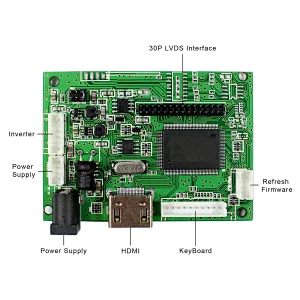

  • LCD Controller Board:
    HDMI LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:74mm x 53mm x 12mm
  • 8"EJ080NA-04C 1024X768 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 1024(RGB)×768
    Outline Size 183 × 141×3.7 (H×V×D)
    Display Area 162× 121.5(H×V)
    Brightness 250 cd/m² (Typ.)
    Contrast Ratio 700:1 (Typ.) (TM)
    Viewing Angle 75/75/75/75 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)

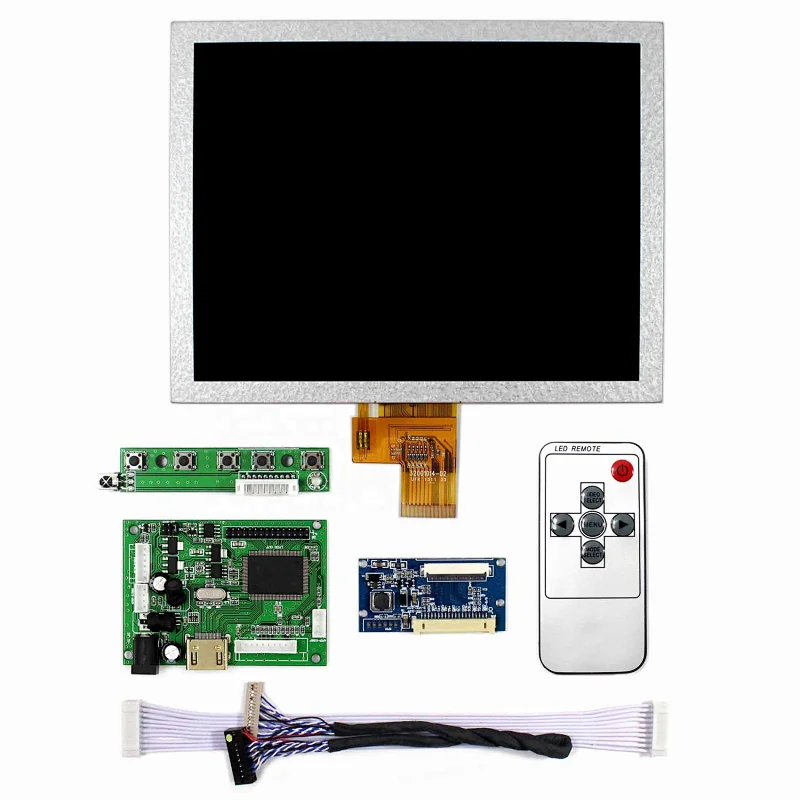

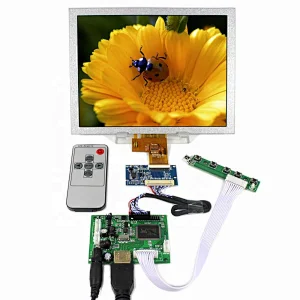

  • Packing list :
    1× HDMI LCD Controller Board VS-TY2660H-V1
    1× 8inch EJ080NA-04C 1024X768 LCD Screen
    1× Tcon Board VS-TCON40-V1
    1× Keyboard With Cable
    1× Remote Control(Battery Not included)
