Model NO.
K001896 VS-TY2660H-V1+G065VN01-V2
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

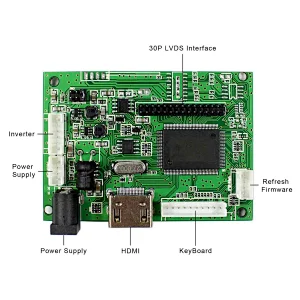

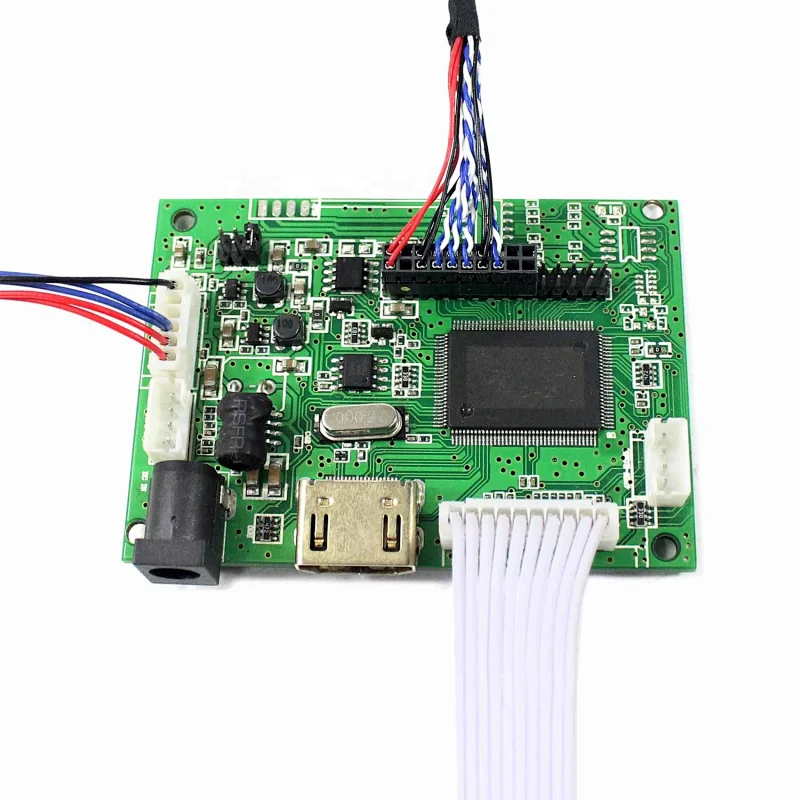

  • LCD Controller Board:
    HDMI LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 74mm x 53mm x 12mm

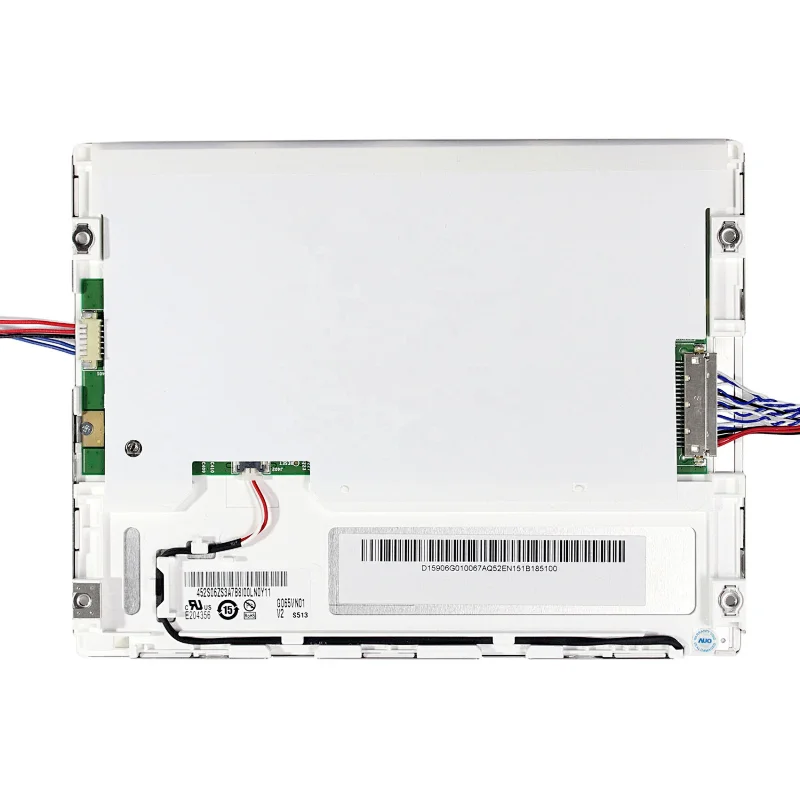

  • 6.5"G065VN01 V2 640X480 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 640RGB)×480
    Outline Size 153 × 118×11.2 (H×V×D)
    Display Area 132.48× 99.36 (H×V)
    Brightness 800 cd/m² (Typ.)
    Contrast Ratio 600:1 (Typ.) (TM)
    Viewing Angle 80/80/70/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface 20 pins   LVDS (1 ch, 6/8-bit) , Connector
    Backlight  WLED
    Input Voltage 3.3V (Typ.)

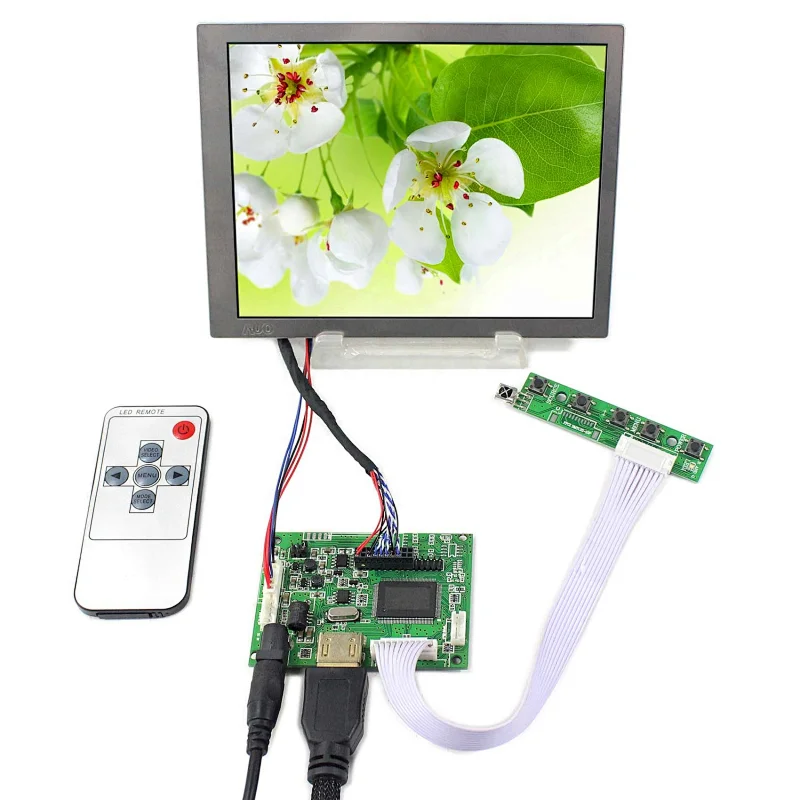

  • Packing list :
    1× HDMI LCD Controller Board VS-TY2660H-V1
    1× 6.5inch G065VN01 V2 640X480 LCD Screen
    1× LVDS Cable
    1× Backlight Cable
    1× Keyboard With Cable
    1× Remote Control (Battery Not included)
