HDMI Mini LCD Controller Board For 1920x1080 11.6" 13.3" 14" 15.6" 17.3" 30P eDP LCD

Model NO.
K001637 VS-RTD2556HM-V1
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

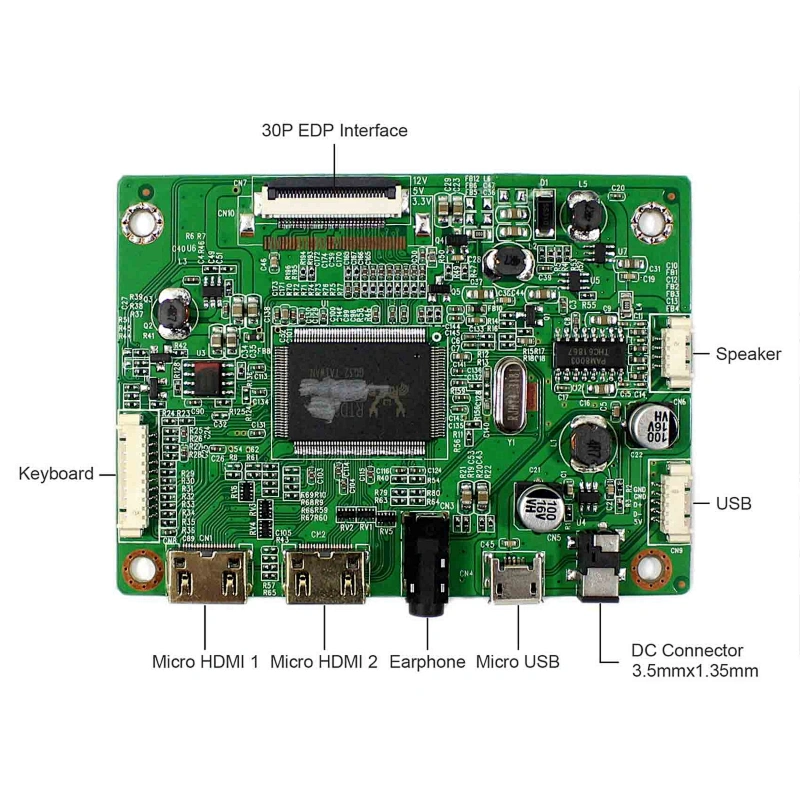

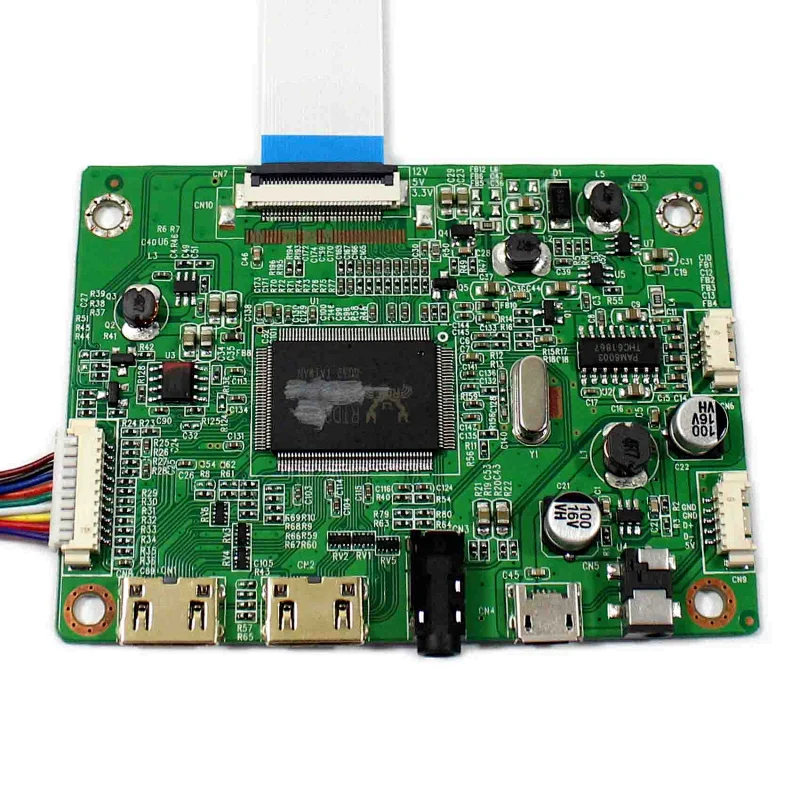

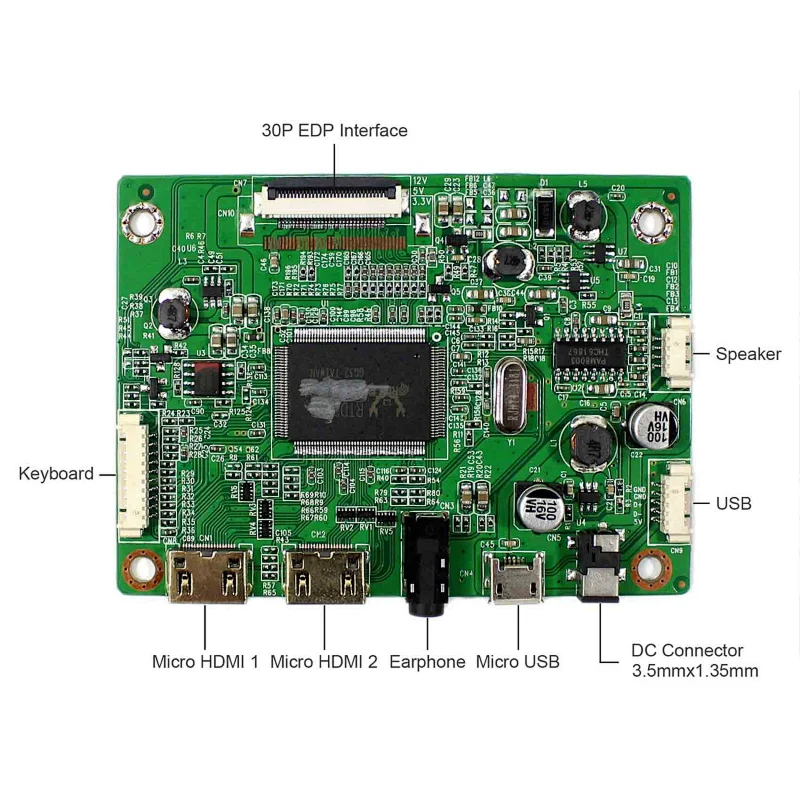

  • LCD Controller Board:
    HDMI Board Work for 30Pin EDP LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <0.3W
    Audio Input: 2HDMI Mini
    Audio Output: Earphone
    OSD: Brightness Contrast VOL+ VOL- Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:82mm x 60mm x 5mm
  • Compatible Work With:
    11.6inch 1920x1080:
    N116HSE-EA1 N116HSE-EA2 N116HSE-EJ1 N116HSE-EB1  N116HSE-EBC N116HSE-EAC

    13.3inch 1920x1080:
    N133HSE-EA1 N133HSE-EA3 N133HSE-EB1 N133HSE-EB3

    14inch 1920x1080:
    B140HAN01.0 B140HAN01.1 B140HAN01.2 B140HAN01.3

    15.6inch 1920x1080:
    B156HAN01.1 B156HAN01.2 B156HTN03.0 LP156WF4-SP N156HGE-EA1 NV156FHM-N31 NV156FHM-N41 LTN156HL01 LTN156HL06-C01 LTN156HL07-401 LTN156HL09-401  LTN156HL02-201

    17.3inch 1920x1080:
    N173HCE-E31 N173HGE-E11 N173HGE-E21 B173HTN01.0 B173HTN01.1 LP173WF4-SPD1 LP173WF4-SPF1 LP173WF4-SPF2 LP173WF4-SPF3 LP173WF4-SPF4 LTN173HL01-401

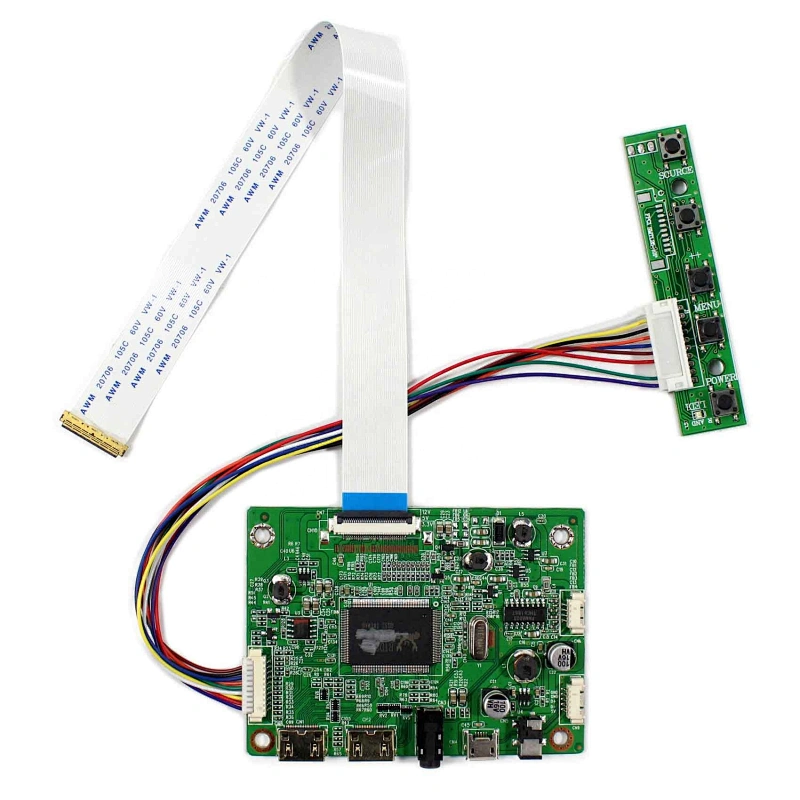

  • Packing list :
    1× 2 HDMI Mini LCD Controller VS-RTD2556HM-V1
    1× Signal Cable
    1× Keyboard With Cabl
