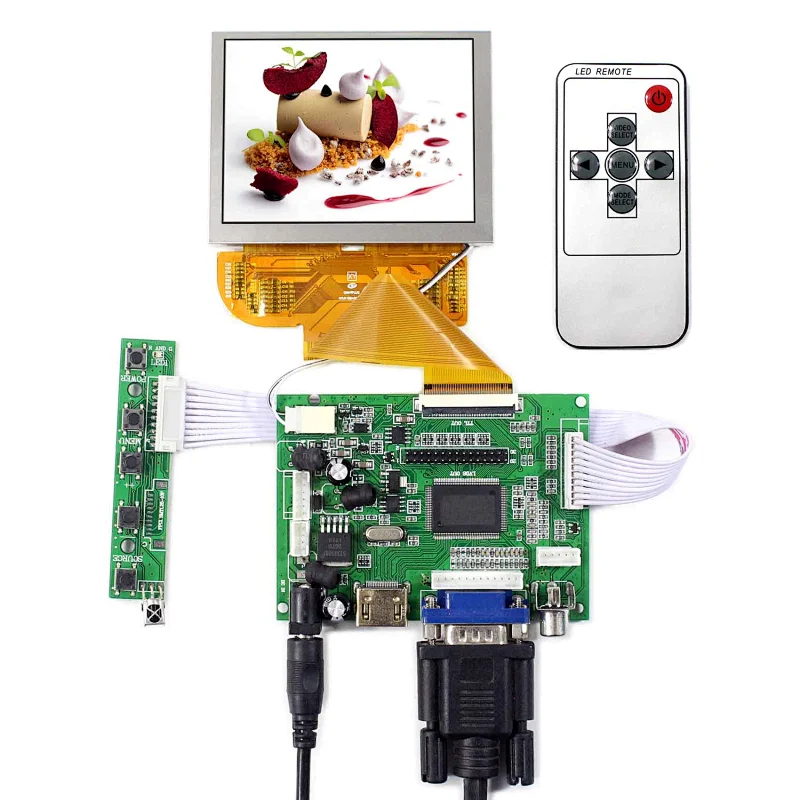

HDMI+VGA+2AV 50PIN LCD control Board With 3.5inch 800x600 lcd panel

Model NO.
K001851 VS-TY2662-V1+VS035SD1
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Supply Ability:
5000 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

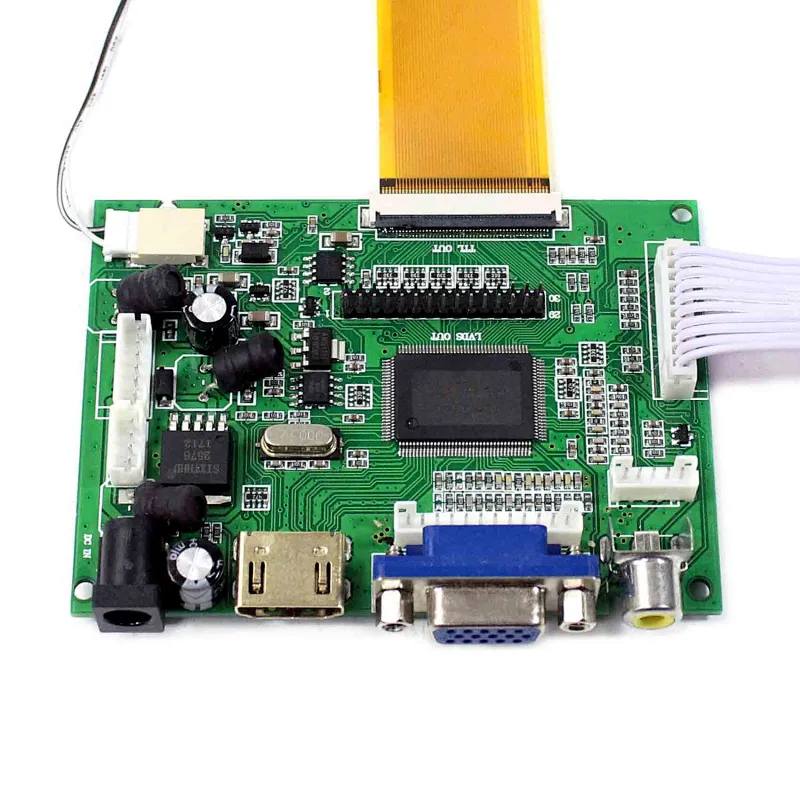

  • LCD Controller Board:
    HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
    50Pin TTL Connector for 3.5inch~10.1inch LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI VGA AV1 AV2
    Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 91mm x 66mm x 12mm
  • 3.5"VS035SD1 800X600 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 800RGB)×600
    Outline Size 84.03 × 65.24×3 (H×V×D)
    Display Area 71.28 × 53.46 (H×V)
    Brightness 400 cd/m² (Typ.)
    Contrast Ratio 600:1 (Typ.) (TM)
    Viewing Angle 50/65/65/65 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface TTL (1 ch, 6-bit) , FPC , 50 pins
    Backlight  WLED
    Input Voltage  3.3V (Typ.)

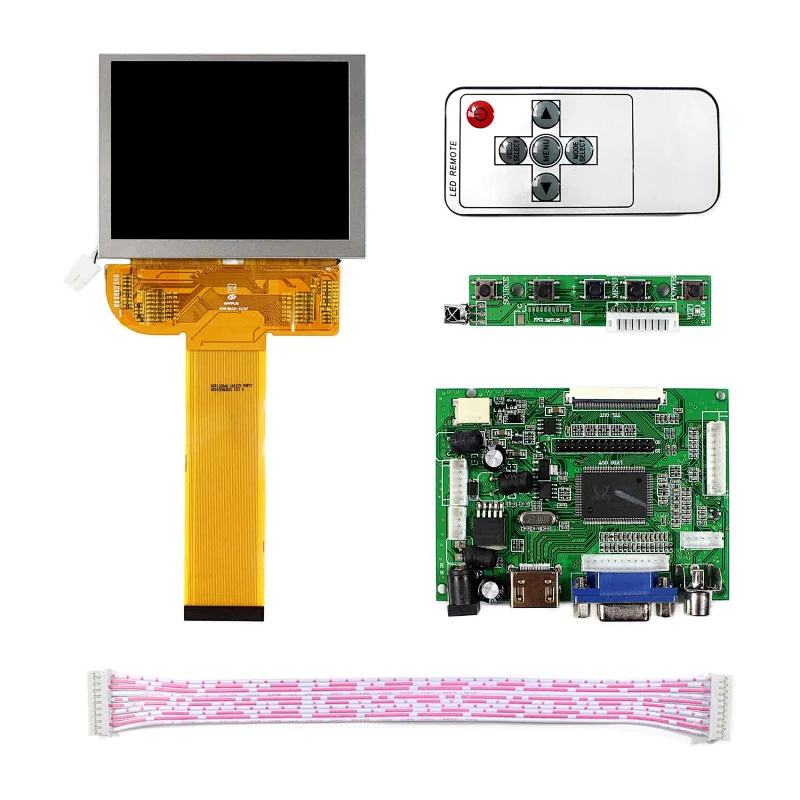

  • Packing list :
    1× HDMI VGA+2AV LCD Controller Board VS-TY2662-V1
    1× 3.5inch VS035SD1 800X600 LCD Screen
    1× Power Supply Cable
    1× Keyboard With Cable
    1× Remote Control (Battery Not included)
