HDMI VGA 2AV LCD Board Work 8inch 40Pin 1024x768 LCD Screen with touch panel
HDMI VGA 2AV LCD Board Work 8inch 40Pin 1024x768 LCD Screen with touch panel
HDMI VGA 2AV LCD Board Work 8inch 40Pin 1024x768 LCD Screen with touch panel
HDMI VGA 2AV LCD Board Work 8inch 40Pin 1024x768 LCD Screen with touch panel
HDMI VGA 2AV LCD Board Work 8inch 40Pin 1024x768 LCD Screen with touch panel
HDMI VGA 2AV LCD Board Work 8inch 40Pin 1024x768 LCD Screen with touch panel
HDMI VGA 2AV LCD Board Work 8inch 40Pin 1024x768 LCD Screen with touch panel
HDMI VGA 2AV LCD Board Work 8inch 40Pin 1024x768 LCD Screen with touch panel
HDMI VGA 2AV LCD Board Work 8inch 40Pin 1024x768 LCD Screen with touch panel
HDMI VGA 2AV LCD Board Work 8inch 40Pin 1024x768 LCD Screen with touch panel
HDMI VGA 2AV LCD Board Work 8inch 40Pin 1024x768 LCD Screen with touch panel
HDMI VGA 2AV LCD Board Work 8inch 40Pin 1024x768 LCD Screen with touch panel
HDMI VGA 2AV LCD Board Work 8inch 40Pin 1024x768 LCD Screen with touch panel

HDMI VGA 2AV LCD Board Work 8inch 40Pin 1024x768 LCD Screen with touch panel

Model NO.
K001392 VS-TY2662-V5+EJ080NA-04C+TP
Quantity:

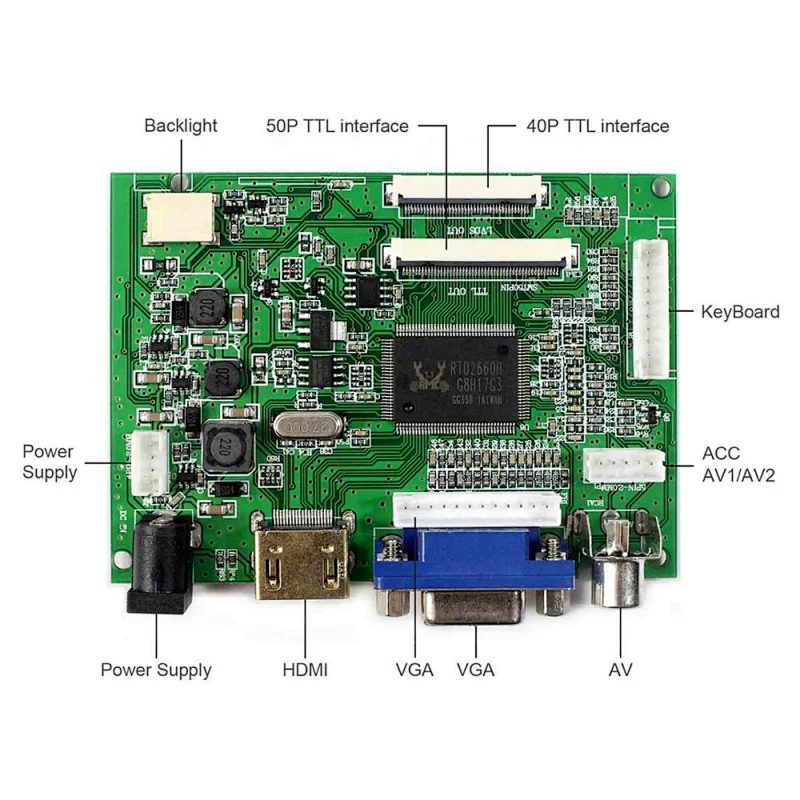

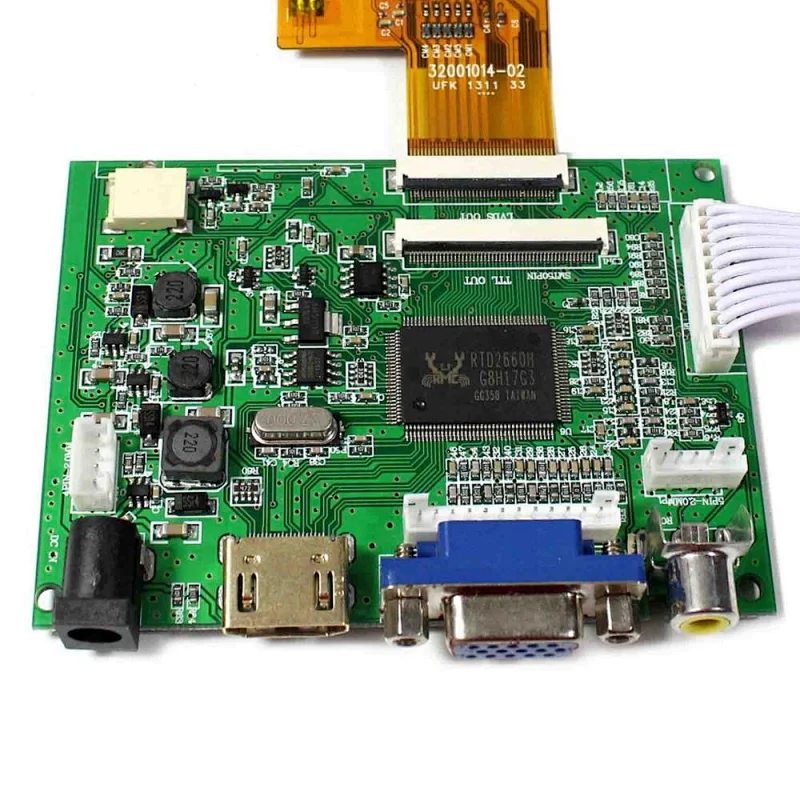

  • LCD Controller Board:
    HDMI VGA 2AV LCD Board Work 8inch 40Pin 1024x768 LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI VGA AV1 AV2
    Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:v91mm x 66mm x 12mm
  • 8"EJ080NA-04C 1024X768 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 1024RGB)×768
    Outline Size 183 × 141×3.7 (H×V×D)
    Display Area 162× 121.5(H×V)
    Brightness 250 cd/m² (Typ.)
    Contrast Ratio 700:1 (Typ.) (TM)
    Viewing Angle 75/75/75/75 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)

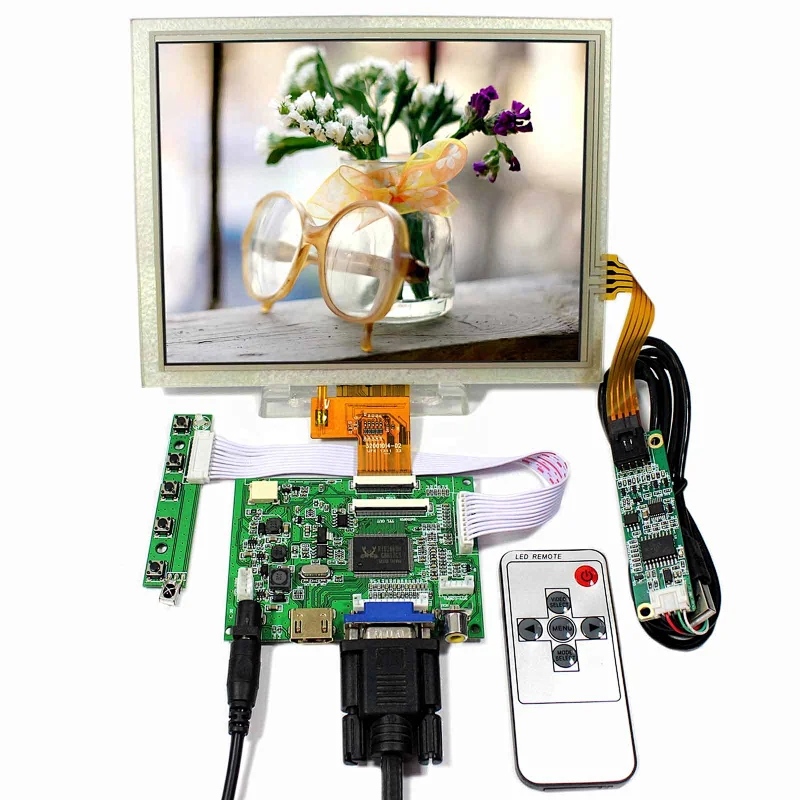

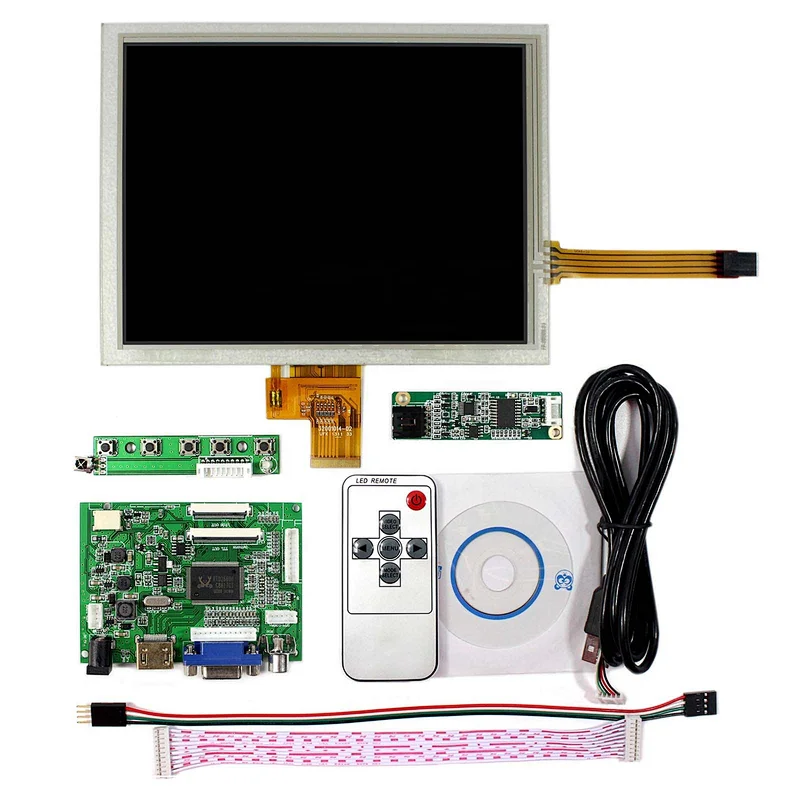

  • Packing list :
    1× HDMI+VGA+2AV LCD Controller Board VS-TY2662-V5
    1× 8inch EJ080NA-04C 1024X768 LCD With Touch Panel VS080TP-A2
    1× USB Controller Card
    1× USB Cable
    1× Extend Touch Cable
    1× Keyboard With Cable
    1× Remote Control (Battery Not included)
