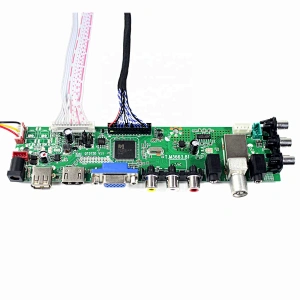

HDMI VGA AV USB ATV DTV LCD Controller Board T.M3663.81for 15.4inch/17inch 1680x1050 lcd panel
HDMI VGA AV USB ATV DTV LCD Controller Board T.M3663.81for 15.4inch/17inch 1680x1050 lcd panel
HDMI VGA AV USB ATV DTV LCD Controller Board T.M3663.81for 15.4inch/17inch 1680x1050 lcd panel
HDMI VGA AV USB ATV DTV LCD Controller Board T.M3663.81for 15.4inch/17inch 1680x1050 lcd panel
HDMI VGA AV USB ATV DTV LCD Controller Board T.M3663.81for 15.4inch/17inch 1680x1050 lcd panel
HDMI VGA AV USB ATV DTV LCD Controller Board T.M3663.81for 15.4inch/17inch 1680x1050 lcd panel
HDMI VGA AV USB ATV DTV LCD Controller Board T.M3663.81for 15.4inch/17inch 1680x1050 lcd panel
HDMI VGA AV USB ATV DTV LCD Controller Board T.M3663.81for 15.4inch/17inch 1680x1050 lcd panel
HDMI VGA AV USB ATV DTV LCD Controller Board T.M3663.81for 15.4inch/17inch 1680x1050 lcd panel

HDMI VGA AV USB ATV DTV LCD Controller Board T.M3663.81for 15.4inch/17inch 1680x1050 lcd panel

Model NO.
K002037 T.M3663.81
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • LCD Controller Board:
    HDMI VGA AV USB RF LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4，HDCP 1.2
    USB Support Video
    AV Compatible With PAL And NTSC

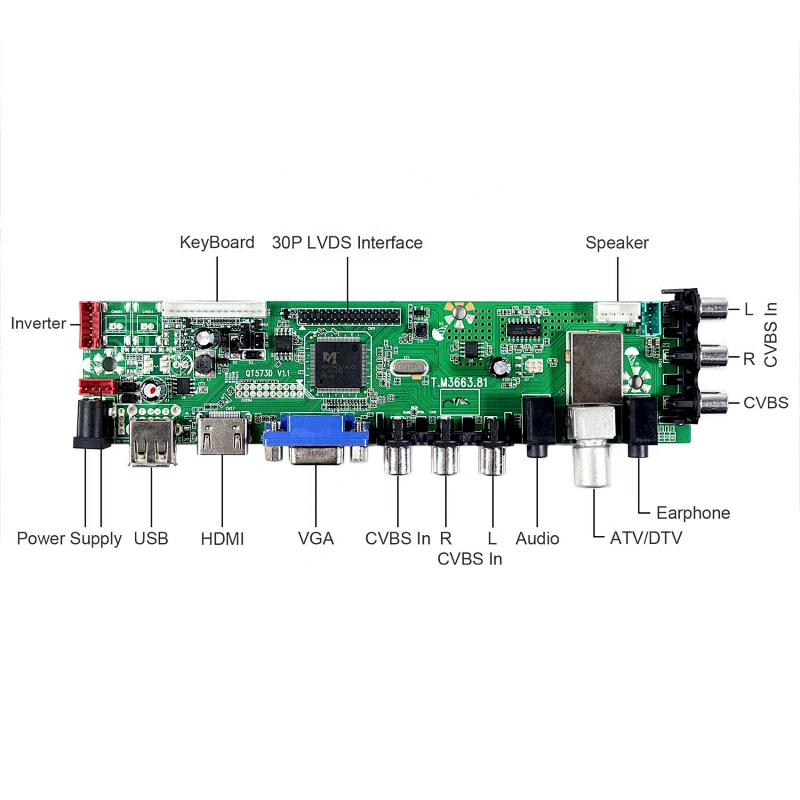

    Video Input: HDMI VGA AV USB ATV DTV
    ATV: 48.25MHZ-863.25MHZ PAL/ SECAM
    DTV: VHF (50MHz ~ 230MHz) UHF (474MHz ~ 862MHz) DVB-T DVB-T2 DVB-C
    Audio Input: HDMI PC-Audio
    Audio Output: Speaker Connector
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 183mm x 43mm x 17mm
  • Compatible Work With:
    15.4inch 1680x1050:
    LTN154P1-L01 LTN154P1-L02 LTN154P1-L03 LTN154P2-L04 LTN154P2-L05
    N154Z1-L02 B154SW01 LTN154MT02 LP154WE2 QD15AL02 LP154W02
    17inch 1680x1050:
    LTN170WP-L01 LTN170WP-L02 LTN170WP-L03 LTN170P2-L01 LP171W02 A4 LP171WE3

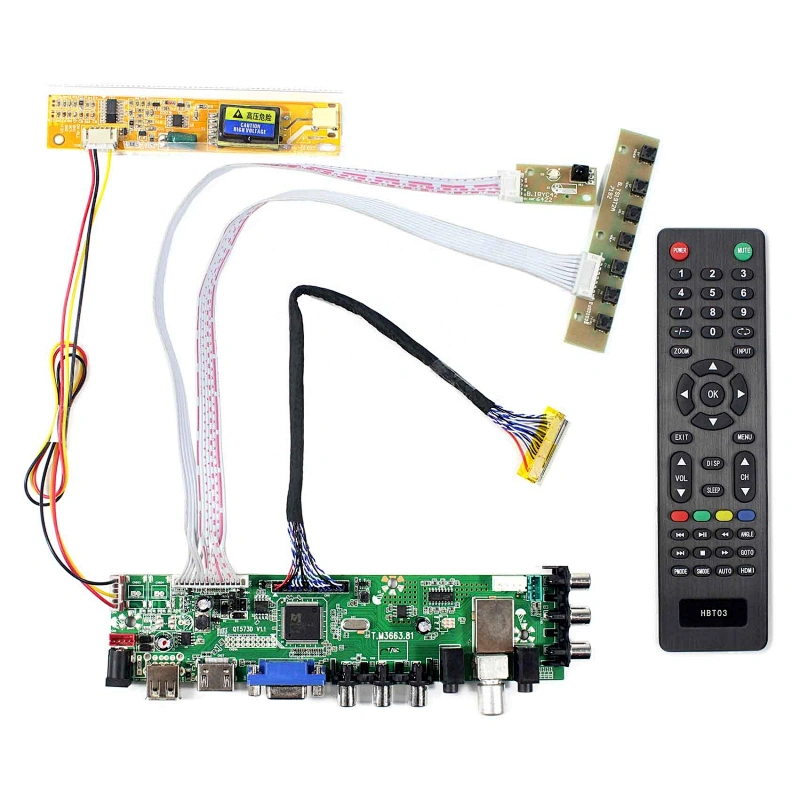

  • Packing list :
    1× HDMI VGA AV USB ATV DTV LCD Controller Board T.M3663.81
    1× 1 CCFL Inverter Board
    1× 30Pin Signal Cable
    1× Keyboard With Cable
    1× Remote Control (Battery Not included)
