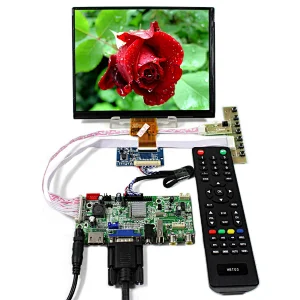

HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 with 8inch 1024X768 IPS LCD Screen
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 with 8inch 1024X768 IPS LCD Screen
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 with 8inch 1024X768 IPS LCD Screen
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 with 8inch 1024X768 IPS LCD Screen
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 with 8inch 1024X768 IPS LCD Screen
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 with 8inch 1024X768 IPS LCD Screen
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 with 8inch 1024X768 IPS LCD Screen
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 with 8inch 1024X768 IPS LCD Screen
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 with 8inch 1024X768 IPS LCD Screen
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 with 8inch 1024X768 IPS LCD Screen
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 with 8inch 1024X768 IPS LCD Screen
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 with 8inch 1024X768 IPS LCD Screen
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 with 8inch 1024X768 IPS LCD Screen

HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 with 8inch 1024X768 IPS LCD Screen

Model NO.
K001409 VS-V59AV1-V1+HJ080IA-01E
Quantity:

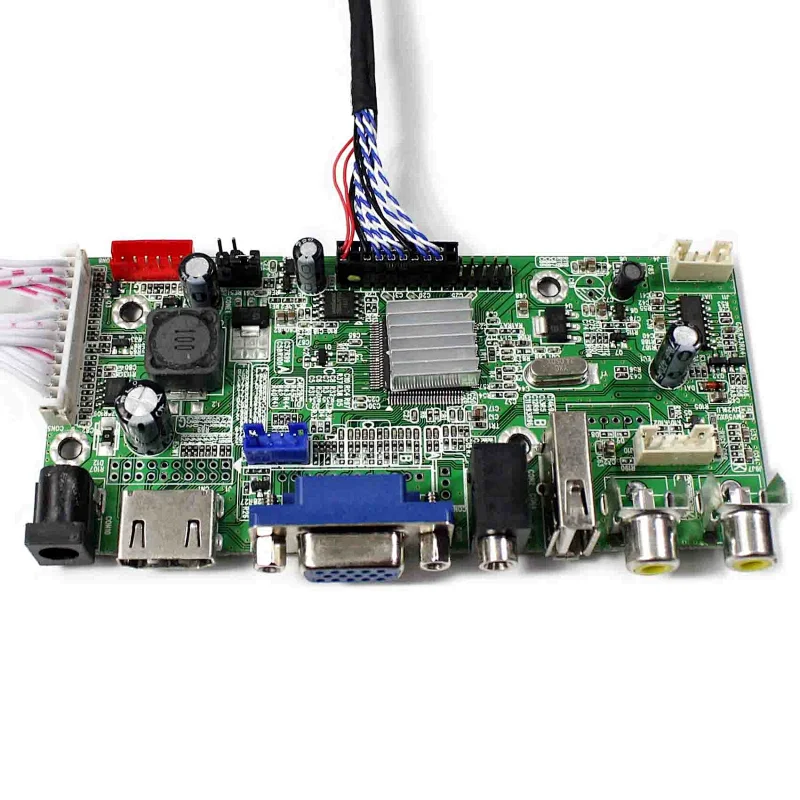

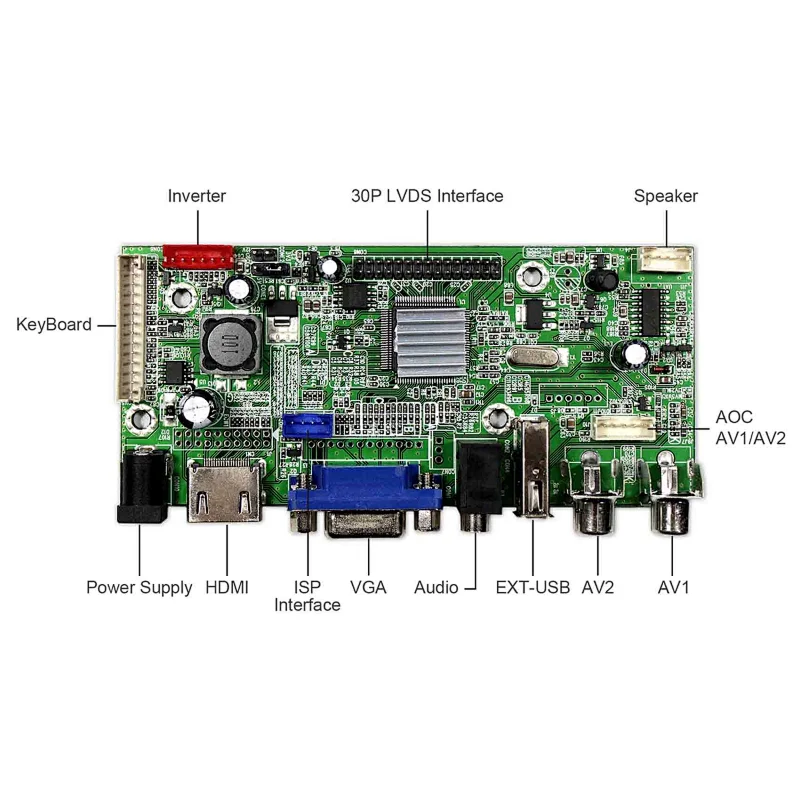

  • LCD Controller Board:
    HDMI VGA 2AV USB LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4，HDCP 1.2
    USB Support Video
    AV1 AV2 Compatible With PAL And NTSC
    Video Input: HDMI VGA AV1 AV2 USB
    Audio Input: HDMI PC-Audio
    Audio Output: Speaker Connector
    Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:118mm x 54mm x 17mm
  • 8"HJ080IA-01E 1024X768 LCD Screen:
    Display Mode IPS, Normally Black, Transmissive
    Resolution 1024RGB)×768
    Outline Size 174 × 136×2.75 (H×V×D)
    Display Area 162.08 × 121.54(H×V)
    Brightness 350 cd/m² (Typ.)
    Contrast Ratio 800:1 (Typ.) (TM)
    Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
    Backlight  WLED
    Input Voltage  3.3V (Typ.)

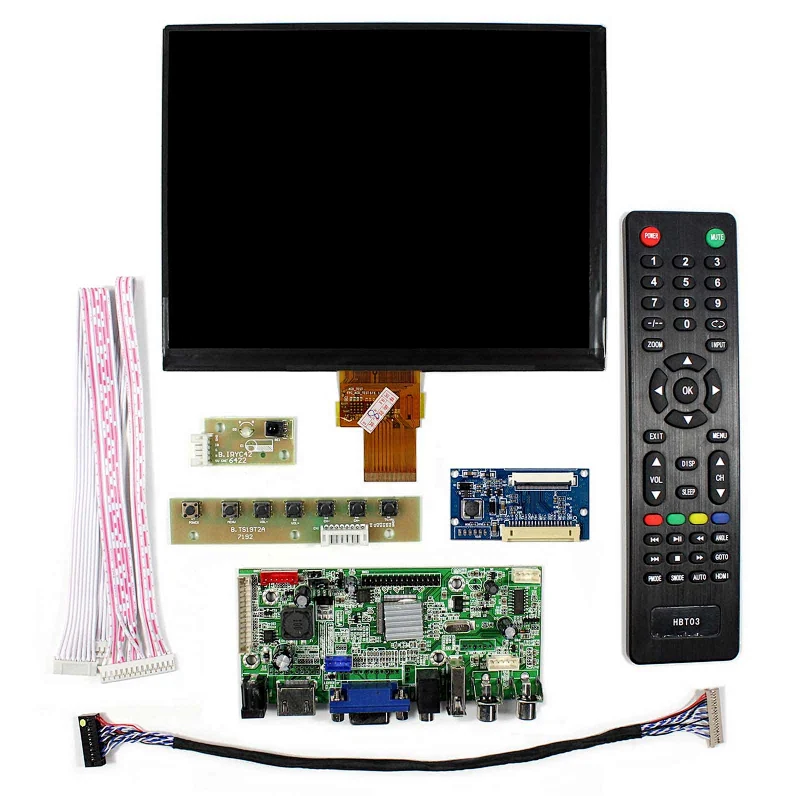

  • Packing list :
    1× HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1
    1× 8inch HJ080IA-01E 1024X768 IPS LCD Screen
    1× Tcon Board VS-TCON40-V1
    1× Keyboard With Cable
    1× Remote Control(Battery Not included)
