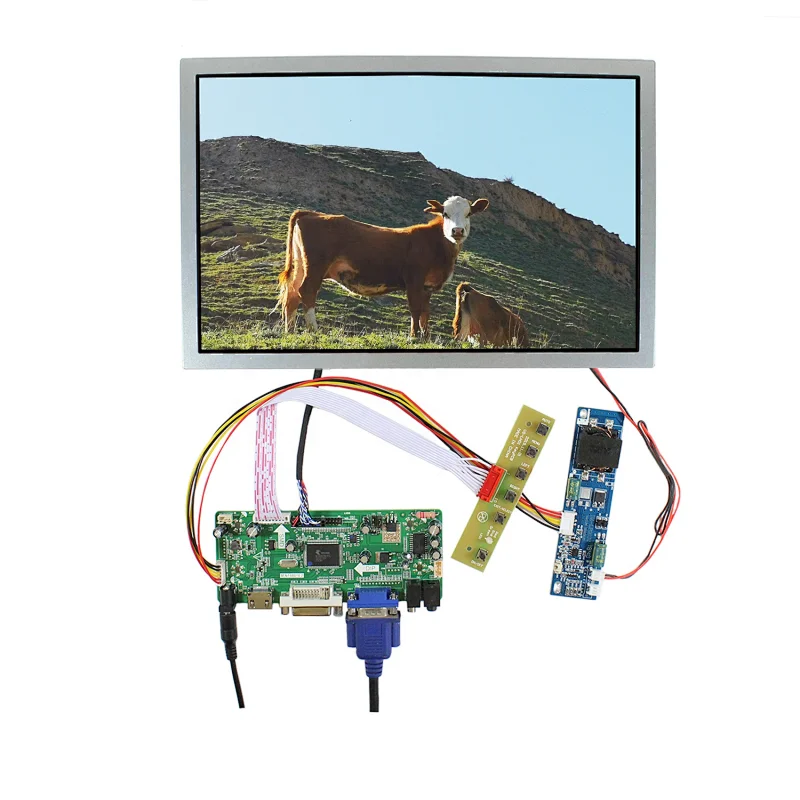

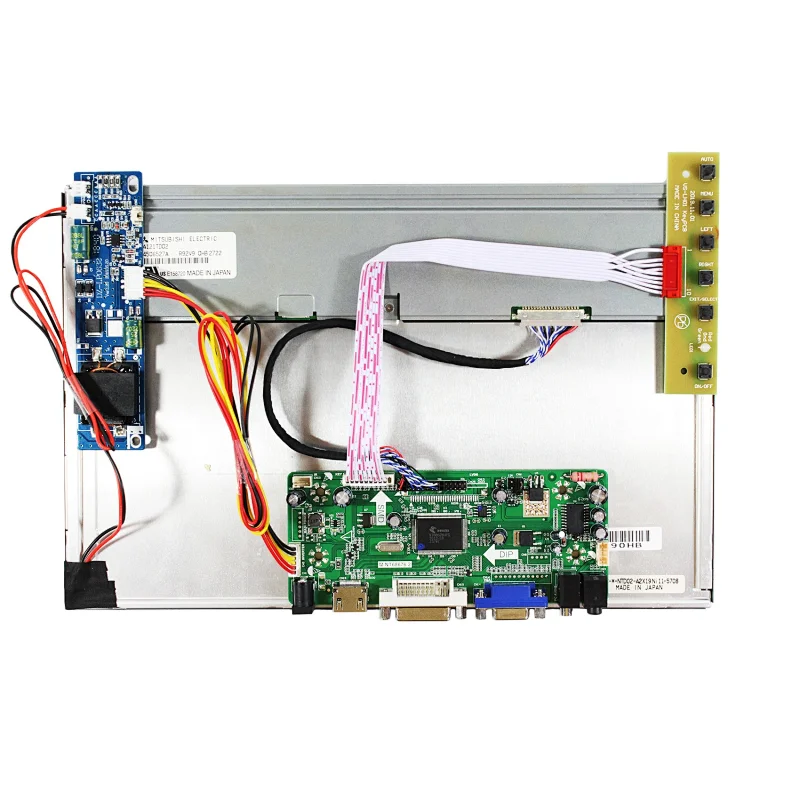

High Brightness 1000cd 12.1" AA121TD02 1280X800 LCD Screen with controller board VGA H DMI

Model NO.
K002665 M.NT68676+AA121TD02
Delivery:
EXW or FOB
Minimum order quantity:
1 set
Supply Ability:
1000 set / Day
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

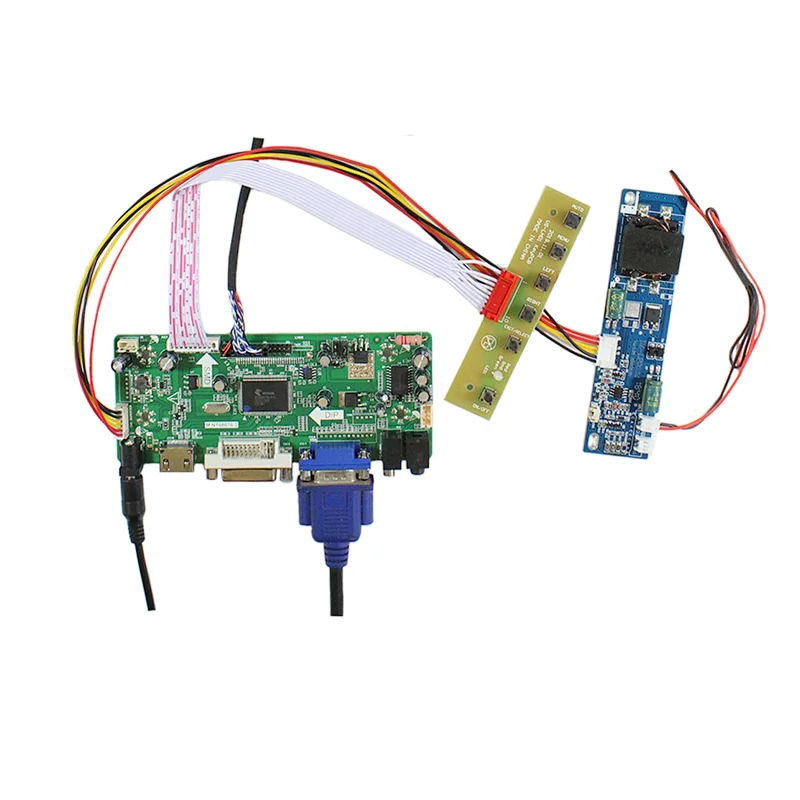

  • LCD Controller Board:

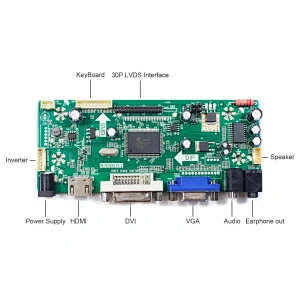

    HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI DVI VGA
    Audio Input: HDMI
    Audio Output: Speaker Connector
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On

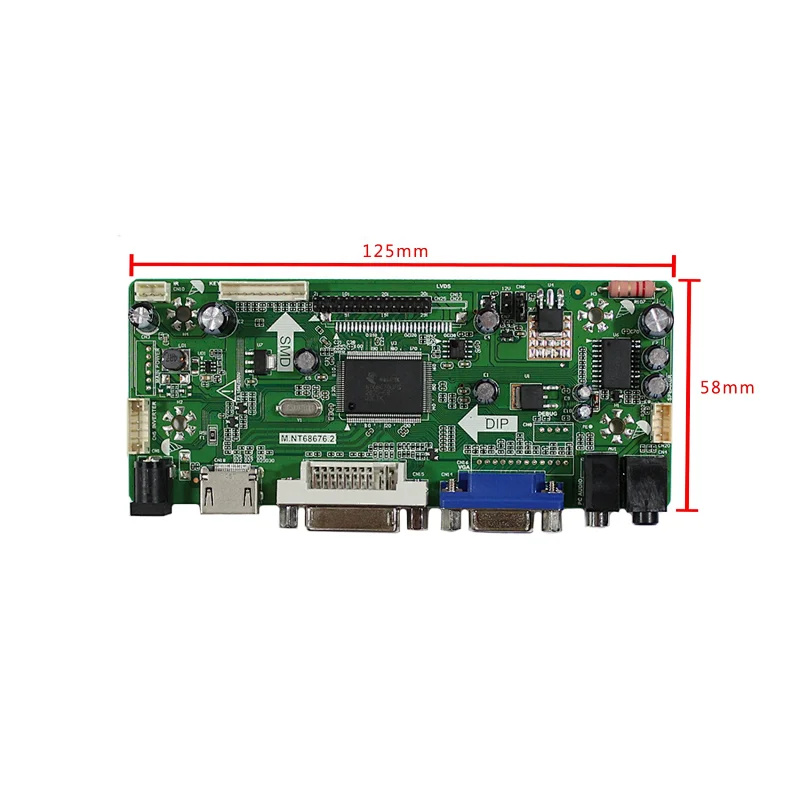

    Board Size: 125mm x 58mm x 17mm
  • 12.1"AA121TD02 1280X800 LCD Screen:
    Display Mode  TN, Normally White, Transmissive
    Resolution 1280RGB)×800

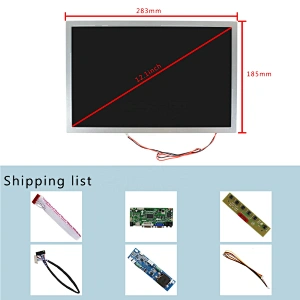

    Outline Size 283×185.1×10(H×V×D)
    Display Area 216.12 × 163.2 (H×V)
    Brightness 1000 cd/m²(Typ.)
    Contrast Ratio 700:1 (Typ.) (TM)
    Viewing Angle 80/80/80/60 (Typ.)(CR10) [Left / Right / Up / Down]
    Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector
    Backlight WLED
    Input Voltage 3.3V (Typ.)
  • Packing list:
    1× HDMI VGA DVI LCD Controller Board M.NT68676
    1× 12.1inch AA121TD021280x800 LCD Screen
    1× LVDS Cable
    1× Backlight Cable
    1× Keyboard With Cable
