IPS LCD 9.7 inch 1024x768 tft display with HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1
IPS LCD 9.7 inch 1024x768 tft display with HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1
IPS LCD 9.7 inch 1024x768 tft display with HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1
IPS LCD 9.7 inch 1024x768 tft display with HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1
IPS LCD 9.7 inch 1024x768 tft display with HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1
IPS LCD 9.7 inch 1024x768 tft display with HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1
IPS LCD 9.7 inch 1024x768 tft display with HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1
IPS LCD 9.7 inch 1024x768 tft display with HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1
IPS LCD 9.7 inch 1024x768 tft display with HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1
IPS LCD 9.7 inch 1024x768 tft display with HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1
IPS LCD 9.7 inch 1024x768 tft display with HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1
IPS LCD 9.7 inch 1024x768 tft display with HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1
IPS LCD 9.7 inch 1024x768 tft display with HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1

IPS LCD 9.7 inch 1024x768 tft display with HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1

Model NO.
K002117 VS-V59AV-V1+9.7inch
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

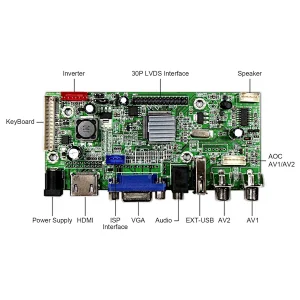

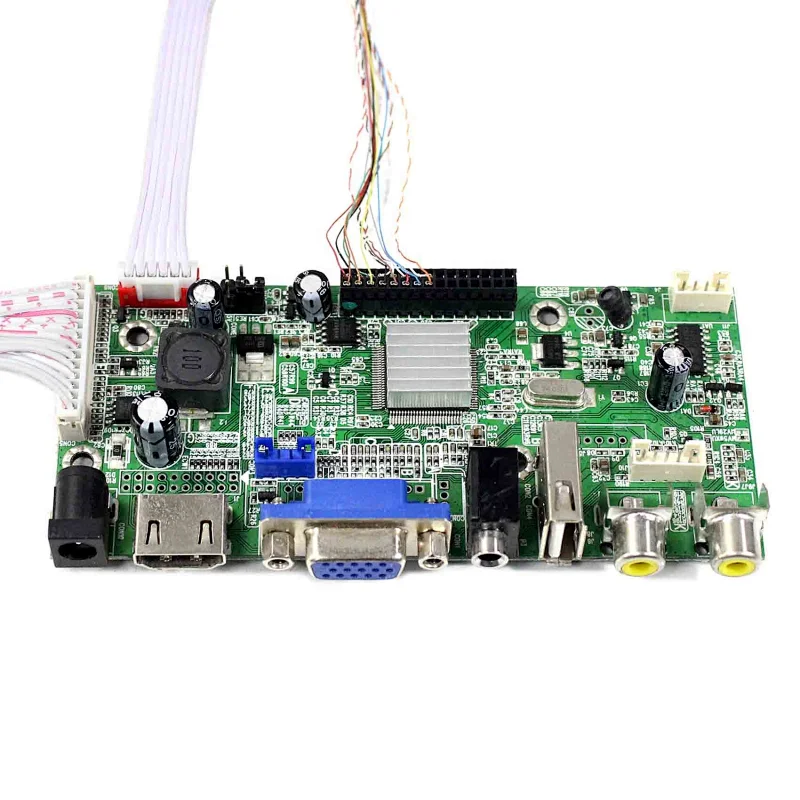

  • LCD Controller Board:
    HDMI VGA 2AV USB LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4HDCP 1.2
    USB Support Video
    AV1 AV2 Compatible With PAL And NTSC
    Video Input: HDMI VGA AV1 AV2 USB
    Audio Input: HDMI PC-Audio
    Audio Output: Speaker Connector
    Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 118mm x 54mm x 17mm

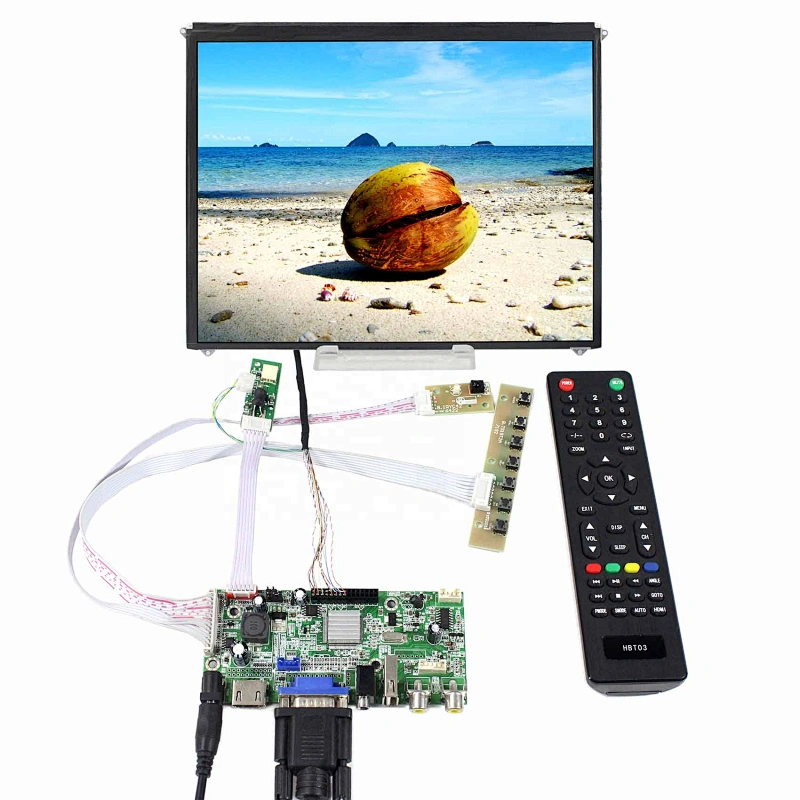

  • 9.7"1024x768 LCD Screen:
    Display Mode IPS, Normally Black, Transmissive
    Resolution 1024RGB)×768
    Outline Size 210.53× 166.53×5.45 (H×V×D)
    Display Area 196.6 ×147.5 (H×V)
    Brightness 300 cd/m² (Typ.)
    Contrast Ratio 600:1 (Typ.) (TM)
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface LVDS(1ch 6bit) Connector 30Pin
    Backlight  WLED
    Input Voltage  3.3V (Typ.)

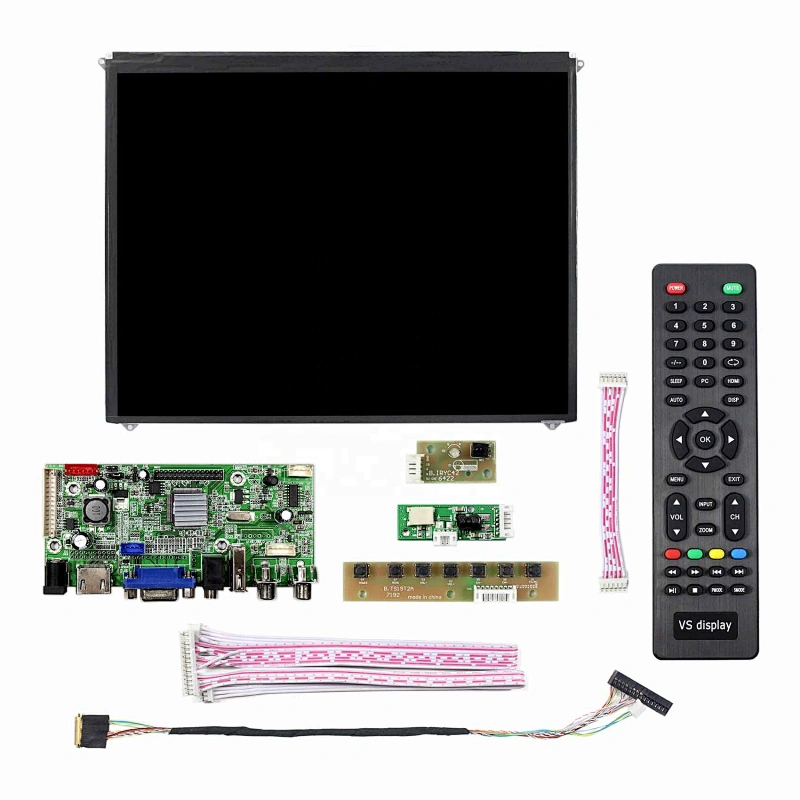

  • Packing list :
    1× HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1
    1× 9.7"1024x768 IPS LCD Screen

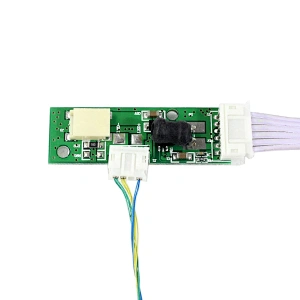

    1× Converter Board

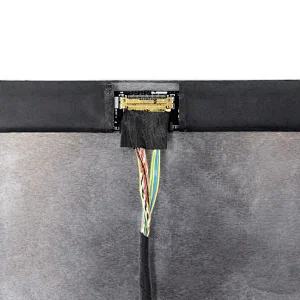

    1× 30Pin Signal Cable
    1× Keyboard With Cable
    1× Remote Control (Battery Not included)
