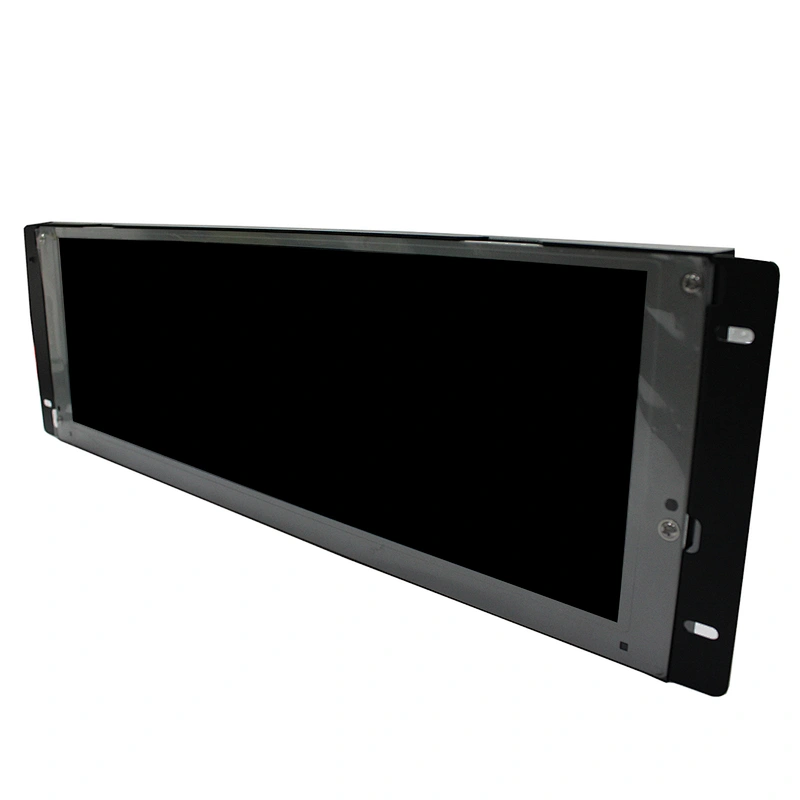

K002801 M.NT68676+14.9inch LTA149B780F+Case
K002801 M.NT68676+14.9inch LTA149B780F+Case
K002801 M.NT68676+14.9inch LTA149B780F+Case
K002801 M.NT68676+14.9inch LTA149B780F+Case
K002801 M.NT68676+14.9inch LTA149B780F+Case
K002801 M.NT68676+14.9inch LTA149B780F+Case
K002801 M.NT68676+14.9inch LTA149B780F+Case
K002801 M.NT68676+14.9inch LTA149B780F+Case
K002801 M.NT68676+14.9inch LTA149B780F+Case
K002801 M.NT68676+14.9inch LTA149B780F+Case
K002801 M.NT68676+14.9inch LTA149B780F+Case
K002801 M.NT68676+14.9inch LTA149B780F+Case
K002801 M.NT68676+14.9inch LTA149B780F+Case
K002801 M.NT68676+14.9inch LTA149B780F+Case
K002801 M.NT68676+14.9inch LTA149B780F+Case

K002801 M.NT68676+14.9inch LTA149B780F+Case

Model NO.
K002801 M.NT68676+14.9inch LTA149B780F+Case
Delivery
EXW or FOB
Minimum order quantity
1 piece
Supply Ability
500 piece / Day
Country of Origin
CHINA
Stock Time
3-7 Days
Quantity:
LCD Controller Board:
HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen

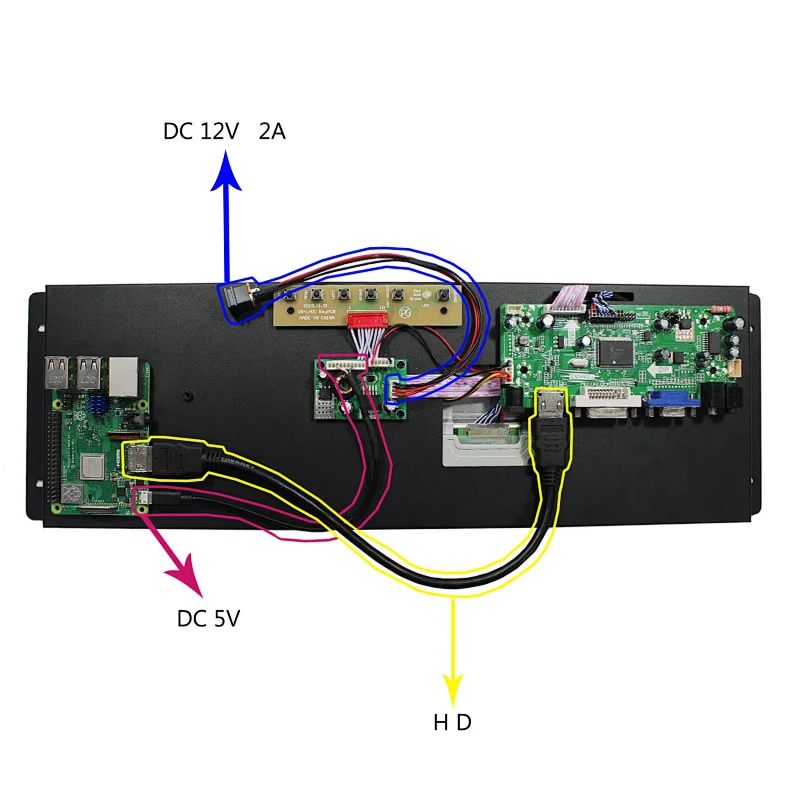

Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DVI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 53mm x 17mm

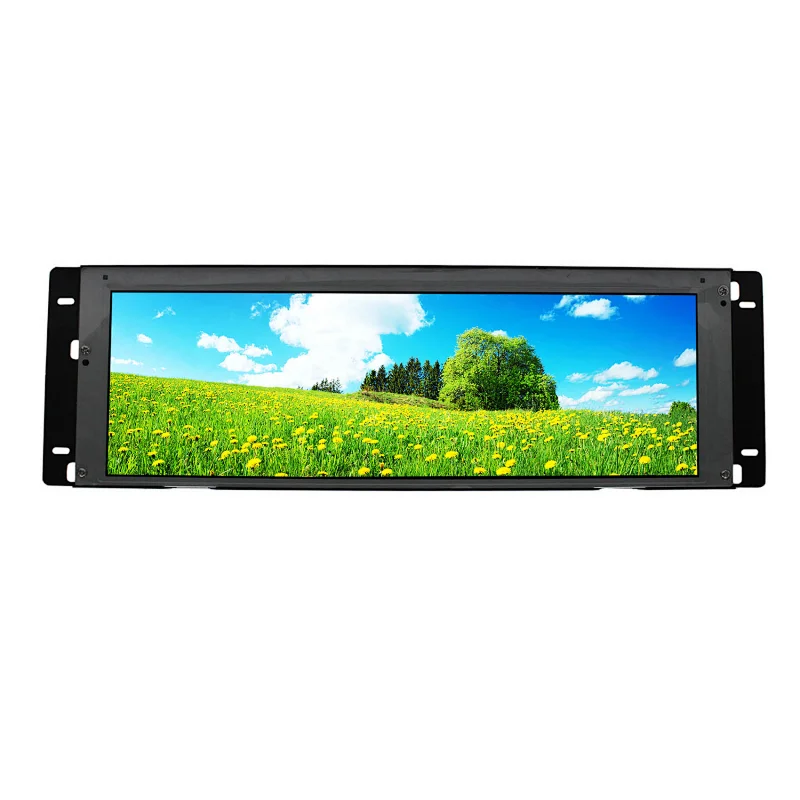

14.9"LTA149B780F1280X390 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1280RGB)×390

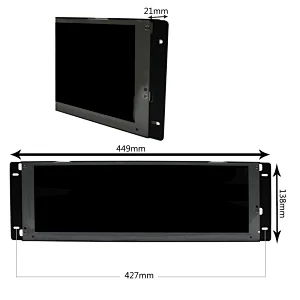

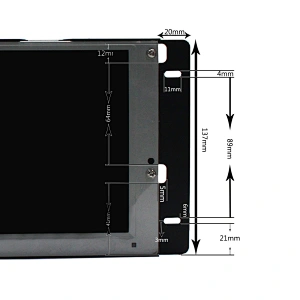

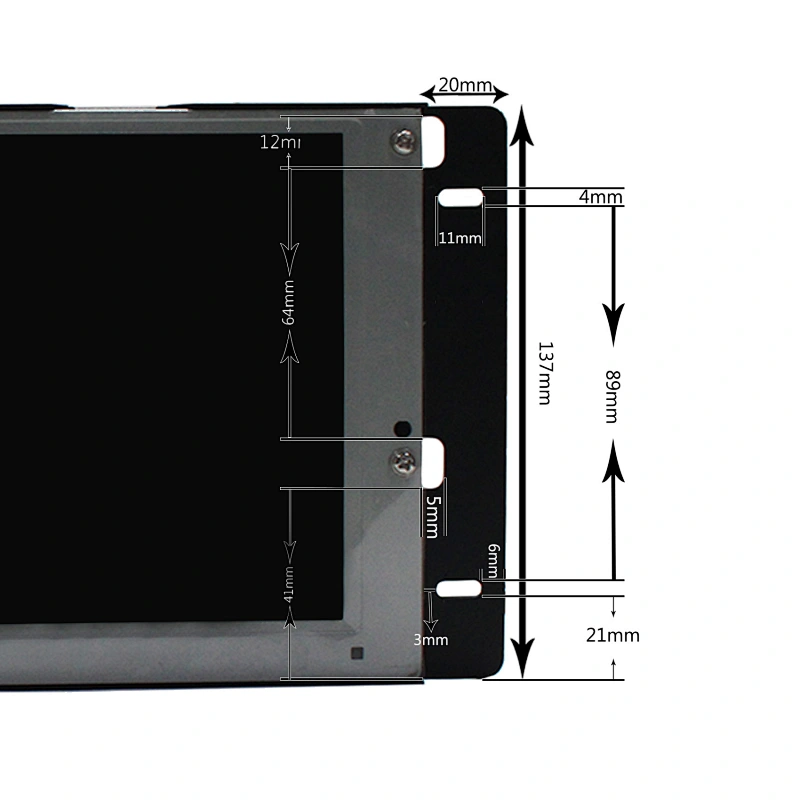

Outline Size 407.5 × 136×20.5(H×V×D)
Display Area 360.94 × 109.98 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 80/80/45/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector
Backlight  WLED
Input Voltage 3.3V (Typ.)

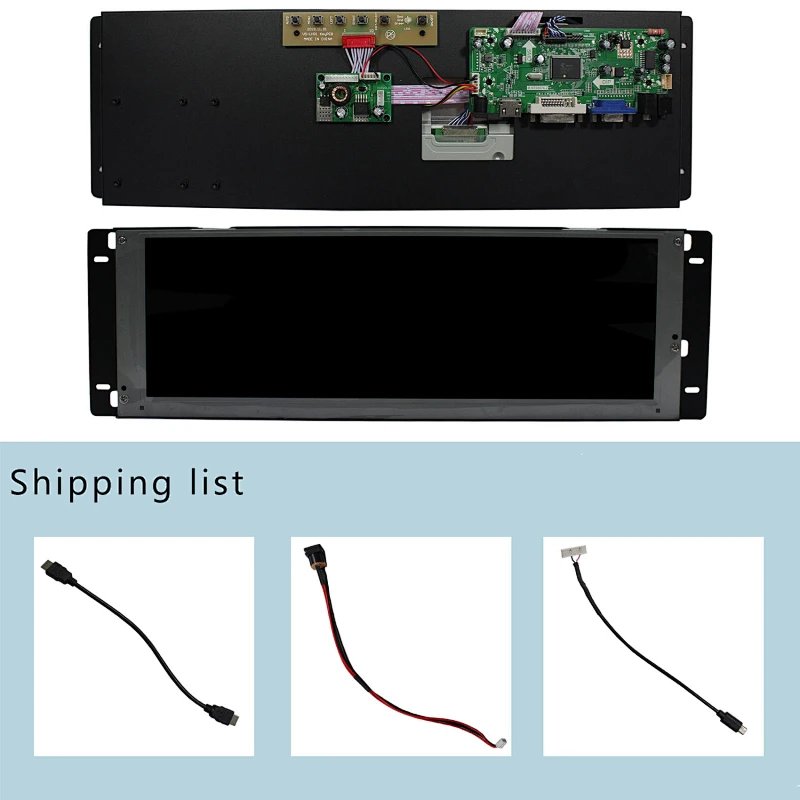

Packing list:
1× HDMI VGA DVI LCD Controller Board M.NT68676
1× 14.9inch LTA149B780F 1280X390 LCD Screen
1× LVDS Cable
1× Converter Board
1× Keyboard With Cable
1× Bracke

Send Message

* clear input
*

Related Products

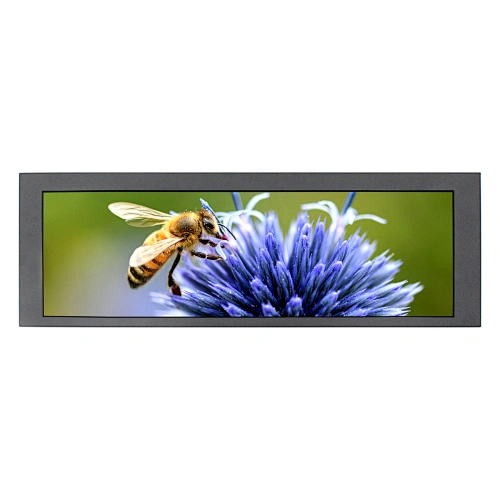

14.9" LCD Monitor H DM I DVI VGA Audio Interface for Game monitor 1280X390 WLED
