LCD Board Work with 10.1" M101NWWB R6 1280X800 LCD Screen and 10.1 Resistive Touch Panel

Model NO.
K001863 VS-2660H-V1+M101NWWB+VS101TP-A4
Quantity:

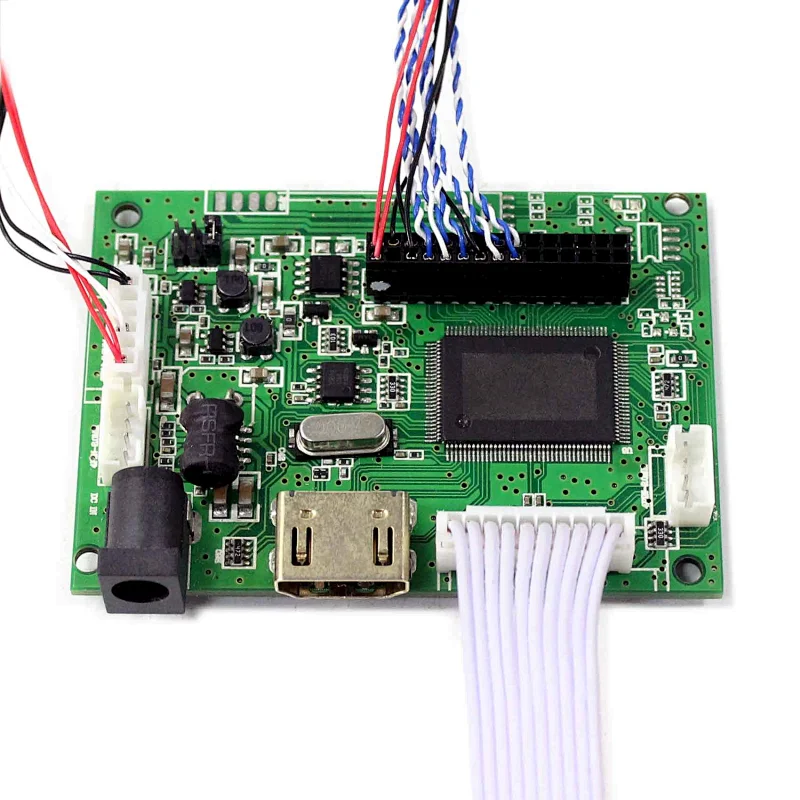

  • LCD Controller Board:
    HDMI LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 74mm x 53mm x 12mm
  • 10.1"M101NWWB 1280X800 LCD Screen:
    Display Mode  MVA, Normally Black, Transmissive
    Resolution 1280RGB)×800
    Outline Size 229.46 × 149.1×4.56(H×V×D)
    Display Area 216.96× 135.6 (H×V)
    Brightness 350 cd/m² (Typ.)
    Contrast Ratio 800:1 (Typ.) (TM)
    Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface LVDS (1 ch, 6-bit) , Connector , 40 pins
    Backlight  WLED
    Input Voltage  3.3V (Typ.)

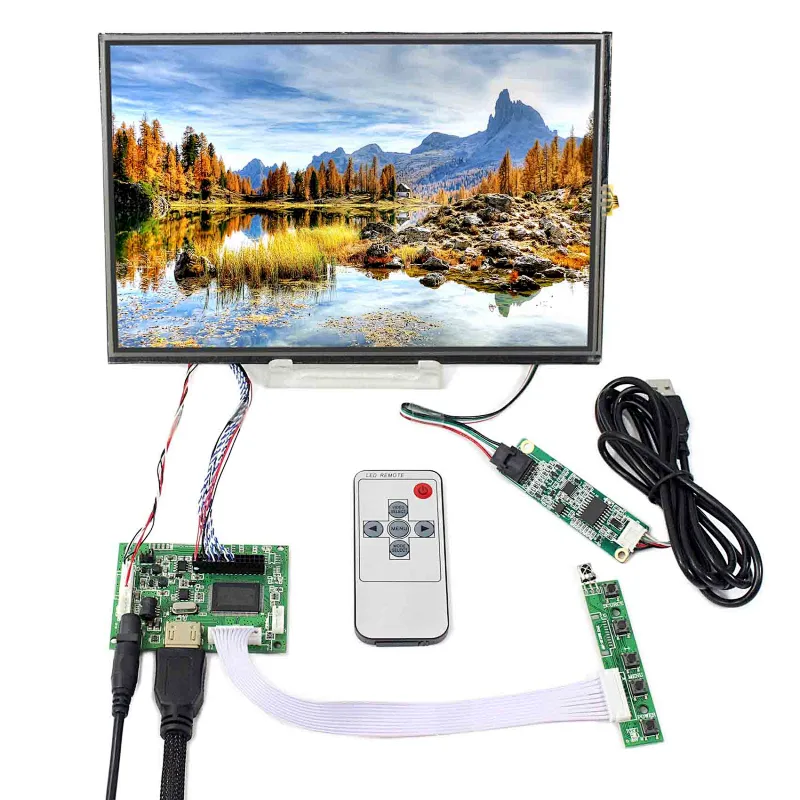

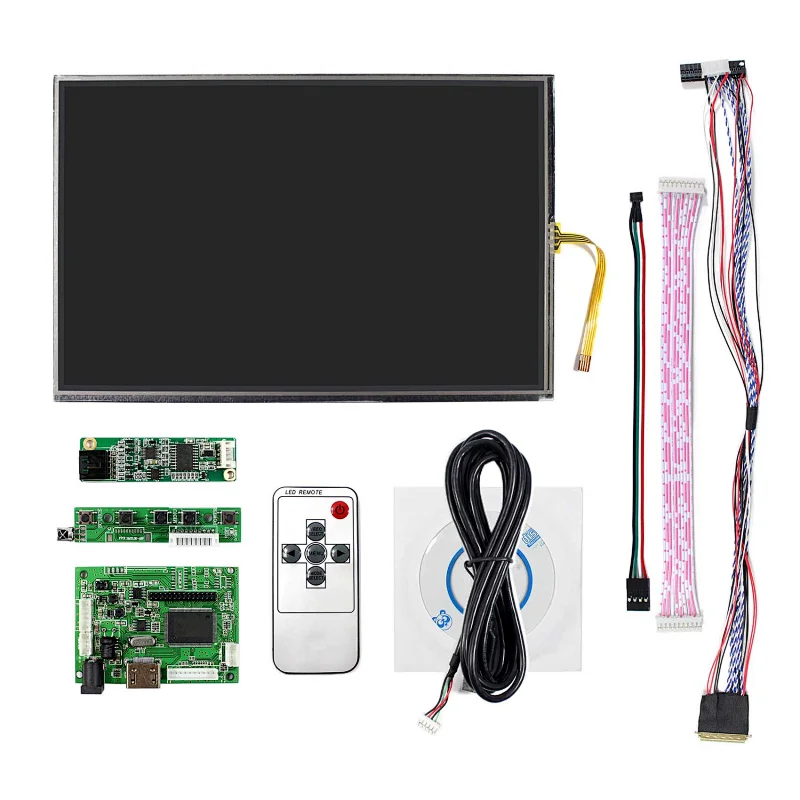

  • Packing list :
    1× HDMI LCD Controller Board VS-TY2660H-V1
    1× 10.1inch M101NWWB 1280X800 LCD Screen With Resistive Touch Panel VS101TP-A4

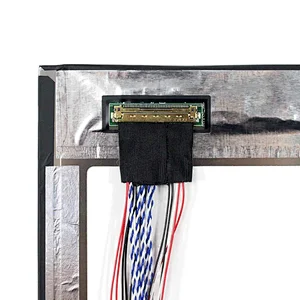

    1× LVDS Cable

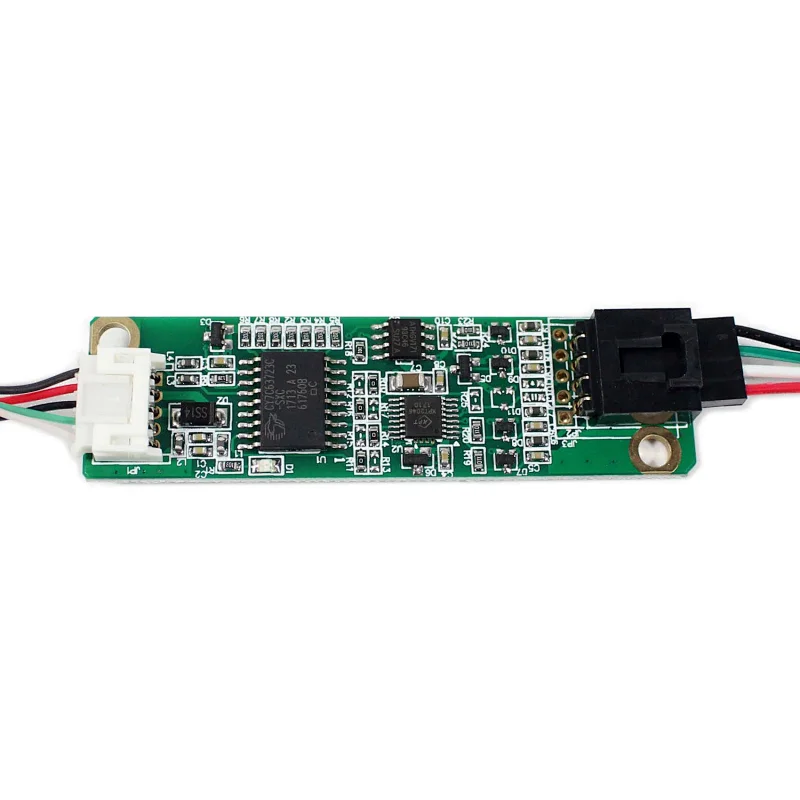

    1× USB Controller Card
    1× USB Cable
    1× Extend Touch Cable
    1× Keyboard With Cable
    1× Remote Control (Battery Not included)
