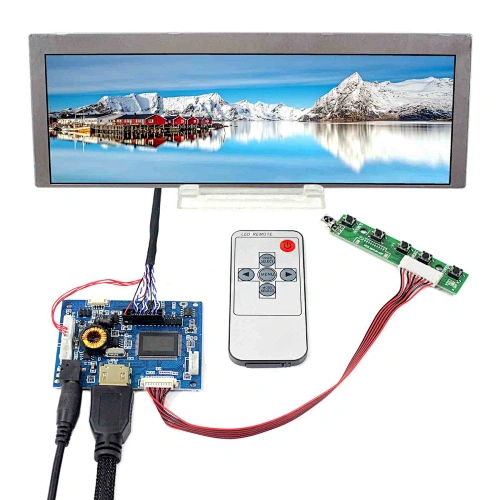

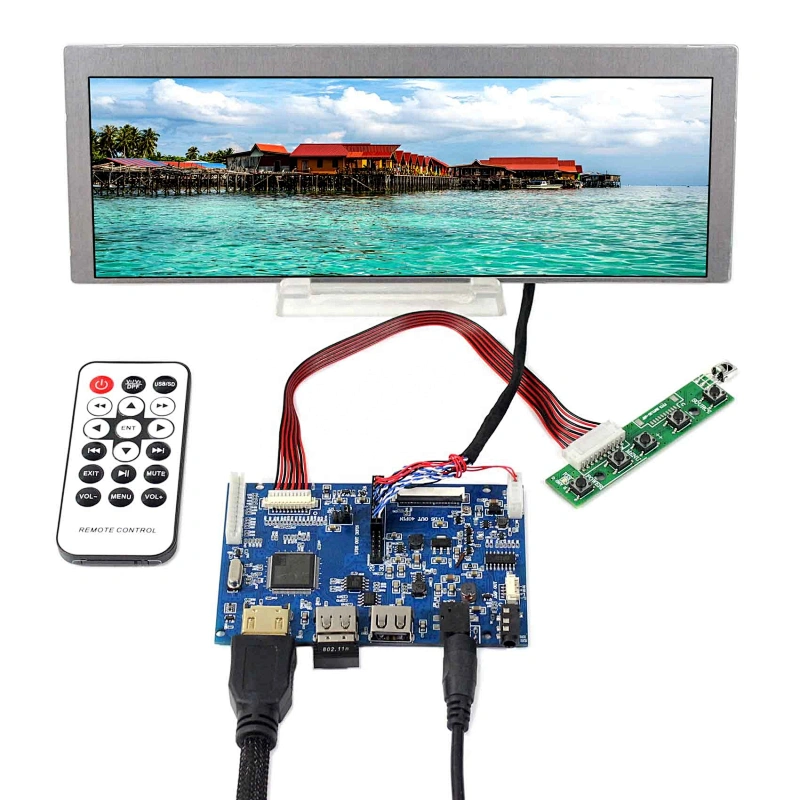

lcd car display 9.1" LQ091B1LW01 822x260 Resolution lcd with driver board

Model NO.:
VS-TY2660H-V818+LQ091B1LW01(K002195)
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Type:TN
  • SIZE:9.1"
  • Resolution:822X260
  • Display mode:Normal White
  • Interface:LVDS
  • Connector:30 pins
  • Product Name:LCD Dispaly panel with driver board
  • Application:Car GPS Navigator
  • Item:LQ091B1LW01
  • Driver board:VS-TY266H-V818
  • Place of Origin:CN;GUA
  • Type:TFT LCD with Board
  • Display Size:9.1"
  • Supplier Type:Manufacture
  • Model Number:VS-TY2660H-V818+LQ091B1LW01(K002195)
  • Brand Name:VS
Products Show
Product Description

HD MI USB Android LCD Controller Board
9.1"LQ091B1LW01 820X260 LCD Screen
Product name:

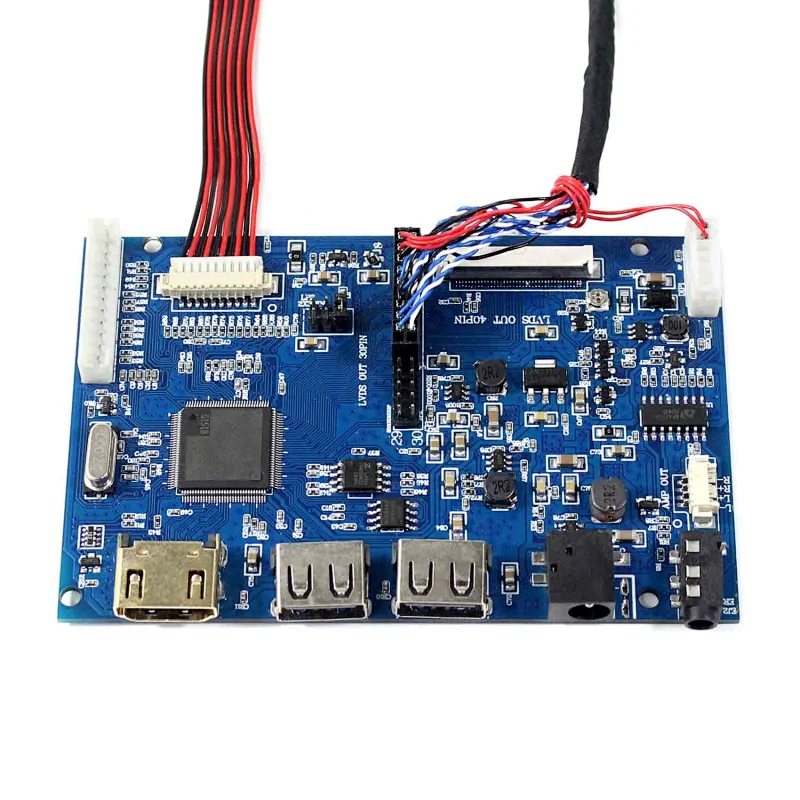

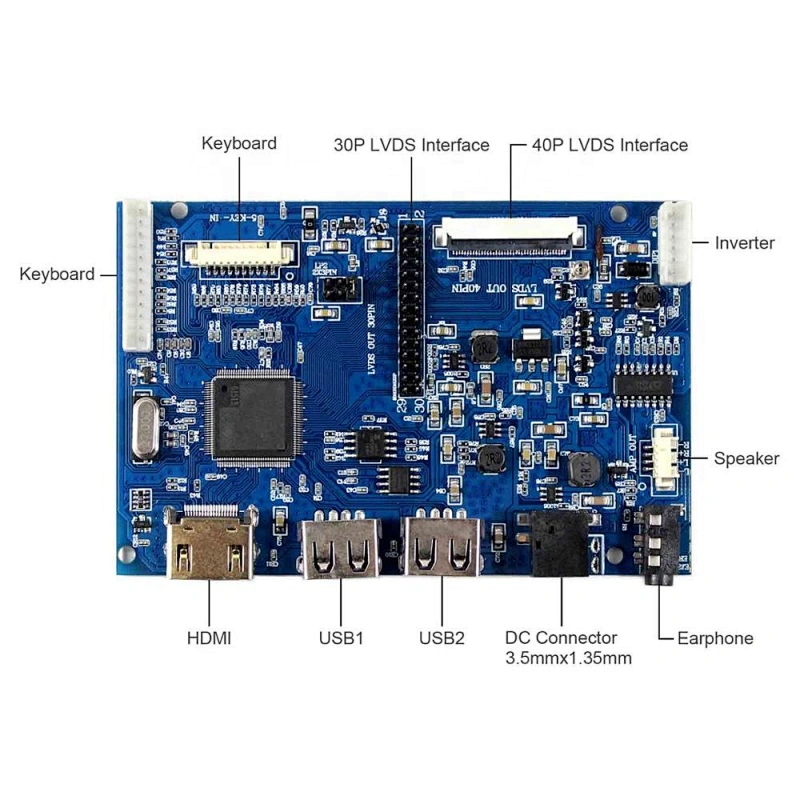

HD MI USB Android LCD Controller Board VS-TY2660H-V818
Details:
 HD MI USB Android LCD Controller Board Work for LVDS 40Pin TTL LCD Screen

Input Power Adapter: 12Vdc More than 2A.(9~14Vdc)

Come In Standby Model When Not Input Signal
Standby Model <1W

Video Input: HD MI1.4 USB

USB Port:

Support Video Play

Support WIFI Module

Support Connect Keyboard and mouse

Support 5Vdc 500mA output

Support OS Android Screen projection via USB Cable or wifi Module

Audio Input: HD MI

Audio Output: Earphone connector Speaker (4Pin 1.25mm Pitch 8ohm 2W or 4ohm 2W)

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 74mm x 53mm x 12mm
Product Name:
9.1"LQ091B1LW01 820X260 LCD Screen
Details:
Display Mode TN, Normally White, Transmissive
Resolution 822RGB)×260
Outline Size 240× 86×10.5(H×V×D)
Display Area 219.5× 69.4 (H×V)
Brightness 380 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 8-bit) , 30 pins , Connector
Backlight WLED
Input Voltage 3.3V (Typ.)

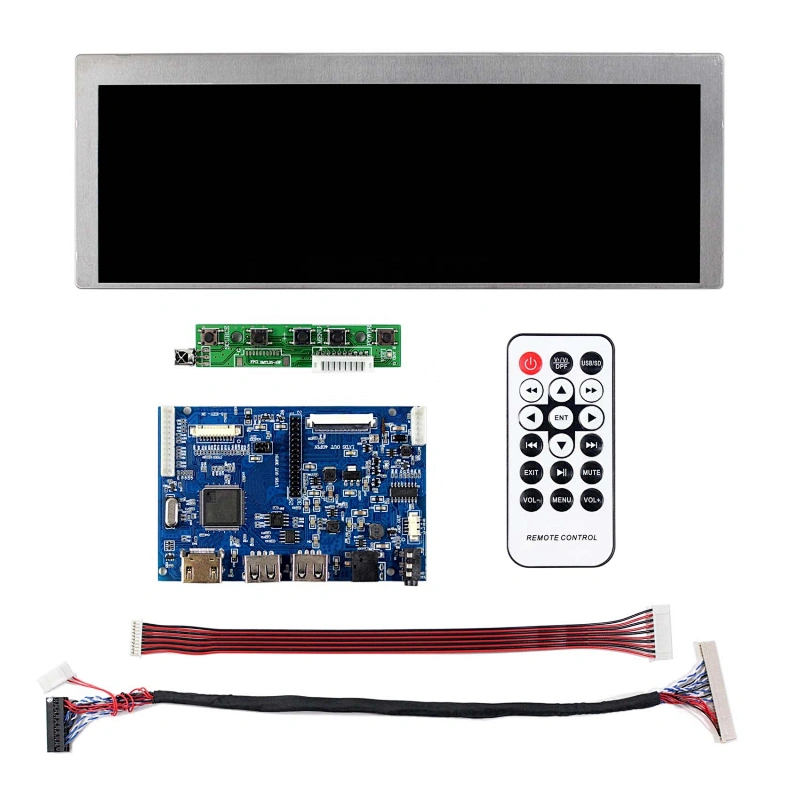

Packing list:
 1× HD MI USB LCD Controller Board VS-TY2660H-V818
PS: The menu can’t use because of this lcd screen is too small.Only ON/OFF and Source change can use.
1× 9.1inch LQ091B1LW01 820X260 LCD Screen
1× LVDS Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
