Model NO.
VS-TY2662-V1+AT090TN10+TP(K000127)
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Supply Ability:
10000 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Place of Origin:CN;GUA
  • Model Number:VS-TY2662-V1+AT090TN10+TP+Remote(K000127)
  • Brand Name:VS
  • Type:TFT
  • Dots Format:800x480
  • Size:9 Inch
  • Product Name:AT090TN10
  • Display mode:Transmissive
  • Interface:ttl
  • Connect:50pin 0.5 pitch
  • Backlight:WLED
  • Driver Board:VS-TY2662-V1
  • Remote Control:Optional
  • TP:Resistive touch screen

LCD Controller Board VS-TY2662-V1 with Remote Control, 9inch AT090TN10 800x480 LCD Touch Screen Panel

Product Description

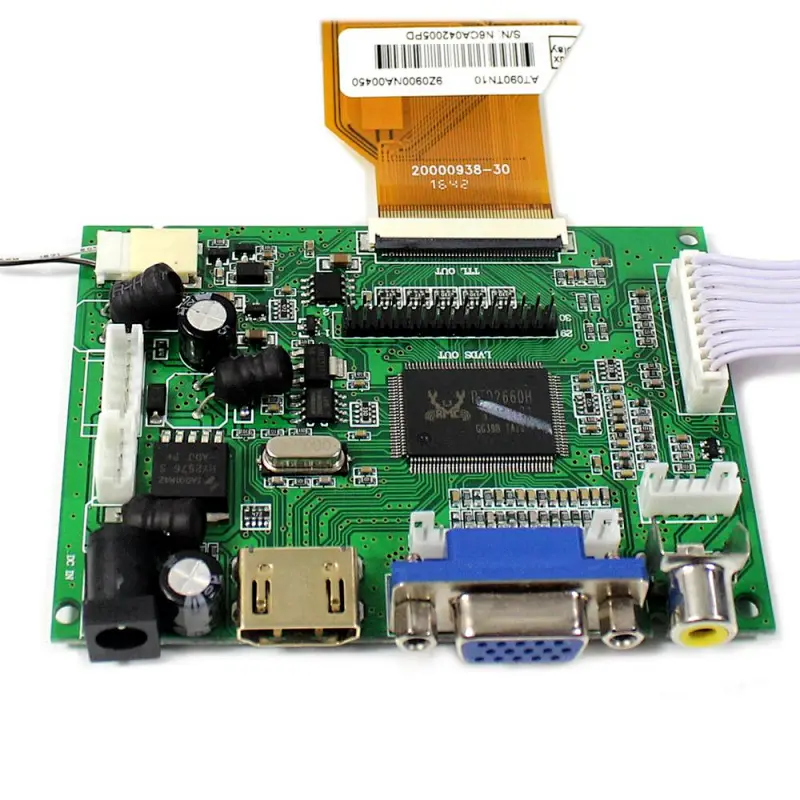

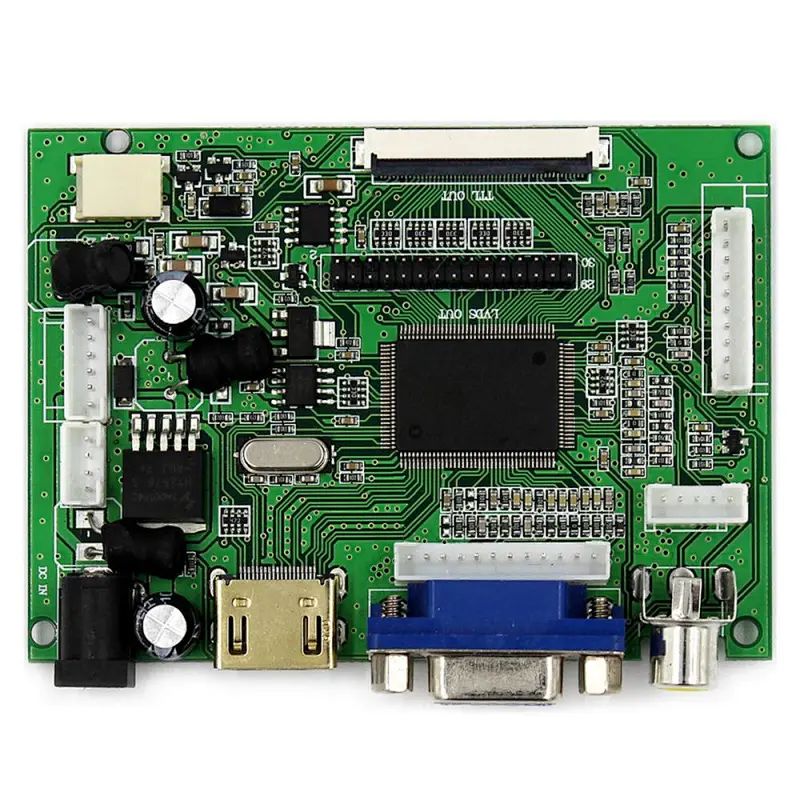

LCD Controller Board VS-TY2662-V1:

K001728(3)-4

Size: 91mm x 66mm x 12mm

50Pin TTL Connector for 7inch~10.1inch LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HDMI VGA AV1 AV2

Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On


9” 800x480 LCD Screen AT090TN10:


Display Mode: TN, Normally White, Transmissive

Panel Type: a-Si TFT-LCD, LCM


Resolution: 800×480

Outline Size: 211.1(H)×126.5(V)x5.9(D)mm


Display Area: 198(H)×111.696(V)

Backlight type: WLED

Aspect Ratio: 16:9

Brightness: 250 cd/m² (Typ.)


Contrast Ratio: 500 : 1 (Typ.) (Transmissive)


Viewing Angle: 70/70/50/70(Typ.)(CR≥10)

Signal Interface: TTL 50pin 0.5pitch


Operating Temperature: -20~70 °C

Weight: 250g

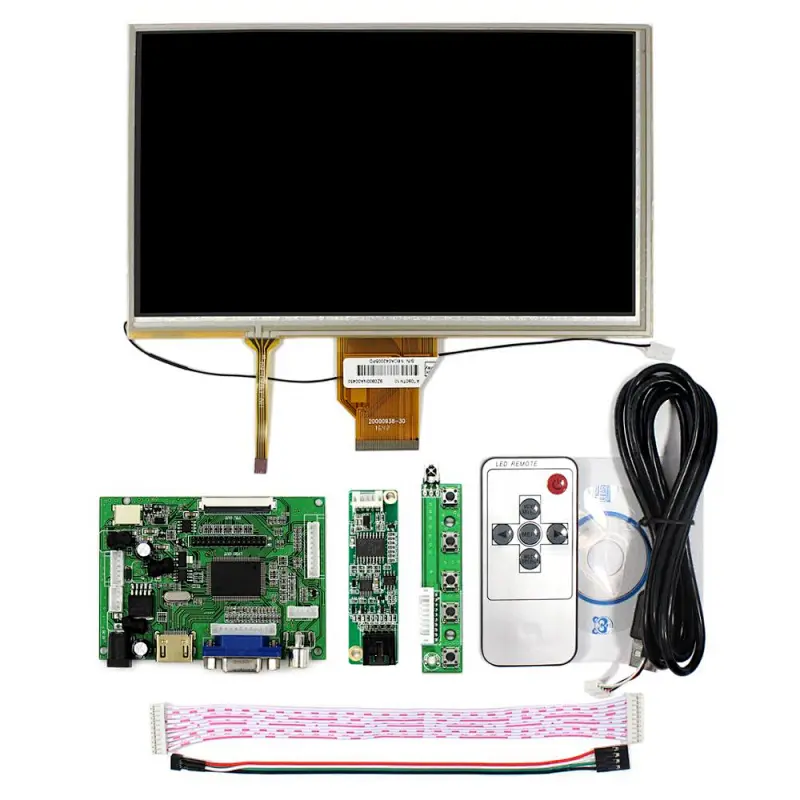

Packaging & Shipping

K000127(2)

1× LCD Controller Board VS-TY2662-V1

1× 9inch AT090TN10 800X480 LCD With Touch Panel VS090TP-A1

1× USB Controller Card

1× USB Cable

1× Extend Touch Cable

1× Keyboard With Cable

1× Remote Control(Battery Not included)

Our Services

1 year warranty from the day the product sold. Some technical issue can be solved online.

FAQ

Trade Term:EXW Shenzhen or FOB Shenzhen

Shipping:DHL, UPS, FedEx, TNT, EMS, Hongkong Post

Payment:T/T HSBC, Paypal, Western Union

Company Information

workshop

VS DISPLAY TECHNOLOGY(HONGKONG) LTDis a Hi-tech manufacturer of liquid crystal displayer.It is establishiment in 1998.The headquarters is located in Shenzhen.

The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications : in telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA), mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.

VS DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.

All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.

Fabrication base covers 4,000sq meters. 2 COB lines, 1 COG lines, 1 TAB lines

QC system: ISO9001
