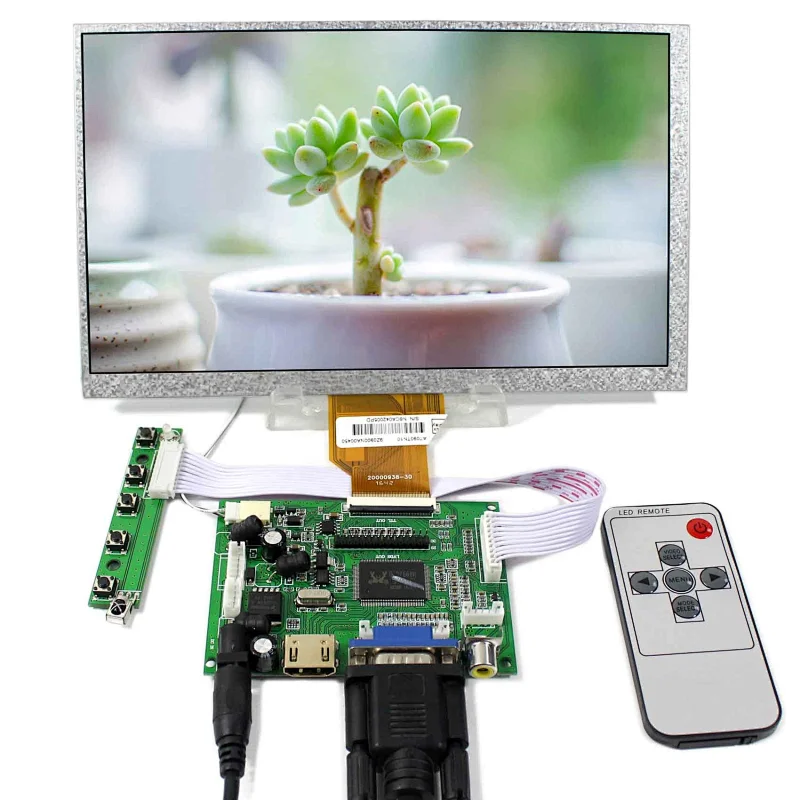

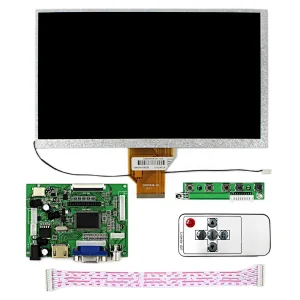

LCD Controller Board 2662 with Remote, 9inch 800x480 AT090TN10 lcd panel
LCD Controller Board 2662 with Remote, 9inch 800x480 AT090TN10 lcd panel
LCD Controller Board 2662 with Remote, 9inch 800x480 AT090TN10 lcd panel
LCD Controller Board 2662 with Remote, 9inch 800x480 AT090TN10 lcd panel
LCD Controller Board 2662 with Remote, 9inch 800x480 AT090TN10 lcd panel
LCD Controller Board 2662 with Remote, 9inch 800x480 AT090TN10 lcd panel
LCD Controller Board 2662 with Remote, 9inch 800x480 AT090TN10 lcd panel
LCD Controller Board 2662 with Remote, 9inch 800x480 AT090TN10 lcd panel
LCD Controller Board 2662 with Remote, 9inch 800x480 AT090TN10 lcd panel
LCD Controller Board 2662 with Remote, 9inch 800x480 AT090TN10 lcd panel
LCD Controller Board 2662 with Remote, 9inch 800x480 AT090TN10 lcd panel
LCD Controller Board 2662 with Remote, 9inch 800x480 AT090TN10 lcd panel
LCD Controller Board 2662 with Remote, 9inch 800x480 AT090TN10 lcd panel

LCD Controller Board 2662 with Remote, 9inch 800x480 AT090TN10 lcd panel

Model NO.
K000126 VS-TY2662-V1+AT090TN10
Minimum order quantity:
1 piece
Supply Ability:
10000.0 piece / Day
Country of Origin:
ShenZhen
Quantity:

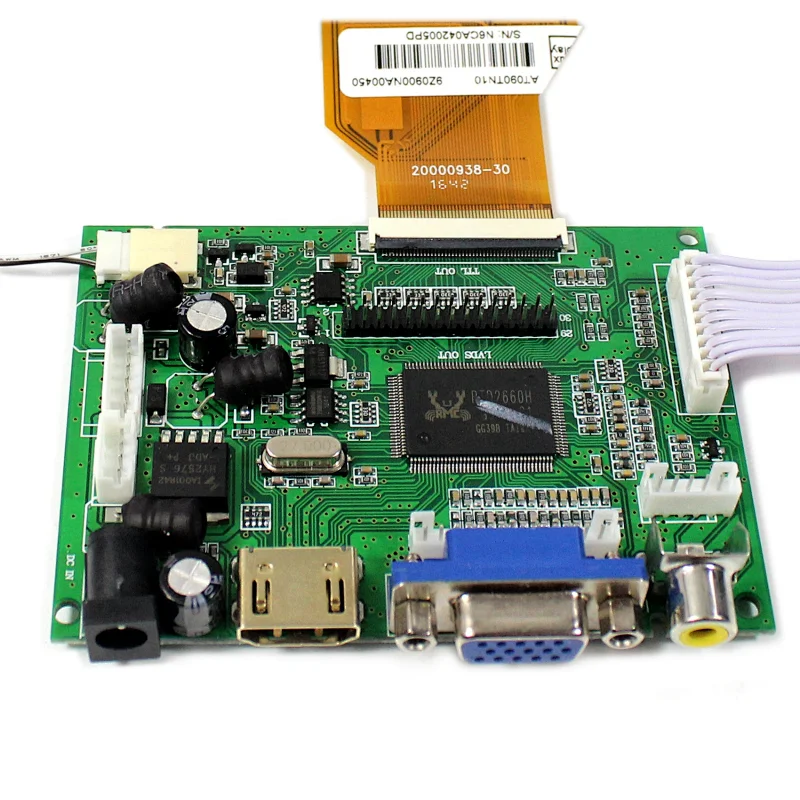

  • LCD Controller Board:
    HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
    50Pin TTL Connector for 7inch~10.1inch LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI VGA AV1 AV2
    Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:91mm x 66mm x 12mm
  • 9"AT090TN10 800X480 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 800(RGB)×480
    Outline Size 211.1× 126.5×5.7 (H×V×D)
    Display Area 198 × 111.7 (H×V)
    Brightness 450 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)
  • Packing list :
    1× HDMI+VGA+2AV LCD Controller Board VS-TY2662-V1
    1× 9inch AT090TN10 800X480 LCD
    1× Keyboard With Cable
    1× Remote Control(Battery Not included)
