Model NO.
VS-TY2662-V808+AT070TN83 V1(K001627)
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 set
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Place of Origin:CN;GUA
  • Model Number:VS-TY2662-V808+AT070TN83 V1(K001627)
  • Brand Name:VS
  • Type:Lcm
  • Size:7 Inch
  • Resolution:800*480
  • Interface:TTL
  • Connector:40pins
  • Product Name:LCD Dispaly Screen
  • Backlight:WLED
  • Item:AT070TN83 V1
  • Display mode:Transflective
  • LCD Controller Board:VS-TY2662-V808
  • Input:VGA

LCD Controller Board VS-TY2662-V808 With 7inch 800x480 AT070TN83 V1 LCD panel

Product Description

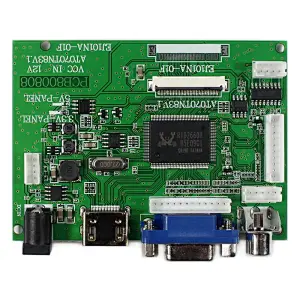

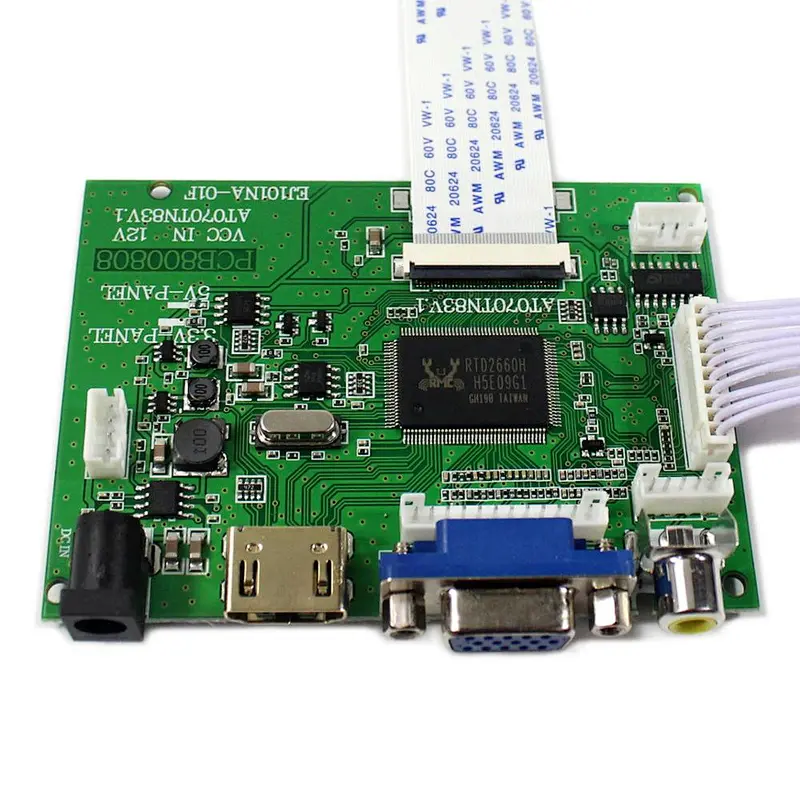

LCD Controller Board VS-TY2662-V808:

Size: 91mm(L)*66mm(W)*12mm(H)

Work for LVDS Interface LCD Screen

40Pin TTL Connector for 7"AT070TN83 LCD Screen

Input Power Adapter:12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

GENERAL PRECAUTIONS:

Don’t wire in the board to power supply before panel is correctly connected

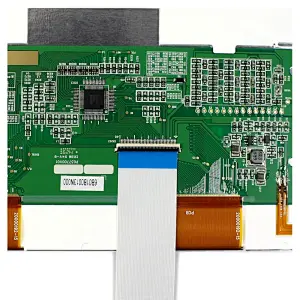

7inch 800x480 LCD Panel AT070TN83 V1:

Display Mode: TN, Normally White, Transmissive

Panel Type: TFT-LCD , LCM


Resolution: 800x480

Aspect Ratio: 15:9

Outline Size: 165(H)×104(V)x5.5(D)mm


Display Area: 152.4 (H)×91.44(V)

Backlight type: LED

Brightness: 300 cd/m² (Typ.)


Contrast Ratio: 500 : 1 (Typ.) (Transmissive)


Signal Interface: TTL 40pin 0.5pitch

Viewing Angle:70/70/50/70 (Typ.)(CR≥10)

Operating Temperature: -20~ 70 °C

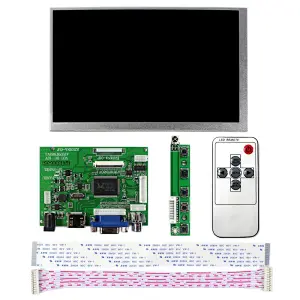

Packaging & Shipping

1× LCD Controller Board VS-TY2662-V808

1× 7inch AT070TN83 800x480 LCD Panel

1× 40Pin Flat Cable

1× Keyboard With Cable

1× Remote Control (Battery Not included)

FAQ

Trade Term:EXW Shenzhen or FOB Shenzhen

Shipping:DHL, UPS, FedEx, TNT, EMS, Hongkong Post

Payment:T/T HSBC, Paypal, Western Union

Our Services

1 year warranty from the day the product sold. Some technical issue can be solved online.
