LCD controller board for 15.4inch LP154WE3 1680x1050 lcd panel
LCD controller board for 15.4inch LP154WE3 1680x1050 lcd panel
LCD controller board for 15.4inch LP154WE3 1680x1050 lcd panel
LCD controller board for 15.4inch LP154WE3 1680x1050 lcd panel
LCD controller board for 15.4inch LP154WE3 1680x1050 lcd panel
LCD controller board for 15.4inch LP154WE3 1680x1050 lcd panel
LCD controller board for 15.4inch LP154WE3 1680x1050 lcd panel
LCD controller board for 15.4inch LP154WE3 1680x1050 lcd panel
LCD controller board for 15.4inch LP154WE3 1680x1050 lcd panel

LCD controller board for 15.4inch LP154WE3 1680x1050 lcd panel

Model NO.:
M.NT68676.2A for 15.4inch 1680x1050 lcd K000415
Delivery:
EXW or FOB Shenzhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Type:TFT
  • Board:hd mi,vga,dvi,audio input
  • Size:139mm(L)*58mm(W)*17mm(H)
  • Product Name:lcd controller board
  • Backlight:lvds
  • Work For:15.4"lcd
  • Supply Voltage:12V
  • Operating Temperature:0~40°C
  • Interface:single/Dual LVDS 8bit
  • Resolution:1680x1050
  • Place of Origin:CN;GUA
  • Type:AD Board
  • Display Size:for 15.4inch
  • Model Number:M.NT68676.2A for 15.4inch 1680x1050 lcd (K000415)
  • Brand Name:VS

LCD Driver board M.NT68676.2A for 15.4inch 1680x1050 LCD Panel

Such as:

LP154WE3-TLA1 LP154WE3-TLA2 LP154WE3-TLB1

B154SW02 V0 B154SW02 V1 B154SW02 V3

Please kindly send us your LCD Panel No. for us to double check the controller board can be used before your purchase.

Product Description

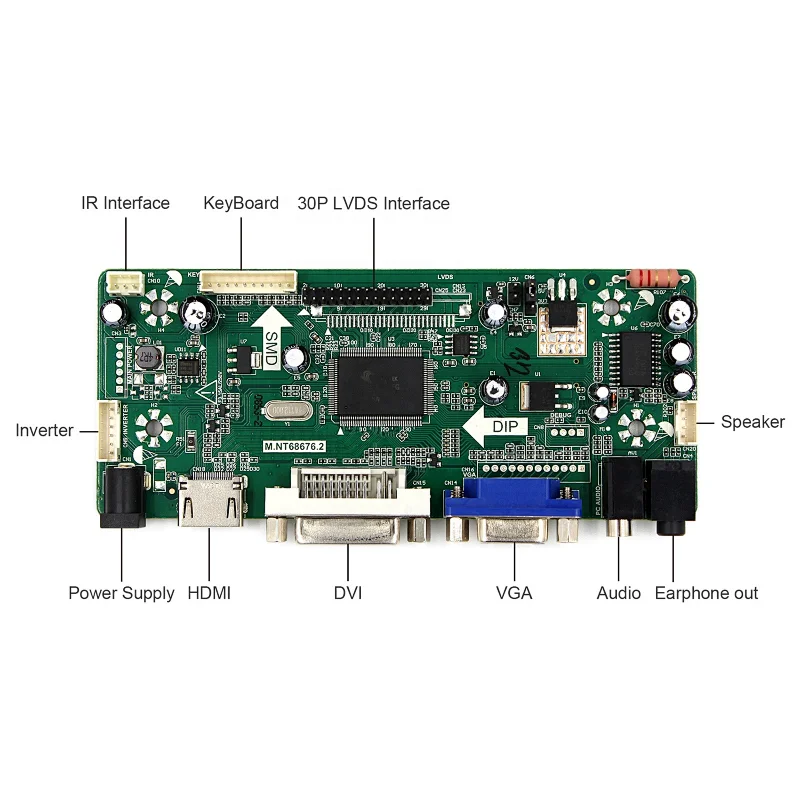

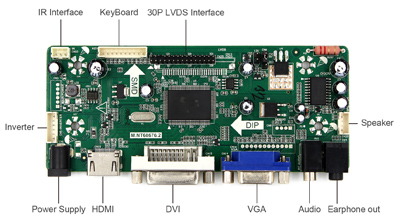

LCD Controller Board M.NT68676.2A:

K001720(3)-4

M.NT68676.2A is a monitor control board, It can support LED/LCD panels which resolution is up to 2048×1152

Size: 139mm(L)*58mm(W)*17mm(H)

Input Power Adapter: 12Vdc More than 2A

OSD LANGUAGE: English, French, German, Italian, Spanish, Japanese, Korean (optional) And So On

KEY FUNCTION: POWER,MENU,VOL+,VOL-,ADJUST/EXIT

Operation temperature: 0~40°C.

Standby Power Consumption < 0.5W(Board Only)

Packaging & Shipping

K000415(2)

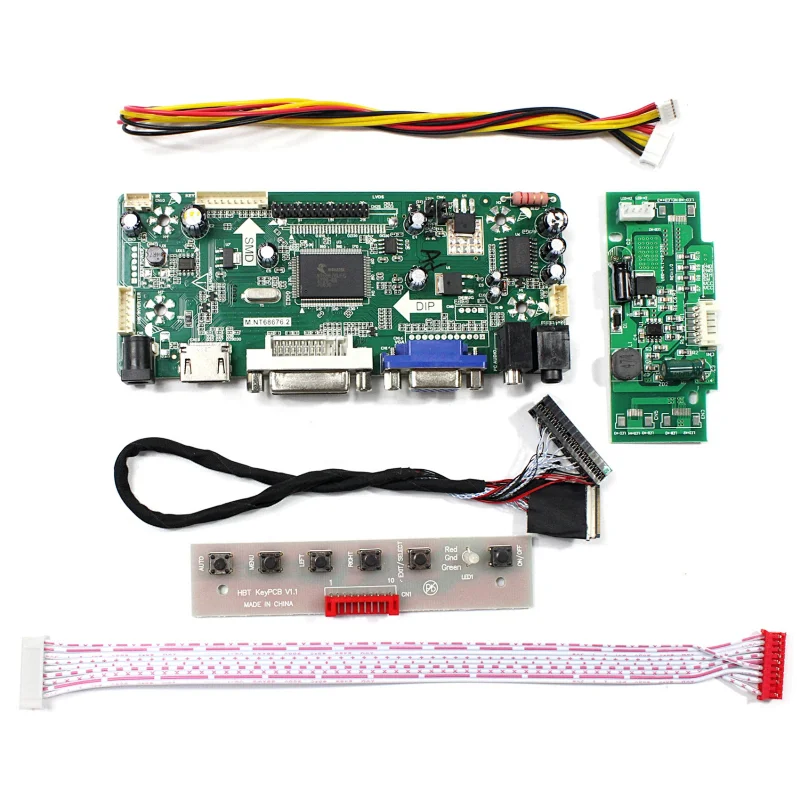

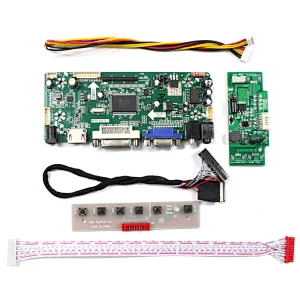

LCD Controller board M.NT68676.2A

1× Converter Board

1× 40Pin Signal Cable

1× Keyboard With Cable

Our Services

1 year warranty from the day the product sold. Some technical issue can be solved online.

FAQ

Trade Term:EXW Shenzhen or FOB Shenzhen

Shipping:DHL, UPS, FedEx, TNT, EMS, Hongkong Post

Payment:T/T HSBC, Paypal, Western Union

Company Information

workshop

VS DISPLAY TECHNOLOGY(HONGKONG) LTDis a Hi-tech manufacturer of liquid crystal displayer.It is establishiment in 1998.The headquarters is located in Shenzhen.

The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications : in telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA), mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.

VS DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.

All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.

Fabrication base covers 4,000sq meters. 2 COB lines, 1 COG lines, 1 TAB lines

QC system: ISO9001
