LCD controller board for 15.4inch LP154WP3 N154C6 1440x900 lcd panel
LCD controller board for 15.4inch LP154WP3 N154C6 1440x900 lcd panel
LCD controller board for 15.4inch LP154WP3 N154C6 1440x900 lcd panel
LCD controller board for 15.4inch LP154WP3 N154C6 1440x900 lcd panel
LCD controller board for 15.4inch LP154WP3 N154C6 1440x900 lcd panel
LCD controller board for 15.4inch LP154WP3 N154C6 1440x900 lcd panel
LCD controller board for 15.4inch LP154WP3 N154C6 1440x900 lcd panel
LCD controller board for 15.4inch LP154WP3 N154C6 1440x900 lcd panel
LCD controller board for 15.4inch LP154WP3 N154C6 1440x900 lcd panel
LCD controller board for 15.4inch LP154WP3 N154C6 1440x900 lcd panel
LCD controller board for 15.4inch LP154WP3 N154C6 1440x900 lcd panel

LCD controller board for 15.4inch LP154WP3 N154C6 1440x900 lcd panel

Model NO.
K001486 VS-RTD2556H-V1+N173HCE-E31
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

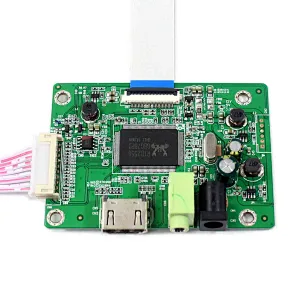

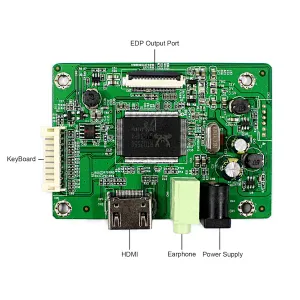

  • LCD Controller Board:
    HDMI Board Work for 30Pin EDP LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <0.3W
    Audio Input: HDMI
    Audio Output: Earphone
    OSD: Brightness Contrast VOL+ VOL- Language And So On
    Language: English
    Board Size: 77mm x 55mm x 16mm

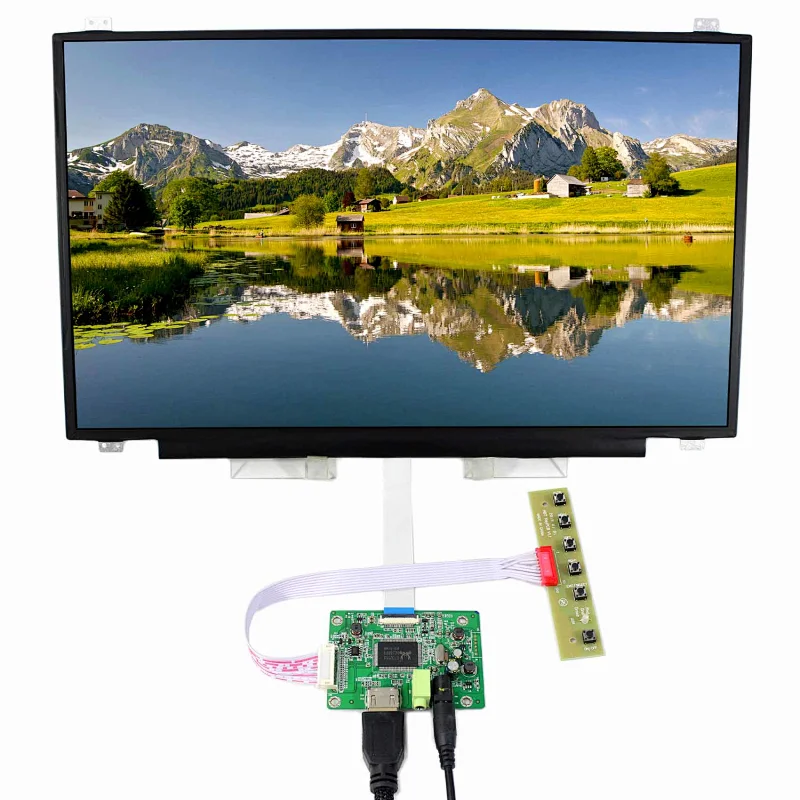

  • 17.3"LCD Screen N173HCE-E31:
    Display Mode AHVA, Normally Black, Transmissive
    Resolution 1920RGB)×1080
    Outline Size 399.5(W)×230.45(H) ×4(D) mm
    Display Area 381.88 (W)×214.81 (H) mm
    Brightness 300 cd/m² (Typ.)
    Contrast Ratio 700:1 (Typ.) (TM)
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface eDP (2 Lanes) , Connector , 30 pins
    Backlight WLED
    Input Voltage 3.3V (Typ.)

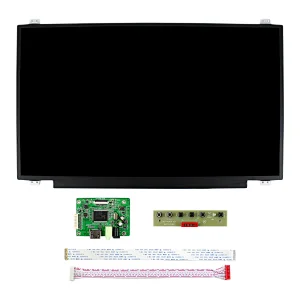

  • Packing list :
    1× HDMI LCD Controller Board VS-RTD2556H-V1
    1×17.3inch N173HCE-E31 1920X1080 IPS LCD Screen
    1× Signal Cable
    1× Keyboard With Cable
