LCD Controller Board Kit with 8inch 1024x600 Touch Screen LCD Panel
LCD Controller Board Kit with 8inch 1024x600 Touch Screen LCD Panel
LCD Controller Board Kit with 8inch 1024x600 Touch Screen LCD Panel
LCD Controller Board Kit with 8inch 1024x600 Touch Screen LCD Panel
LCD Controller Board Kit with 8inch 1024x600 Touch Screen LCD Panel
LCD Controller Board Kit with 8inch 1024x600 Touch Screen LCD Panel
LCD Controller Board Kit with 8inch 1024x600 Touch Screen LCD Panel
LCD Controller Board Kit with 8inch 1024x600 Touch Screen LCD Panel
LCD Controller Board Kit with 8inch 1024x600 Touch Screen LCD Panel

LCD Controller Board Kit with 8inch 1024x600 Touch Screen LCD Panel

Model NO.
K000647 M.NT68676+VS-TCON40-V1+ZJ080NA-08A+VS080TP-A5
Minimum order quantity:
1 set
Supply Ability:
10000 set / Day
Country of Origin:
FOB SHENZHEN
Quantity:

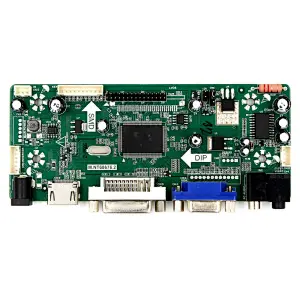

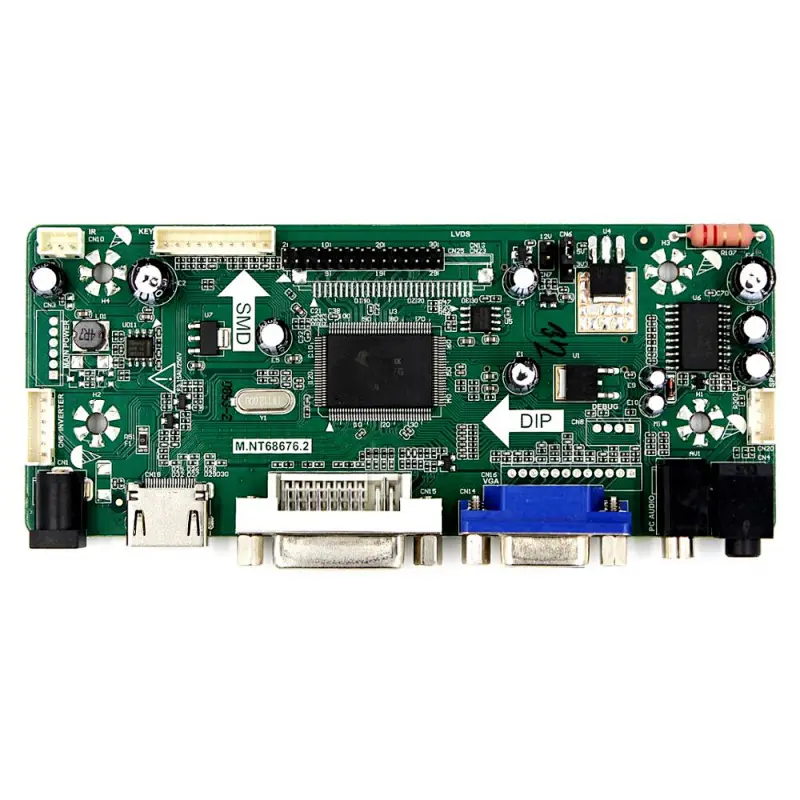

  • LCD Controller Board:
    HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter:12Vdc More than 3A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI DVI VGA
    Audio Input: HDMI
    Audio Output: Speaker Connector
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:125mm x 58mm x 17mm
  • 8"ZJ080NA-08A 1024X600 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 1024RGB)×600
    Outline Size 192.8 × 116.9×6.7 (H×V×D)
    Display Area 176.64 × 99.36(H×V)
    Brightness 500 cd/m² (Typ.)
    Contrast Ratio 700:1 (Typ.) (TM)
    Viewing Angle 75/75/70/75 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)

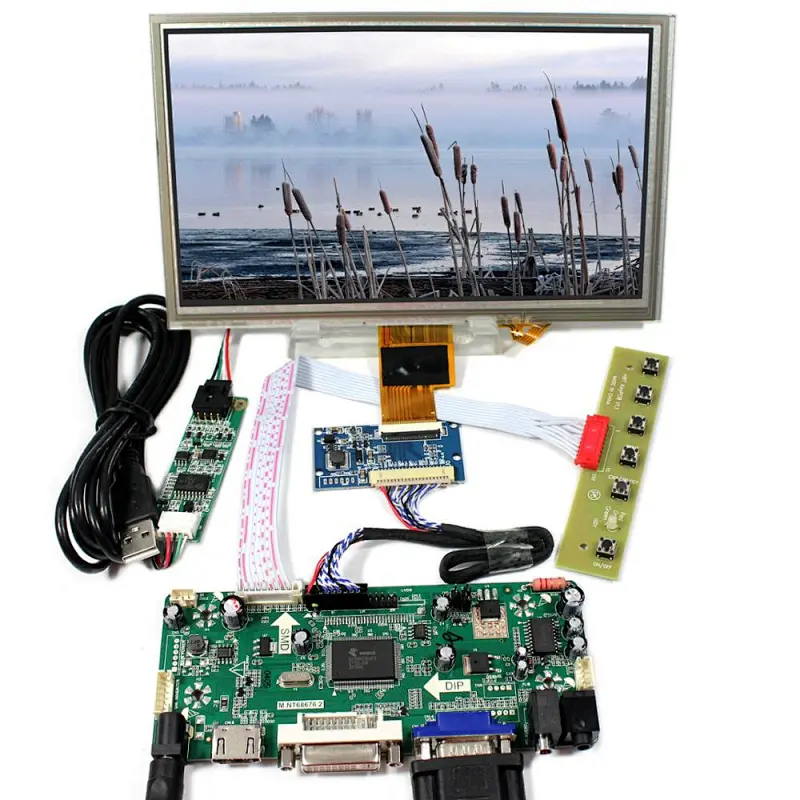

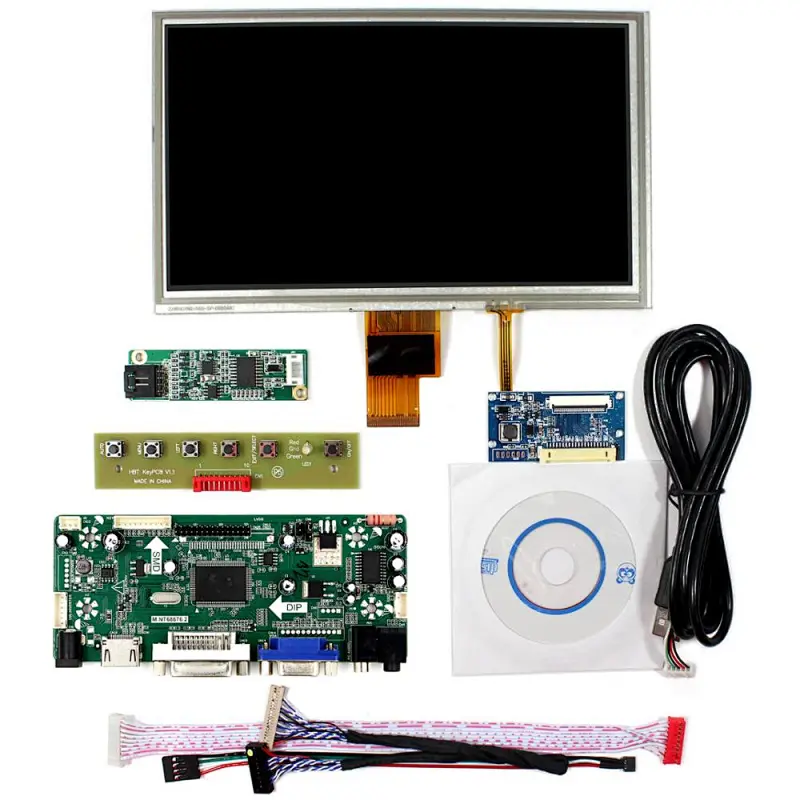

  • Packing list :
    1× HDMI VGA DVI LCD Controller Board M.NT68676
    1× 8inch ZJ080NA-08A 1024X600 LCD With Touch Panel
    1× Tcon Board VS-TCON40-V1
    1× USB Controller Card
    1× USB Cable
    1× Extend Touch Cable
    1× Keyboard With Cable
