Model NO.:
M.NT68676.2A+N173HCE-E31(K001638)
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Size:17.3"
  • Item No:N173HCE-E31
  • Dots Format:1920x1080
  • Display mode:IPS
  • Type:EDP
  • Connector:30 Pins
  • Backlight:WLED
  • Up to Resolution:Up to 2048*1152
  • Audio:Optional
  • Place of Origin:CN;GUA
  • Display Size:17.3inch
  • Model Number:M.NT68676.2A+N173HCE-E31(K001638)
  • Brand Name:VS

LCD Controller Board M.NT68676.2A With 17.3inch 1920x1080 EDP LCD panel N173HCE-E31

Product Description

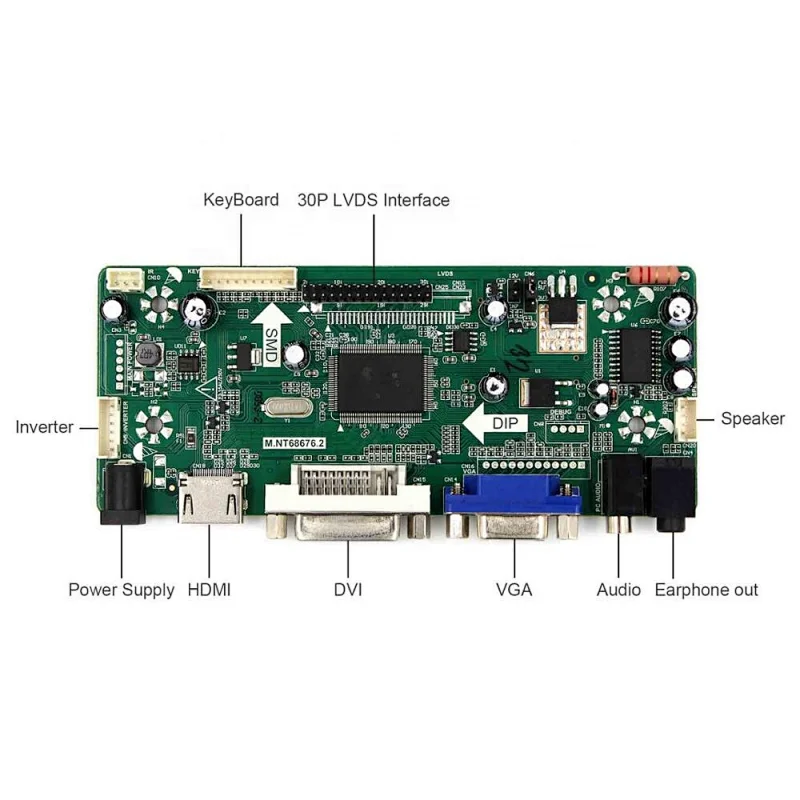

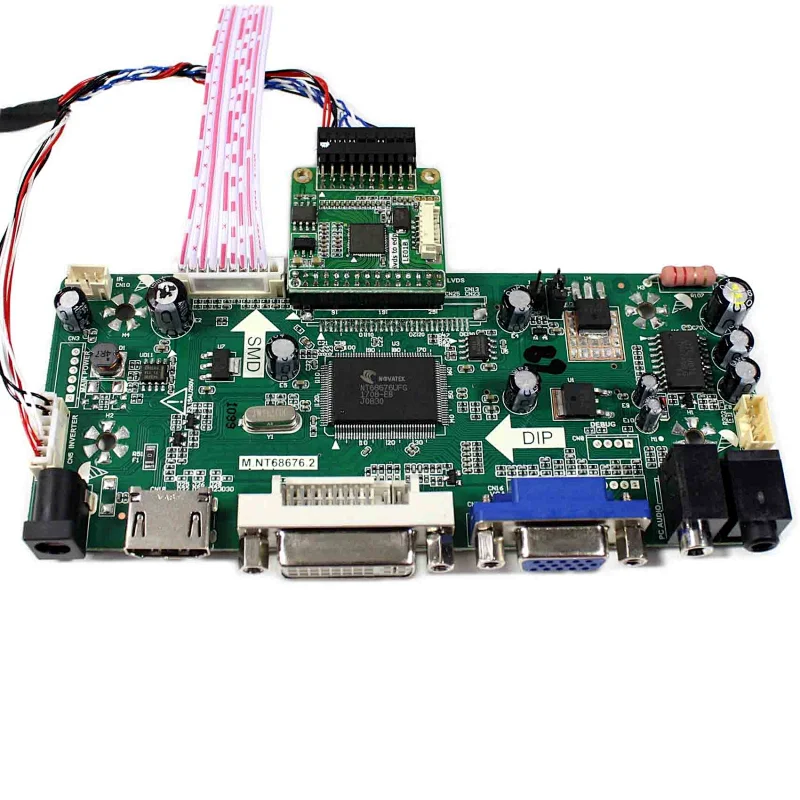

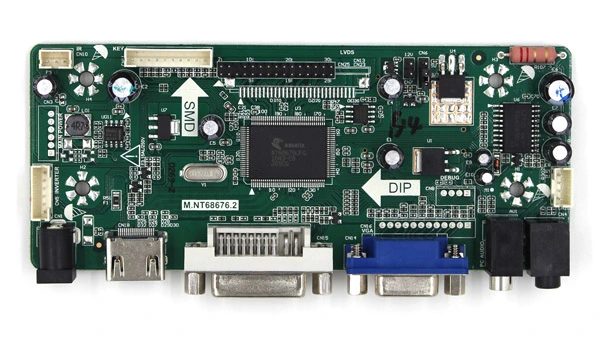

LCD Controller Board M.NT68676.2A:

600

M.NT68676.2A is a monitor control board, It can support LED/LCD panels which resolution is up to 2048×1152

Size: 139mm(L)*58mm(W)*17mm(H)

Input Power Adapter: 12Vdc More than 2A

OSD LANGUAGE: English, French, German, Italian, Spanish, Japanese, Korean (optional) And So On

KEY FUNCTION: POWER,MENU,VOL+,VOL-,ADJUST/EXIT

Operation temperature: 0~40°C

Standby Power Consumption < 0.5W(Board Only)

GENERAL PRECAUTIONS:

Don’t wire in the board to power supply before panel is correctly connected

17.3inch 1920x1080 edp LCD display N173HCE-E31:

Display Mode: AAS, Normally Black, Transmissive

Resolution: 1920×1080

Outline Size: 339.5×230.45×3.57/4.0 (H×V×D)

Display Area: 381.888×214.812(H×V)

Brightness: 300 cd/m² (Typ.)

Contrast Ratio: 700:1 (Typ.) (TM)

Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface: EDP 30pin

Backlight WLED

Input Voltage 3.3V (Typ.)

Packaging & Shipping

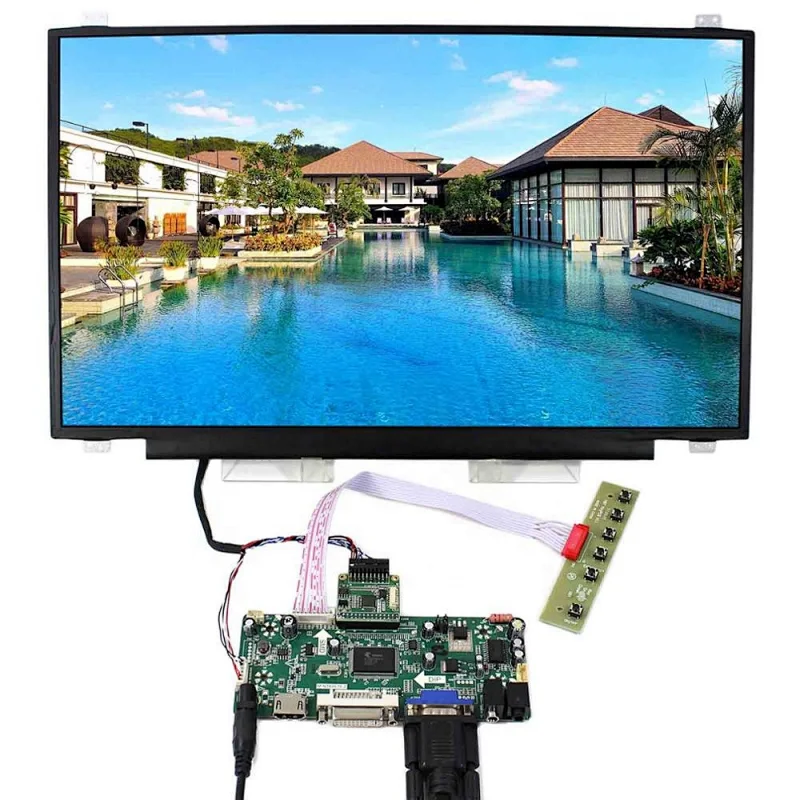

LCD Controller board M.NT68676.2A

1× 17.3inch 1920X1080 LCD Screen N173HCE-E31

1× EDP converter board

1× 30pins eDP cable

1× Keyboard with Wire

Our Services

1 year warranty from the day the product sold. Some technical issue can be solved online.

FAQ

Trade Term:EXW Shenzhen or FOB Shenzhen

Shipping:DHL, UPS, FedEx, TNT, EMS, Hongkong Post

Payment:T/T HSBC, Paypal, Western Union

Company Information

VS DISPLAY TECHNOLOGY(HONGKONG) LTDis a Hi-tech manufacturer of liquid crystal displayer.It is establishiment in 1998.The headquarters is located in Shenzhen.

The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications : in telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA), mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.

VS DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.

All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.

Fabrication base covers 4,000sq meters. 2 COB lines, 1 COG lines, 1 TAB lines

QC system: ISO9001
