Model NO.
K000830 M.NT68676+AAT080TN64+VS-TCON50-V1
Quantity:

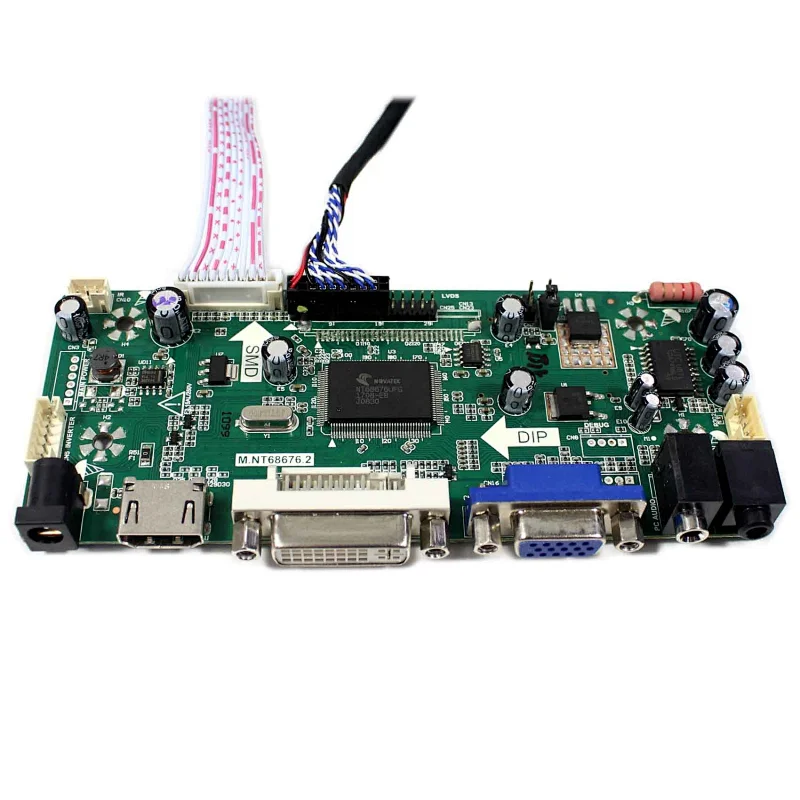

  • LCD Controller Board:
    HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI DVI VGA
    Audio Input: HDMI
    Audio Output: Speaker Connector
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:125mm x 58mm x 17mm
  • 8"AT080TN64 800X480 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 800RGB)×480
    Outline Size 192.6 × 116.9×6.7 (H×V×D)
    Display Area 176.64 × 99.36 (H×V)
    Brightness 450 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)

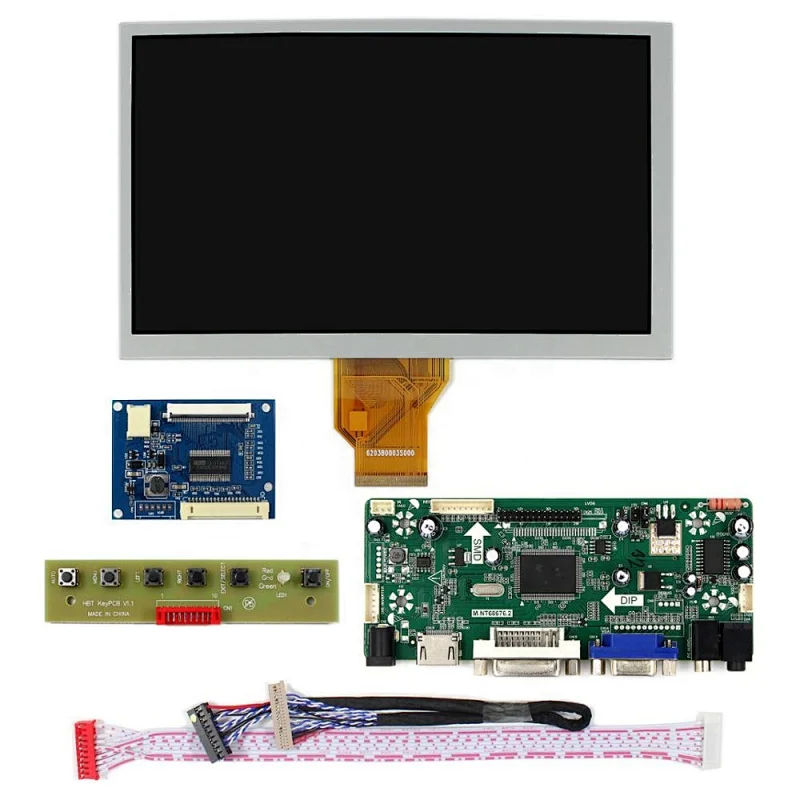

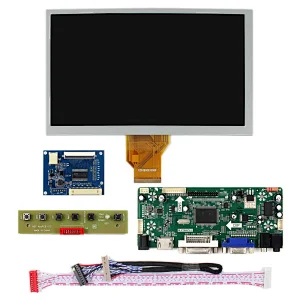

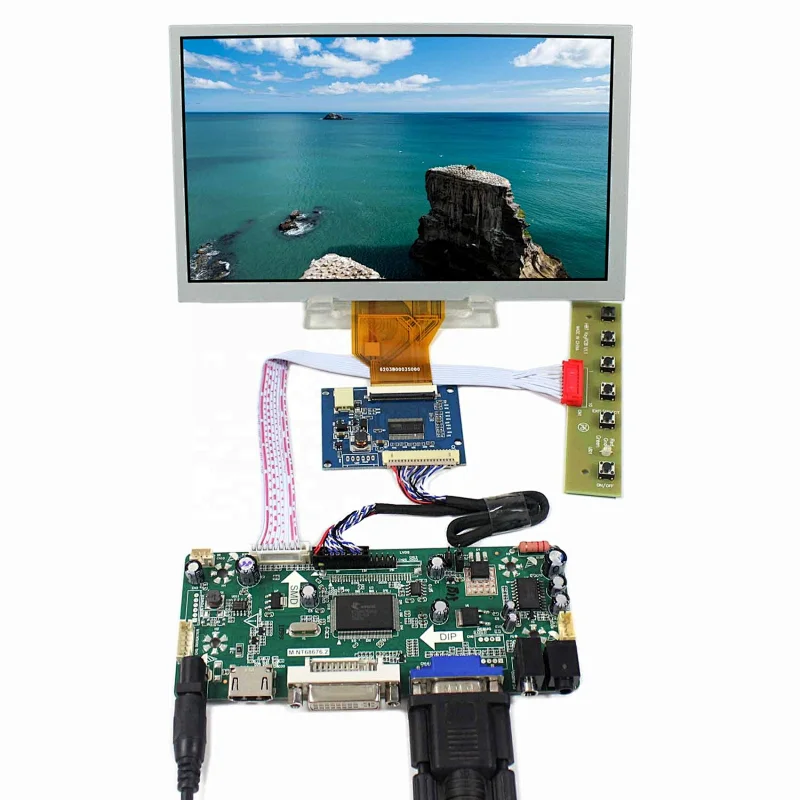

  • Packing list :
    1× HDMI VGA DVI LCD Controller Board M.NT68676
    1× 8inch AT080TN64 800X480 LCD Screen
    1× LVDS Cable

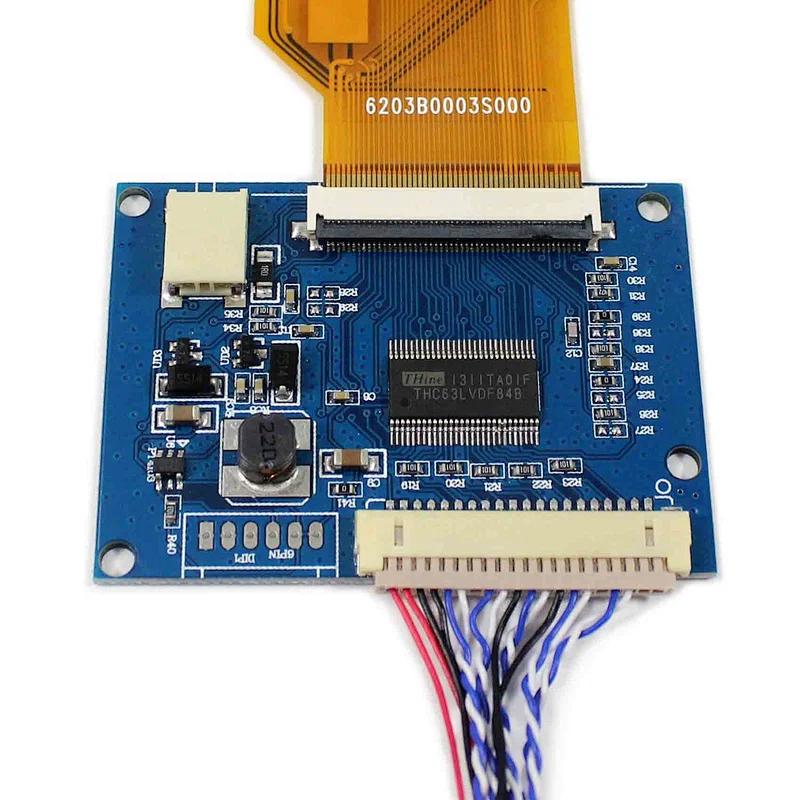

    1× Tcon Board VS-TCON50-V1
    1× Keyboard With Cable
