Model NO.

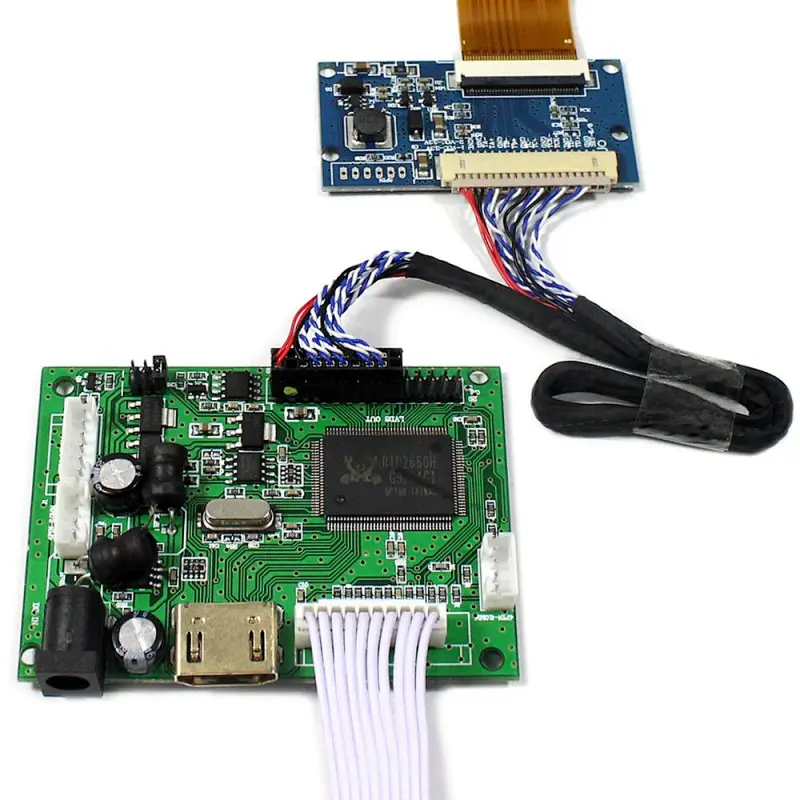

K001114 VS-TY2660H-V1+VS-TCON40-V1+AT070TNA2
Quantity:

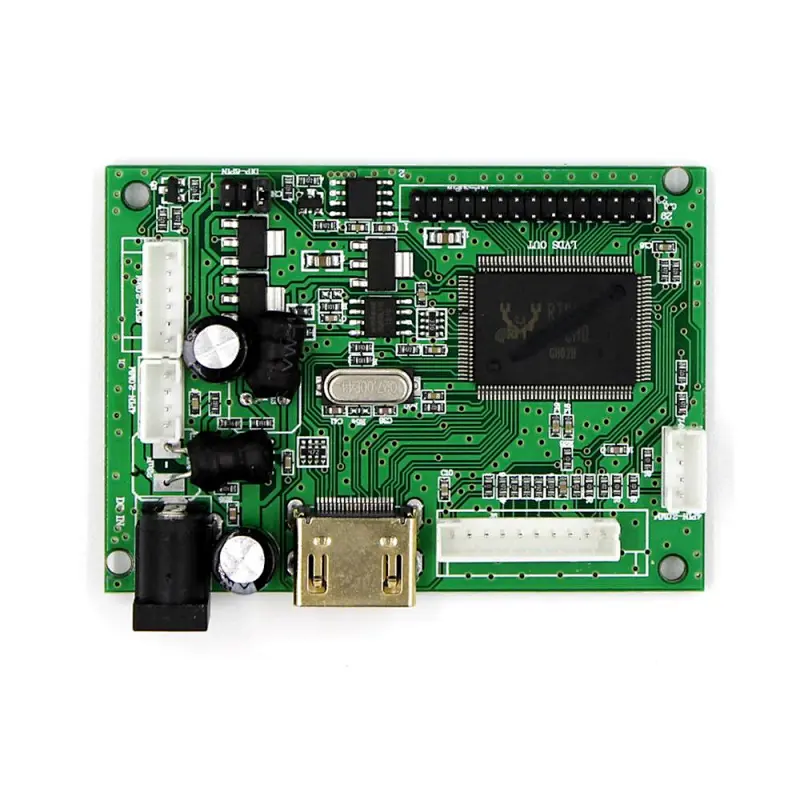

  • LCD Controller Board:
    VGA AV LCD Board Work for 40Pin TTL LCD Screen
    Input Power Adapter:12Vdc More than 1A.
    Come In Standby Model When Not Input Signal
    Standby Model <0.3W
    Video Input: VGA AV
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:110mm x 85mm x 10mm
  • 5.6"AT056TN53 640X480 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 640RGB)×480
    Outline Size 126.5 ×100×6 (H×V×D)
    Display Area 112.9 × 84.7 (H×V)
    Brightness 350 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)
  • Packing list :
    1× VGA AV LCD Controller Board KYV-N2 V1 Support Reversing
    1× 5.6inch AT056TN53 640X480 LCD Screen
    1× Power Supply Cable
    1× Reversing CableConnect To 12V Tt Auto switch To AV2)
    1× VGA Cable
    1× AV Cable
    1× 40Pin Extend Adapter
    1× Keyboard With Cable
