Model NO.
K001617 EJ070NA-03A+TP+TP+2662
Quantity:

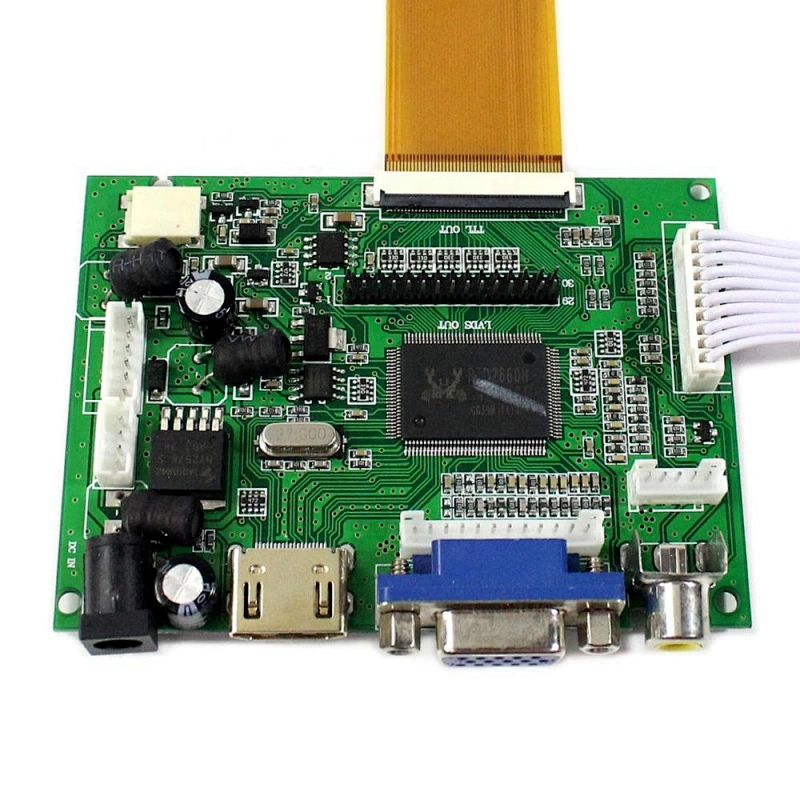

  • LCD Controller Board:
    HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
    50Pin TTL Connector for 7inch~10.1inch LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI VGA AV1 AV2
    Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:91mm x 66mm x 12mm
  • 7"AT070TN93 800X480 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 800RGB)×480
    Outline Size 165.2 × 96.62×3.5(H×V×D)
    Display Area 154.08 × 85.92 (H×V)
    Brightness 250 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 70/70/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)

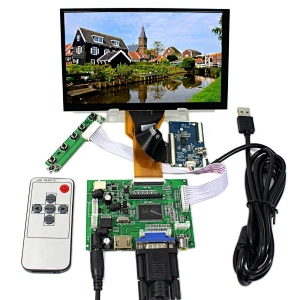

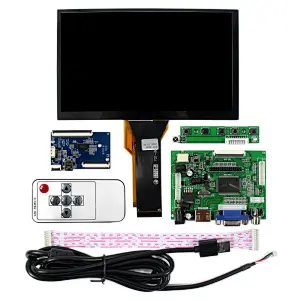

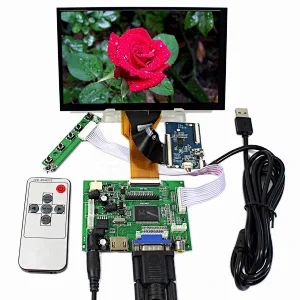

  • Packing list :
    1× HDMI VGA+2AV LCD Controller Board VS-TY2662-V1
    1× 7inch AT070TN93 800X480 LCD With Capacitive Touch Panel VS070TC01-B1

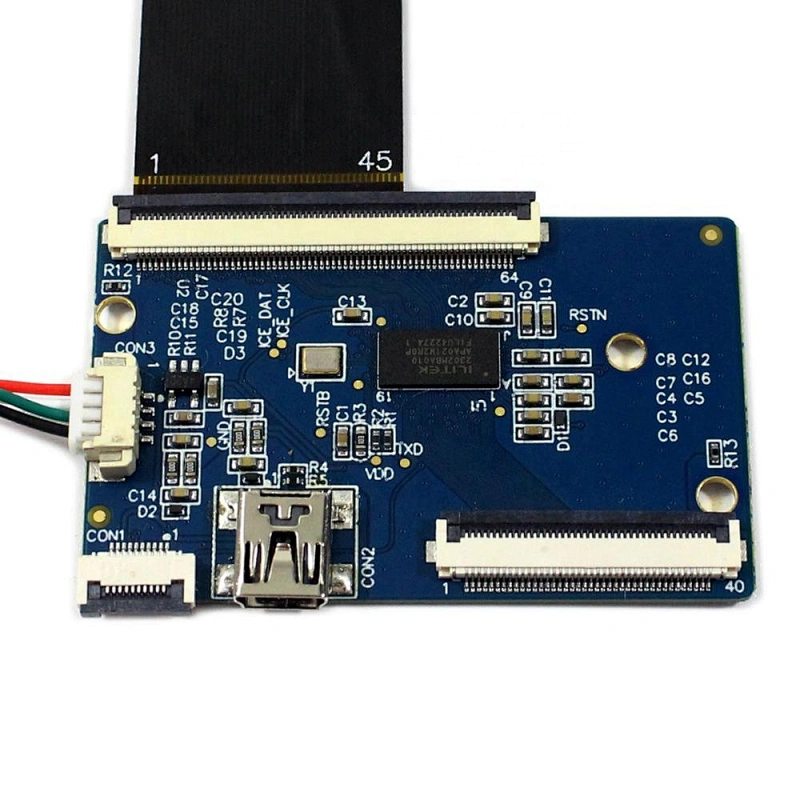

    1× USB Controller Card
    1× USB Cable
    1× Keyboard With Cable
    1× Remote Control(Battery Not included)
