- Type:TFT
- Function:HDMI Board Work for 30Pin EDP LCD Screen
- Input power adapter:12Vdc More than 2A.
- Energy Saving:Come In Standby Model When Not Input Signal
- Standby Model:<0.3W
- Video Input:HDMI
- OSD:Brightness Contrast Auto Language And So On
- Language:English
- Board Size:77mm x 55mm x 16mm
- Compatible Work With:13.3"LCD Screen NV133FHM-N53
- Place of Origin:CN;GUA
- Display Size:13.3inch
- Model Number:K001840 VS-RTD2556H-V1+NV133FHM-N53 1920X1080
- Brand Name:VS
Products Show
Product Description

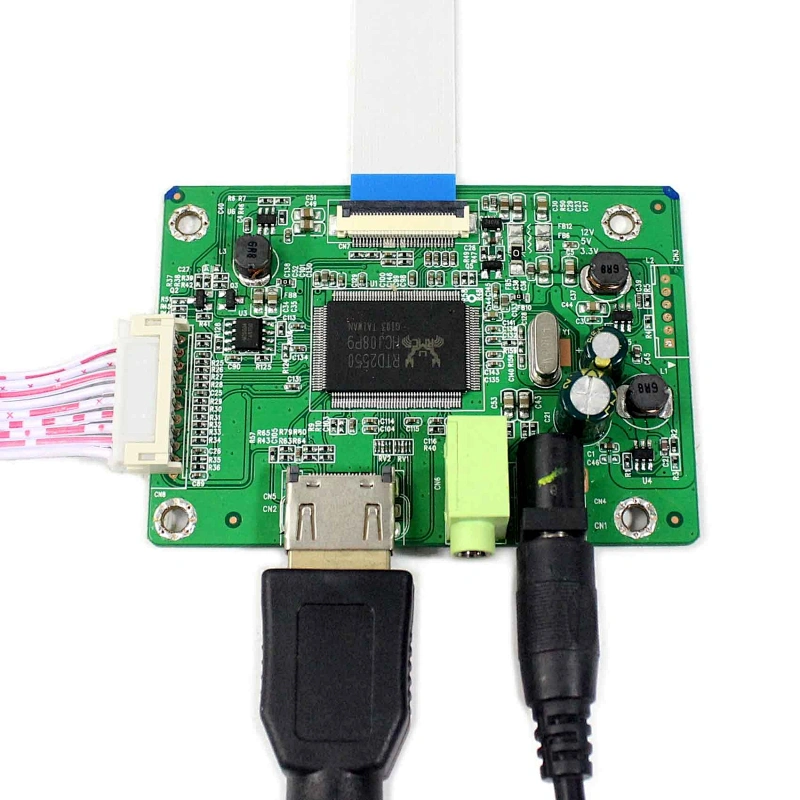

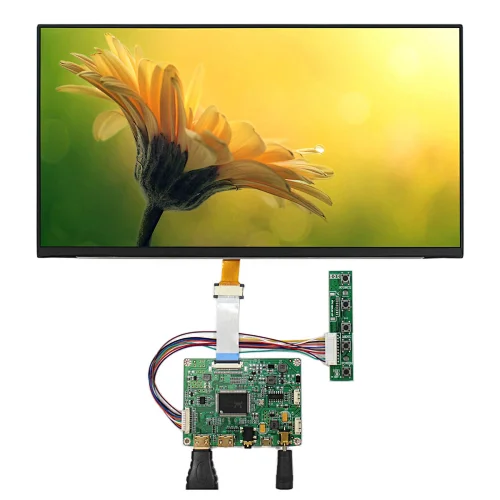

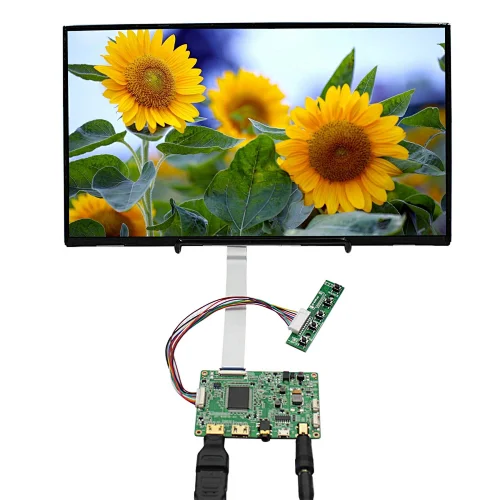

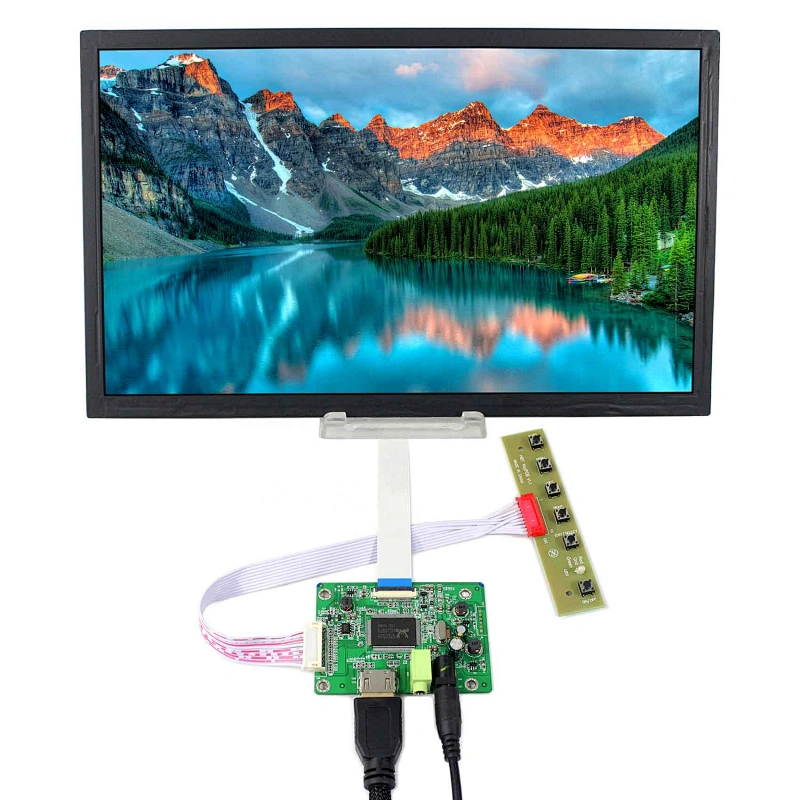

HDMI LCD Controller Board VS-RTD2556H-V1 + 13.3"LCD Screen NV133FHM-N53

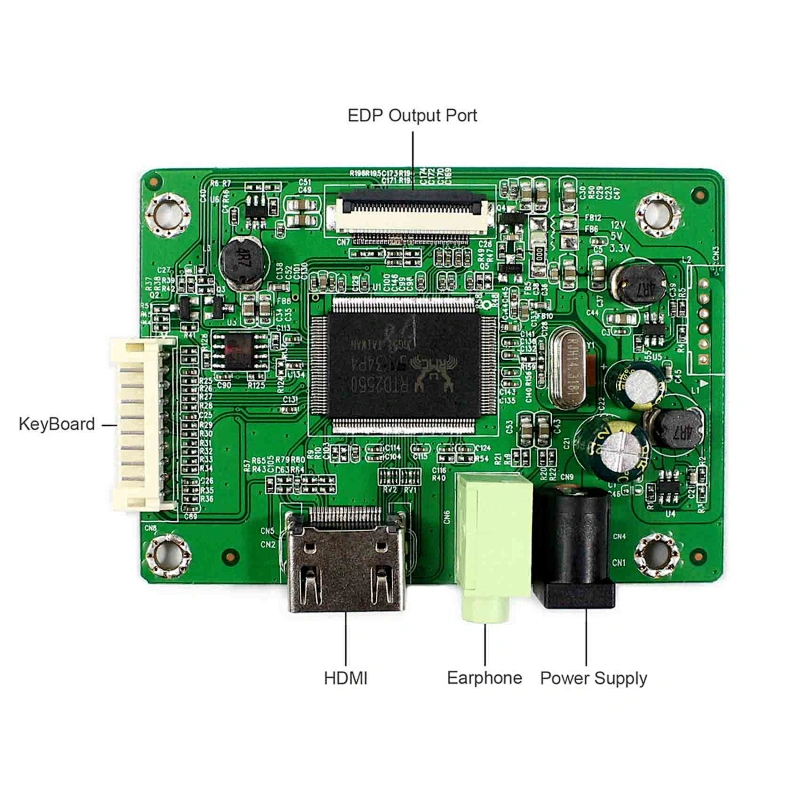

Product name: | HDMI LCD Controller Board VS-RTD2556H-V1 |
Input Power Adapter: | 12Vdc More than 2A |
Standby Model: | <0.3W |
Video Input: | HDMI |
Audio Input: | HDMI |
Audio Output: | Earphone |
OSD: | Brightness Contrast VOL+ VOL- Language And So On |
Language: | English |
Board Size: | 77mm x 55mm x 16mm |
product name: | 13.3"LCD Screen NV133FHM-N53 | ||||||
Display Mode: | ADS, Normally Black, Transmissive | ||||||
Resolution: | 1920RGB)×1080 | ||||||
Outline Size: | 303.35(W)×192.82(H) ×3(D) mm | ||||||
Display Area: | 293.76(W)×165.24(H) mm | ||||||
Brightness: | 300 cd/m² (Typ.) | ||||||
Contrast Ratio: | 800:1 (Typ.) (TM) | ||||||
Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down] | ||||||
Signal Interface: | eDP (2 Lanes) , Connector , 30 pins | ||||||
Backlight: | WLED | ||||||
Input Voltage: | 3.3V (Typ.) | ||||||

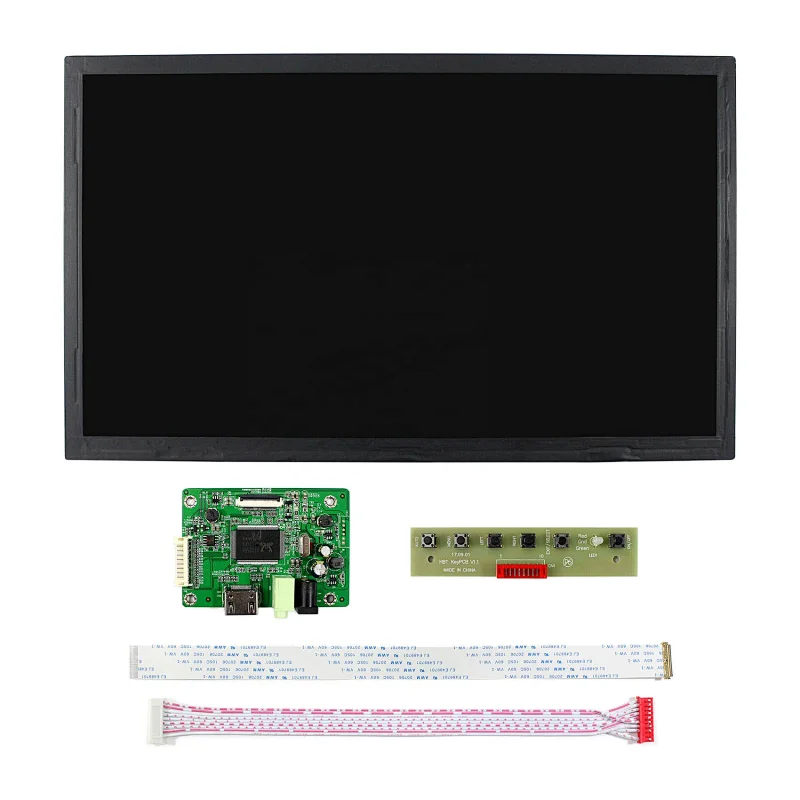

Packing list : | 1× HDMI LCD Controller Board VS-RTD2556H-V1 1×13.3inch NV133FHM-N53 1920X1080 IPS LCD Screen 1× Signal Cable 1× Keyboard With Cable | ||||||
