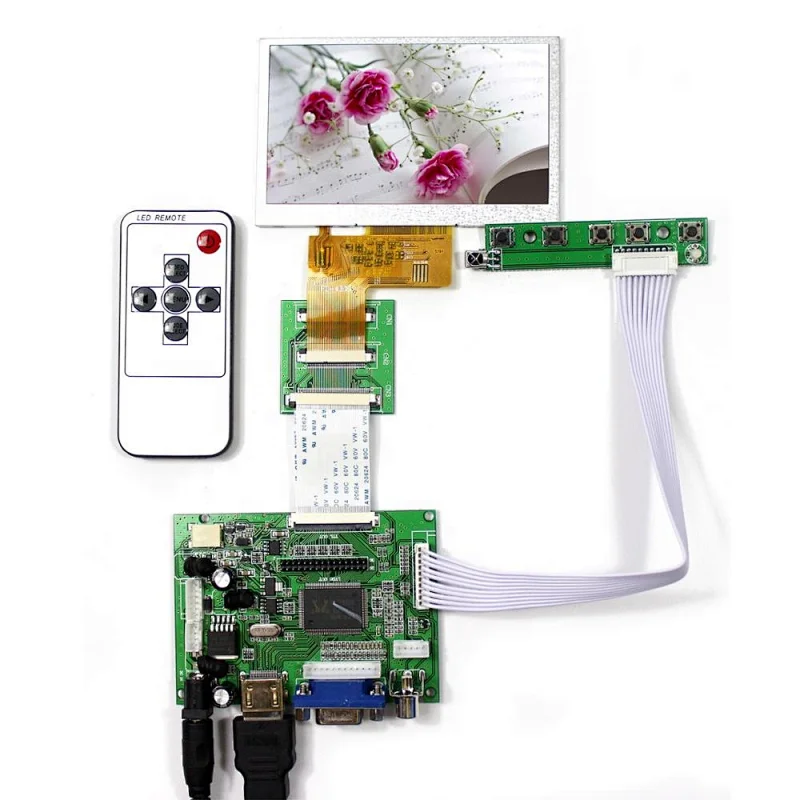

LCD Controller board with 4.3inch AT043TN24 480x234 LCD Screen
LCD Controller board with 4.3inch AT043TN24 480x234 LCD Screen
LCD Controller board with 4.3inch AT043TN24 480x234 LCD Screen
LCD Controller board with 4.3inch AT043TN24 480x234 LCD Screen
LCD Controller board with 4.3inch AT043TN24 480x234 LCD Screen
LCD Controller board with 4.3inch AT043TN24 480x234 LCD Screen
LCD Controller board with 4.3inch AT043TN24 480x234 LCD Screen

LCD Controller board with 4.3inch AT043TN24 480x234 LCD Screen

Model NO.
K000102 VS-TY2662-V1+VS043T-004A
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Supply Ability:
5000 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • LCD Controller Board:
    HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
    50Pin TTL Connector for 7inch~10.1inch LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI VGA AV1 AV2
    Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:91mm x 66mm x 12mm
  • 4.3"VS043T-004A 480X272 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 480RGB)×272
    Outline Size 105.5 × 67.2×3.1 (H×V×D)
    Display Area 95.04 × 53.86 (H×V)
    Brightness 500 cd/m² (Typ.)
    Contrast Ratio 600:1 (Typ.) (TM)
    Viewing Angle 75/75/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)

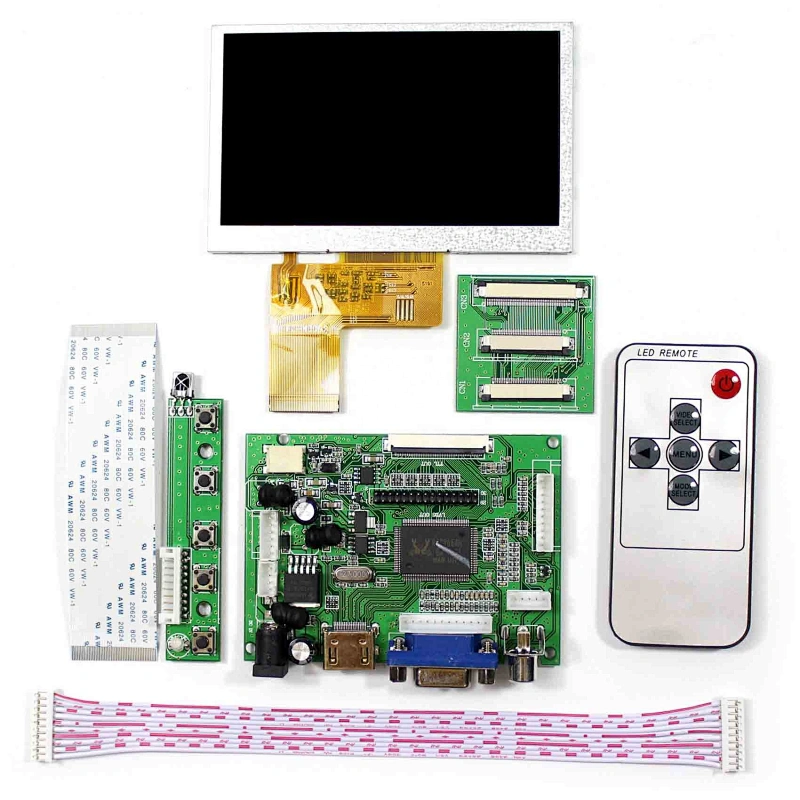

  • Packing list :
    1× HDMI+VGA+2AV LCD Controller Board VS-TY2662-V1
    1× 4.3inch VS043T-004A 480X272 LCD Screen
    1× 50Pin To 40Pin Converter Board
    1× Keyboard With Cable
    1× Remote Control(Battery Not included)


Send Message

* clear input
*

Related Products

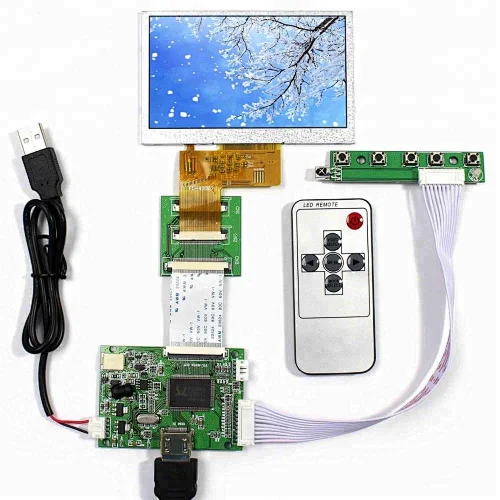

VGA, 2AV Control board 4.3inch TFT 480x272 lcd display with touch Screen panel
VGA, 2AV Control board 4.3inch TFT 480x272 lcd display with touch Screen panel
Model NO. K000101 VS-TY40-V1+VS043T-004A
Controller Board with 4.3inch touch screen lcd
Controller Board with 4.3inch touch screen lcd
Model NO. K000752 VS-TY50-V2+VS043T-004A

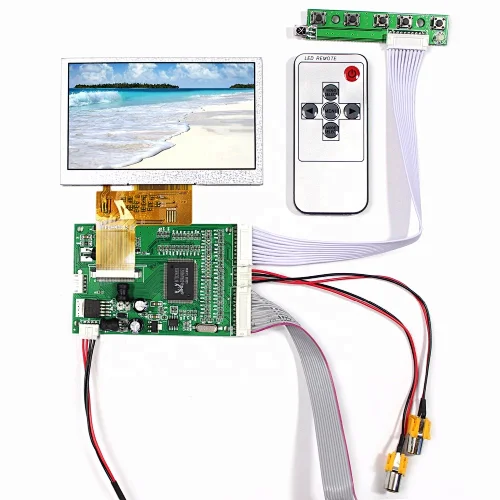

VGA 2AV LCD Board Work for 4.3inch 40Pin TTL TFT LCD Screen 40pin lcd screen lcd screen for tft ttl lcd lcd ttl tft lcd vga manufacturers 4.3" TFT LCD
