LCD Controller Board with 7inch 1280x800 Capacitive Touch screen panel N070ICG-LD1
LCD Controller Board with 7inch 1280x800 Capacitive Touch screen panel N070ICG-LD1
LCD Controller Board with 7inch 1280x800 Capacitive Touch screen panel N070ICG-LD1
LCD Controller Board with 7inch 1280x800 Capacitive Touch screen panel N070ICG-LD1
LCD Controller Board with 7inch 1280x800 Capacitive Touch screen panel N070ICG-LD1
LCD Controller Board with 7inch 1280x800 Capacitive Touch screen panel N070ICG-LD1
LCD Controller Board with 7inch 1280x800 Capacitive Touch screen panel N070ICG-LD1
LCD Controller Board with 7inch 1280x800 Capacitive Touch screen panel N070ICG-LD1
LCD Controller Board with 7inch 1280x800 Capacitive Touch screen panel N070ICG-LD1
LCD Controller Board with 7inch 1280x800 Capacitive Touch screen panel N070ICG-LD1
LCD Controller Board with 7inch 1280x800 Capacitive Touch screen panel N070ICG-LD1
LCD Controller Board with 7inch 1280x800 Capacitive Touch screen panel N070ICG-LD1
LCD Controller Board with 7inch 1280x800 Capacitive Touch screen panel N070ICG-LD1

LCD Controller Board with 7inch 1280x800 Capacitive Touch screen panel N070ICG-LD1

Model NO.
K001655 VS-TY2660H-V1+N070ICG+VS070TC02-B1
Quantity:

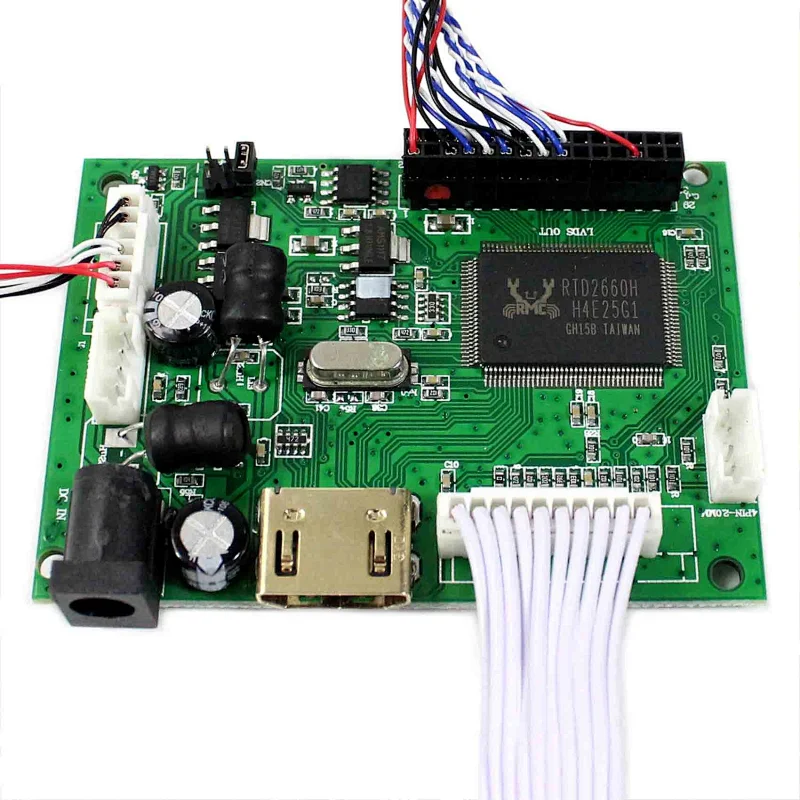

  • LCD Controller Board:
    HDMI LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:74mm x 53mm x 12mm

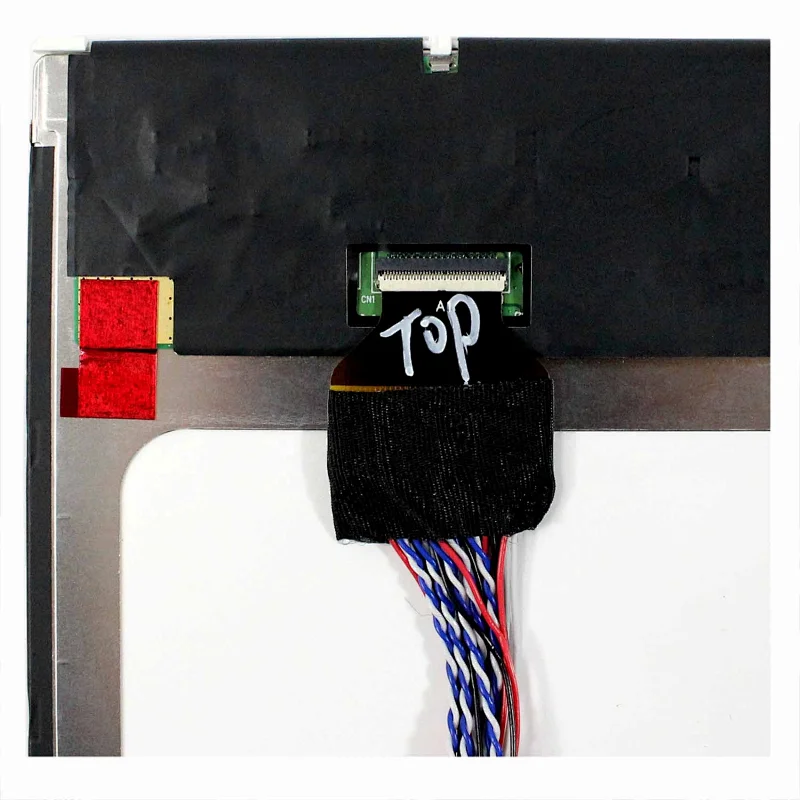

  • 7"N070ICG-LD1 1280X800 LCD Screen:
    Display Mode HS-IPS, Normally Black, Transmissive
    Resolution 1280（RGB)×800
    Outline Size 161 ×107×4.5 (H×V×D)
    Display Area 149.76 × 93.6 (H×V)
    Brightness 400 cd/m² (Typ.)
    Contrast Ratio 800:1 (Typ.) (TM)
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface  LVDS (1 ch, 8-bit) , Connector , 39 pins
    Backlight LED
    Input Voltage 3.3V (Typ.)

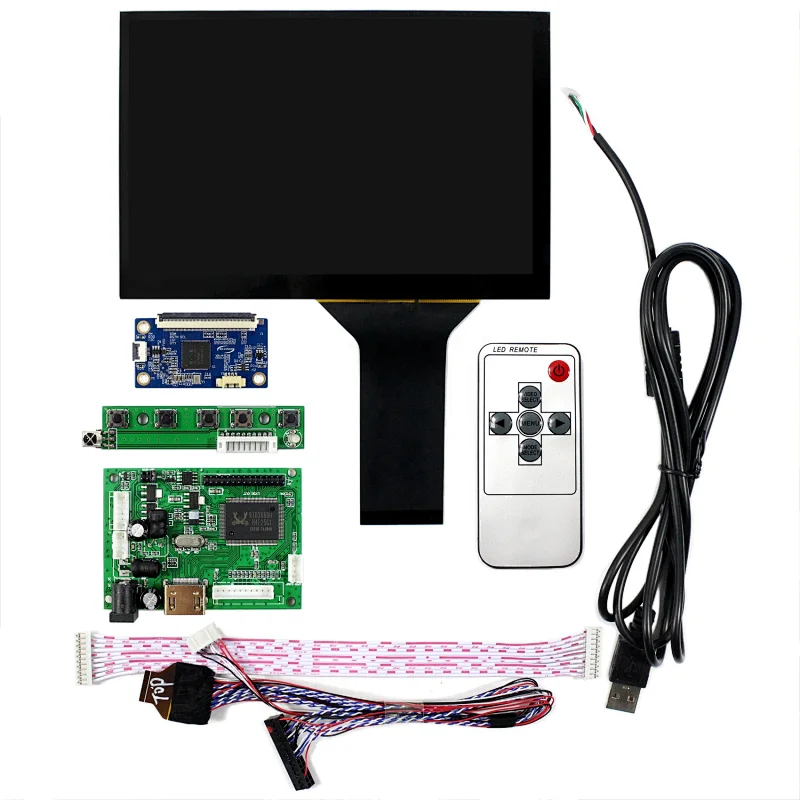

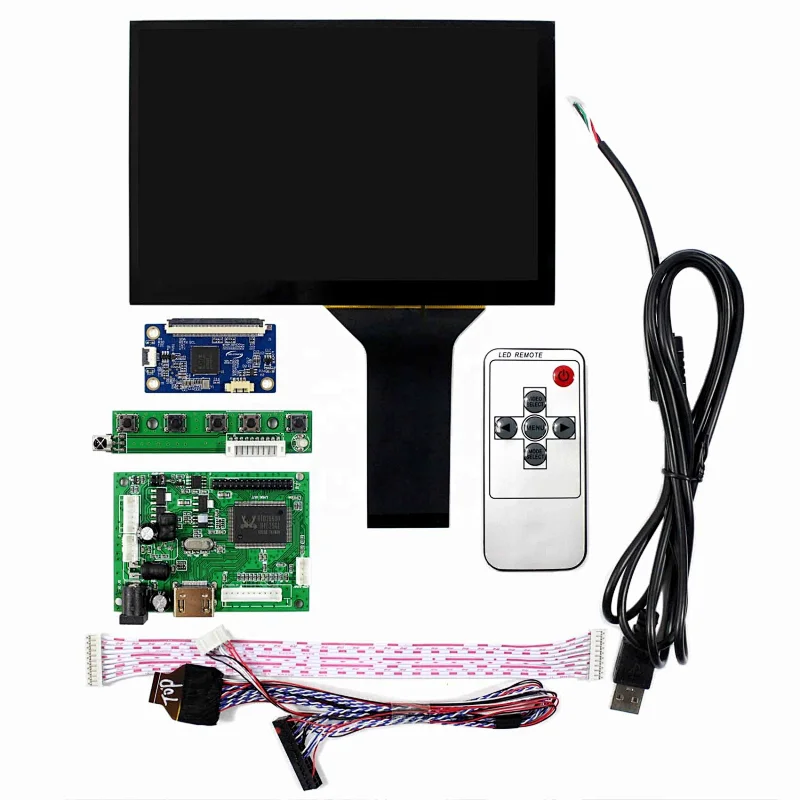

  • Packing list :
    1× HDMI LCD Controller Board VS-TY2660H-V1
    1× 7inch N070ICG-LD1 1280X800 LCD With Capacitive Touch Panel VS070TC02-B1
    1× LVDS Cable
    1× USB Controller Card
    1× USB Cable
    1× Keyboard With Cable
    1× Remote Control (Battery Not included)
