SHENZHEN VS DISPLAY ELECTRONICS Co.,LTD518101About Us1101, Building 3 , ZhongLiang Chuangxin R&D Center, No 8 Baoan Liuxian Road, Shenzhen City, GD, ChinaVS DISPLAY TECHNOLOGY(Hong Kong) LTD SHENZHEN VS DISPLAY ELECTRONICS Co.,LTD is a Hi-tech manufacturer of liquid crystal displayer.It is establishiment in 2012.The headquarters is located in Shenzhen.
The products include Character lcd module, Graphic LCD Module, TFT LCD Module, LCD Controller Board, Touch Panel etc.SHENZHEN VS DISPLAY ELECTRONICS Co.,LTD518101About Us1101, Building 3 , ZhongLiang Chuangxin R&D Center, No 8 Baoan Liuxian Road, Shenzhen City, GD, ChinaVS DISPLAY TECHNOLOGY(Hong Kong) LTD SHENZHEN VS DISPLAY ELECTRONICS Co.,LTD is a Hi-tech manufacturer of liquid crystal displayer.It is establishiment in 2012.The headquarters is located in Shenzhen.
The products include Character lcd module, Graphic LCD Module, TFT LCD Module, LCD Controller Board, Touch Panel etc.SHENZHEN VS DISPLAY ELECTRONICS Co.,LTDSHENZHEN VS DISPLAY ELECTRONICS Co.,LTDSHENZHEN VS DISPLAY ELECTRONICS Co.,LTDSHENZHEN VS DISPLAY ELECTRONICS Co.,LTDSHENZHEN VS DISPLAY ELECTRONICS Co.,LTDSHENZHEN VS DISPLAY ELECTRONICS Co.,LTDSHENZHEN VS DISPLAY ELECTRONICS Co.,LTD

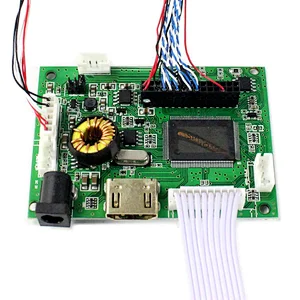

LCD Controller Board: HDMI LCD Board Work for LVDS Interface LCD Screen Input Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <1W Video Input: HDMI Audio Input: HDMI Audio Output: Speaker (4Pin PH2.0 connector) OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size: 74mm x 53mm x 12mm

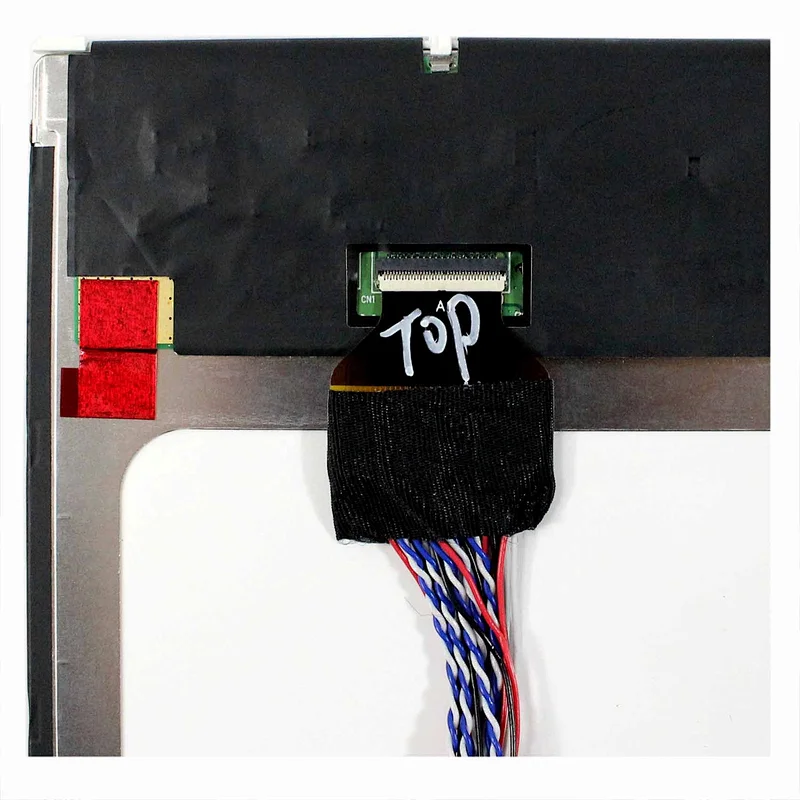

7"N070ICG-LD1 1280X800 LCD Screen: Display Mode HS-IPS, Normally Black, Transmissive Resolution 1280（RGB)×800 Outline Size 161 ×107×4.5 (H×V×D) Display Area 149.76 × 93.6 (H×V) Brightness 400 cd/m² (Typ.) Contrast Ratio 800:1 (Typ.) (TM) Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface LVDS (1 ch, 8-bit) , Connector , 39 pins Backlight LED Input Voltage 3.3V (Typ.)

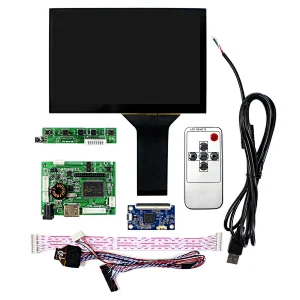

Packing list : 1× HDMI Audio LCD Controller Board VS-TY2660H-V661 1× 7inch N070ICG-LD1 1280X800 LCD With Capacitive Touch Panel VS070TC02-B1 1× LVDS Cable 1× USB Controller Card 1× USB Cable 1× Keyboard With Cable 1× Remote Control (Battery Not included)
