LCD Controller Board with Audio 7 inch 1280x800 N070ICG LD1 LCD Panel Capacitive Touch Screen
LCD Controller Board with Audio 7 inch 1280x800 N070ICG LD1 LCD Panel Capacitive Touch Screen
LCD Controller Board with Audio 7 inch 1280x800 N070ICG LD1 LCD Panel Capacitive Touch Screen
LCD Controller Board with Audio 7 inch 1280x800 N070ICG LD1 LCD Panel Capacitive Touch Screen
LCD Controller Board with Audio 7 inch 1280x800 N070ICG LD1 LCD Panel Capacitive Touch Screen
LCD Controller Board with Audio 7 inch 1280x800 N070ICG LD1 LCD Panel Capacitive Touch Screen
LCD Controller Board with Audio 7 inch 1280x800 N070ICG LD1 LCD Panel Capacitive Touch Screen
LCD Controller Board with Audio 7 inch 1280x800 N070ICG LD1 LCD Panel Capacitive Touch Screen
LCD Controller Board with Audio 7 inch 1280x800 N070ICG LD1 LCD Panel Capacitive Touch Screen
LCD Controller Board with Audio 7 inch 1280x800 N070ICG LD1 LCD Panel Capacitive Touch Screen
LCD Controller Board with Audio 7 inch 1280x800 N070ICG LD1 LCD Panel Capacitive Touch Screen
LCD Controller Board with Audio 7 inch 1280x800 N070ICG LD1 LCD Panel Capacitive Touch Screen
LCD Controller Board with Audio 7 inch 1280x800 N070ICG LD1 LCD Panel Capacitive Touch Screen

LCD Controller Board with Audio 7 inch 1280x800 N070ICG LD1 LCD Panel Capacitive Touch Screen

Model NO.
K001707 VS-TY2662-V196 +N070ICG-LD1+TP
Quantity:

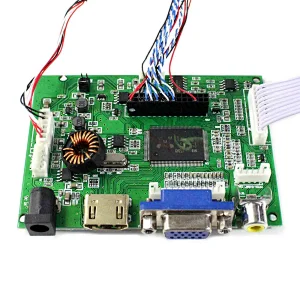

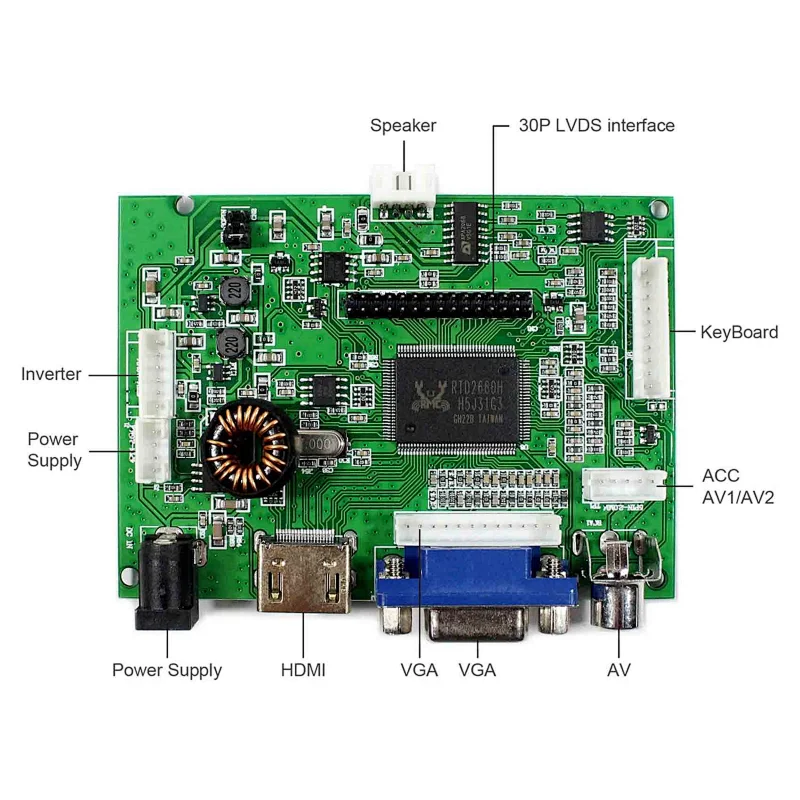

  • LCD Controller Board:
    HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI VGA AV1 AV2
    Audio Input: HDMI
    Audio Output: Speaker (4Pin PH2.0 connector)
    Reversing: Support. It Automatically Switch To AV2 When Connector ACC to 12V
    OSD: Brightness Contrast Auto Language And So On
    Language : English French German Spanish Italian And So On
    Board Size: 91mm x 66mm x 12mm
  • 7"N070ICG-LD1 1280X800 LCD Screen:
    Display Mode HS-IPS, Normally Black, Transmissive
    Resolution 1280（RGB)×800
    Outline Size 161 ×107×4.5 (H×V×D)
    Display Area 149.76 × 93.6 (H×V)
    Brightness 400 cd/m² (Typ.)
    Contrast Ratio 800:1 (Typ.) (TM)
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]

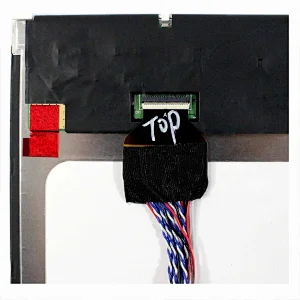

    Signal Interface LVDS (1 ch, 8-bit) , Connector , 39 pins
    Backlight LED
    Input Voltage 3.3V (Typ.)

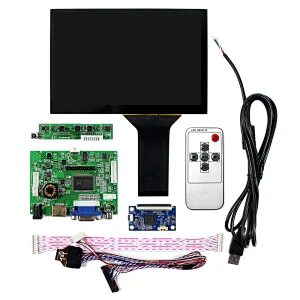

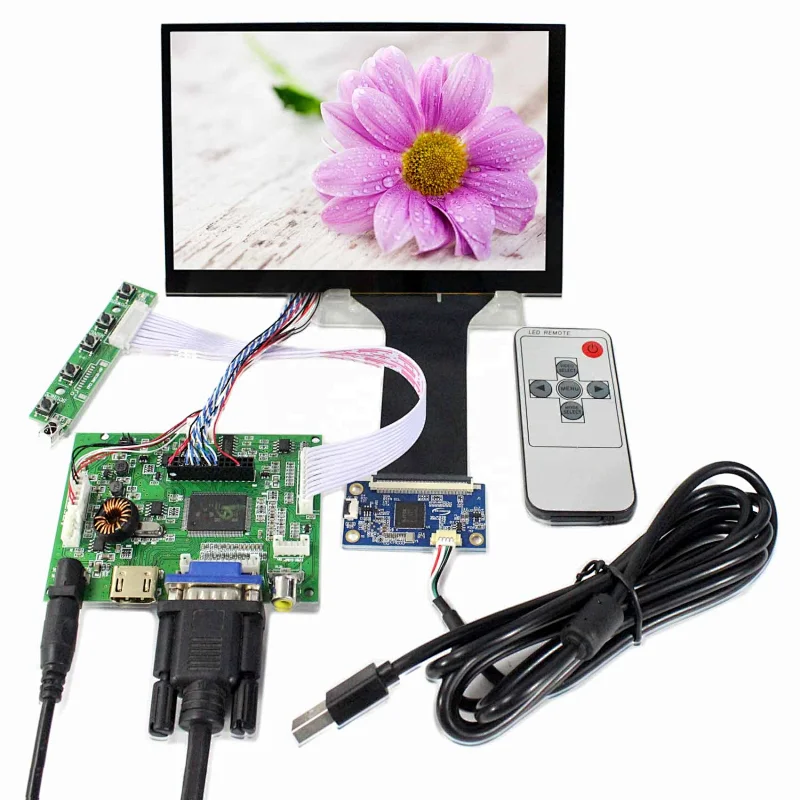

  • Packing list :
    1× HDMI VGA 2AV Audio LCD Controller Board VS-TY2662-V196
    1× 7inch N070ICG-LD1 1280X800 LCD With Capacitive Touch Panel VS070TC02-B1
    1× LVDS Cable
    1× USB Controller Card
    1× USB Cable
    1× Keyboard With Cable
    1× Remote Control (Battery Not included)
