Model NO.
K000321 VS-TY2662-V1+ 12.1inch 1024x768 lcd+TP
Quantity:

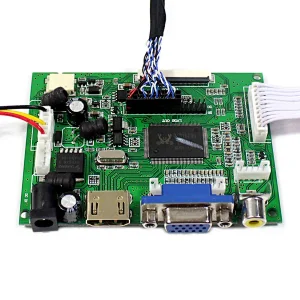

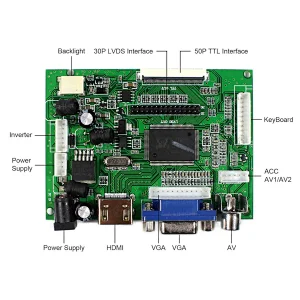

  • LCD Controller Board:
    HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
    50Pin TTL Connector for 7inch~10.1inch LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI VGA AV1 AV2
    Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:91mm x 66mm x 12mm

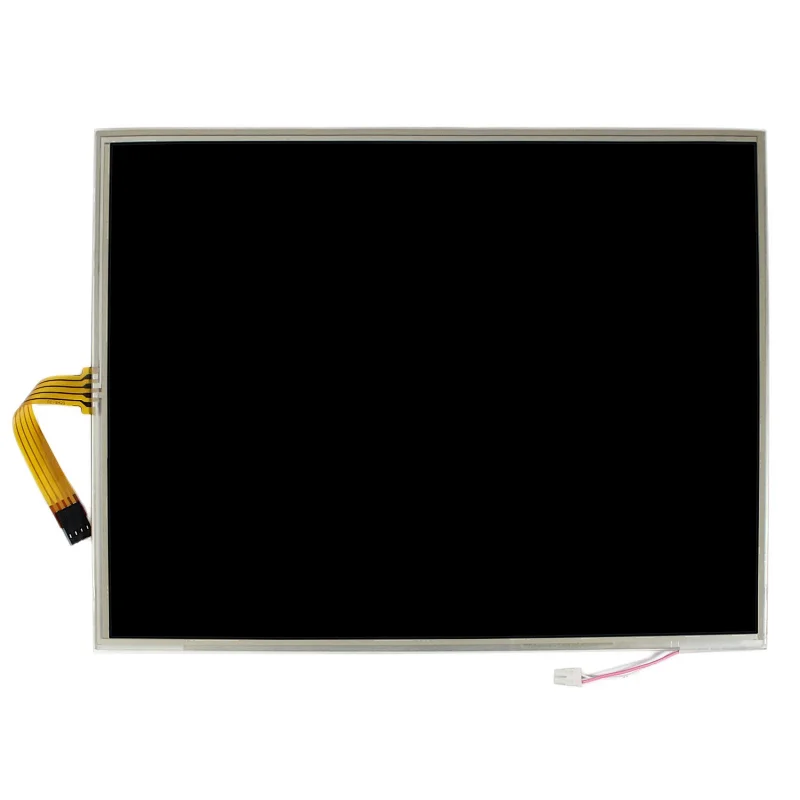

  • 12.1"1024X768 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 1024RGB)×768
    Outline Size 261× 198×5 (H×V×D)
    Display Area 246 × 184.5 (H×V)
    Brightness 200 cd/m² (Typ.)
    Contrast Ratio 400:1 (Typ.) (TM)
    Viewing Angle 45/45/15/45 (Typ.)(CR≥10) [Left / Right / Up / Down

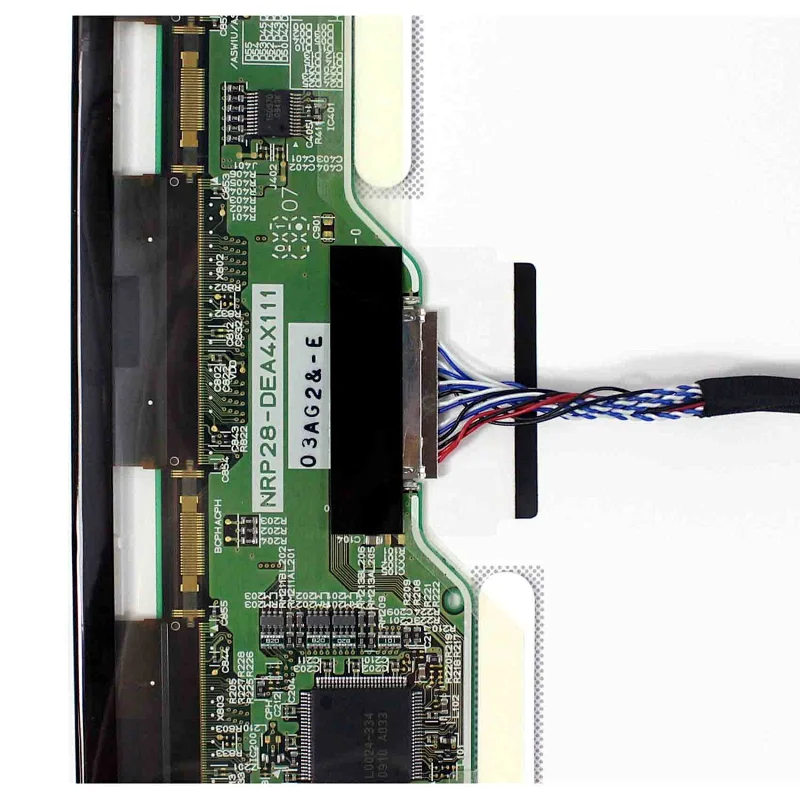

    Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector
    Backlight 1 CCFL
    Input Voltage 3.3V (Typ.)

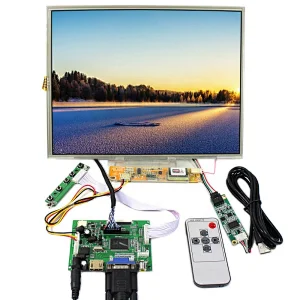

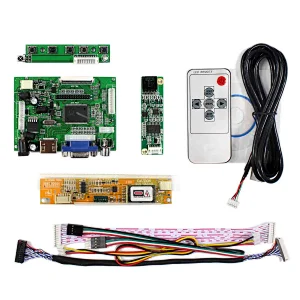

  • Packing list :
    1×HDMI+VGA+2AV LCD Controller Board VS-TY2662-V1
    1× 12.1inch 1024x768 LCD Screen With Resistive Touch Panel VS121TP-A1
    1× LVDS Cable
    1× Inverter Board
    1× USB Controller Card
    1× USB Cable
    1× Extend Touch Cable
    1× Keyboard With Cable
    1× Remote Control(Battery Not included)
