lcd controller board with raspberry pi tft for 12.1 inch TFT LCD Module
lcd controller board with raspberry pi tft for 12.1 inch TFT LCD Module
lcd controller board with raspberry pi tft for 12.1 inch TFT LCD Module
lcd controller board with raspberry pi tft for 12.1 inch TFT LCD Module
lcd controller board with raspberry pi tft for 12.1 inch TFT LCD Module
lcd controller board with raspberry pi tft for 12.1 inch TFT LCD Module
lcd controller board with raspberry pi tft for 12.1 inch TFT LCD Module
lcd controller board with raspberry pi tft for 12.1 inch TFT LCD Module
lcd controller board with raspberry pi tft for 12.1 inch TFT LCD Module
lcd controller board with raspberry pi tft for 12.1 inch TFT LCD Module
lcd controller board with raspberry pi tft for 12.1 inch TFT LCD Module

lcd controller board with raspberry pi tft for 12.1 inch TFT LCD Module

Model NO.
K000327 VS-TY2662-V1+ 12.1inch 1024x768 lcd
Minimum order quantity:
1 piece
Supply Ability:
10000.0 piece / Day
Country of Origin:
FOB ShenZhen
Quantity:

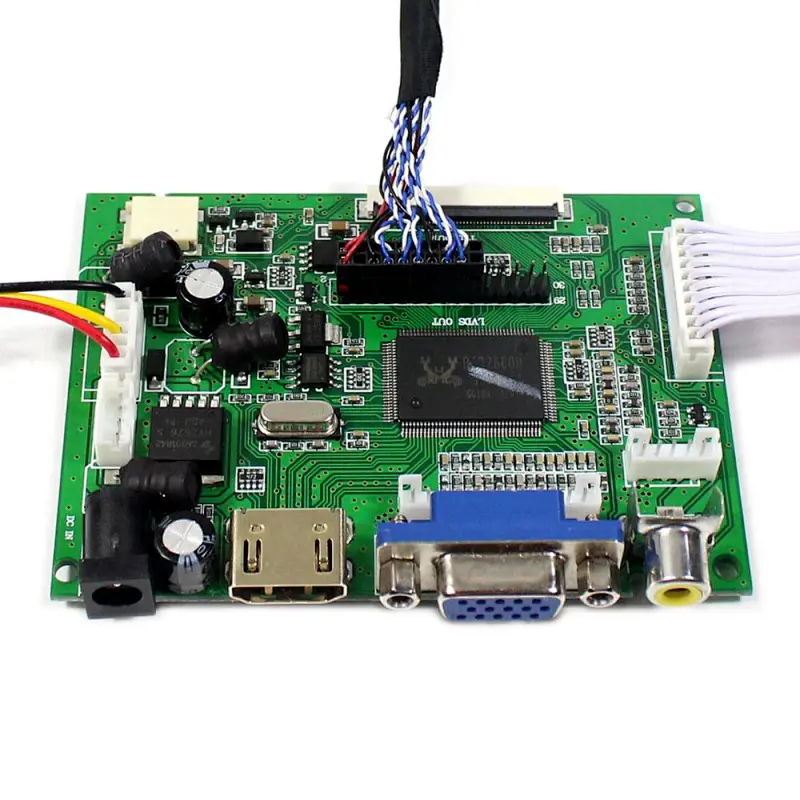

  • LCD Controller Board:
    HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
    50Pin TTL Connector for 7inch~10.1inch LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI VGA AV1 AV2
    Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:91mm x 66mm x 12mm
  • 12.1"1024X768 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 1024RGB)×768
    Outline Size 261×198×5 (H×V×D)
    Display Area 245.76 × 184.32 (H×V)
    Brightness 200 cd/m² (Typ.)
    Contrast Ratio 300:1 (Typ.) (TM)
    Viewing Angle 50/50/40/45 (Typ.)(CR≥10) [Left / Right / Up / Down]

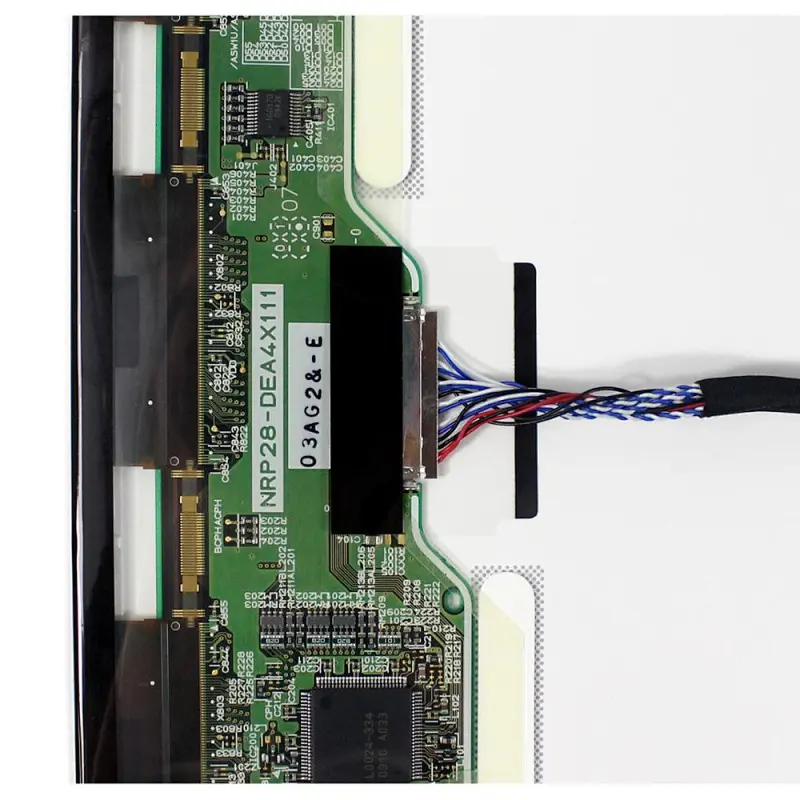

    Signal Interface LVDS (1 ch, 8-bit) , Connector , 20 pins
    Backlight CCFL
    Input Voltage 3.3V (Typ.)

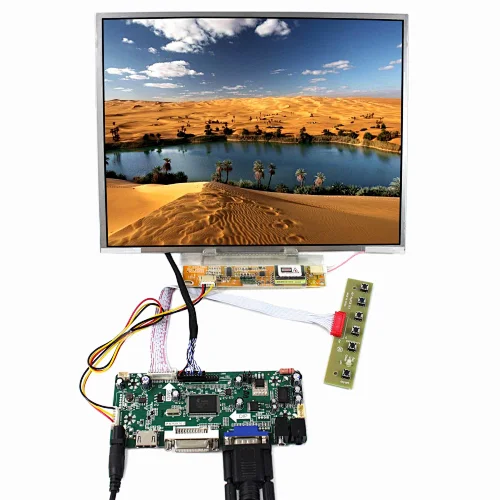

  • Packing list :
    1× HDMI VGA+2AV LCD Controller Board VS-TY2662-V1
    1× 12.1inch 1024X768 LCD Screen(One of N121X5 LTN121XT HT121X01
    LTD121ECNN LTM12C505K)
    1× LVDS Cable
    1× Inverter Board
    1× Keyboard With Cable
    1× Remote Control(Battery Not included)
