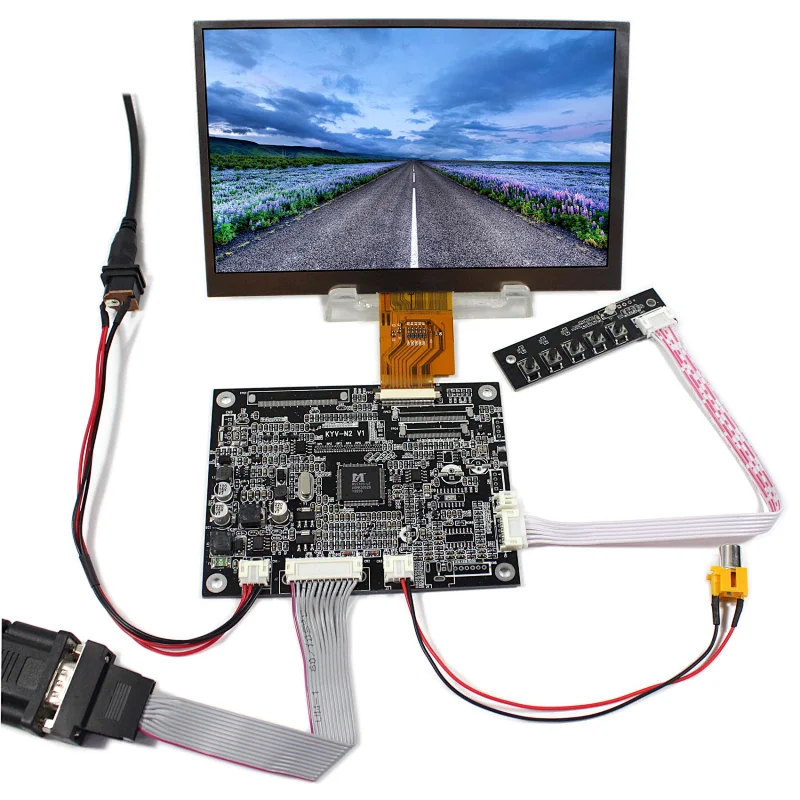

LCD Controller Board with vga av input, 7inch 1024x600 LCD panel
LCD Controller Board with vga av input, 7inch 1024x600 LCD panel
LCD Controller Board with vga av input, 7inch 1024x600 LCD panel
LCD Controller Board with vga av input, 7inch 1024x600 LCD panel
LCD Controller Board with vga av input, 7inch 1024x600 LCD panel
LCD Controller Board with vga av input, 7inch 1024x600 LCD panel
LCD Controller Board with vga av input, 7inch 1024x600 LCD panel
LCD Controller Board with vga av input, 7inch 1024x600 LCD panel
LCD Controller Board with vga av input, 7inch 1024x600 LCD panel

LCD Controller Board with vga av input, 7inch 1024x600 LCD panel

Model NO.
K000154 KYV-N2 V1+AT070TNA2
Minimum order quantity:
1 piece
Supply Ability:
10000 piece / Day
Country of Origin:
FOB ShenZhen
Quantity:

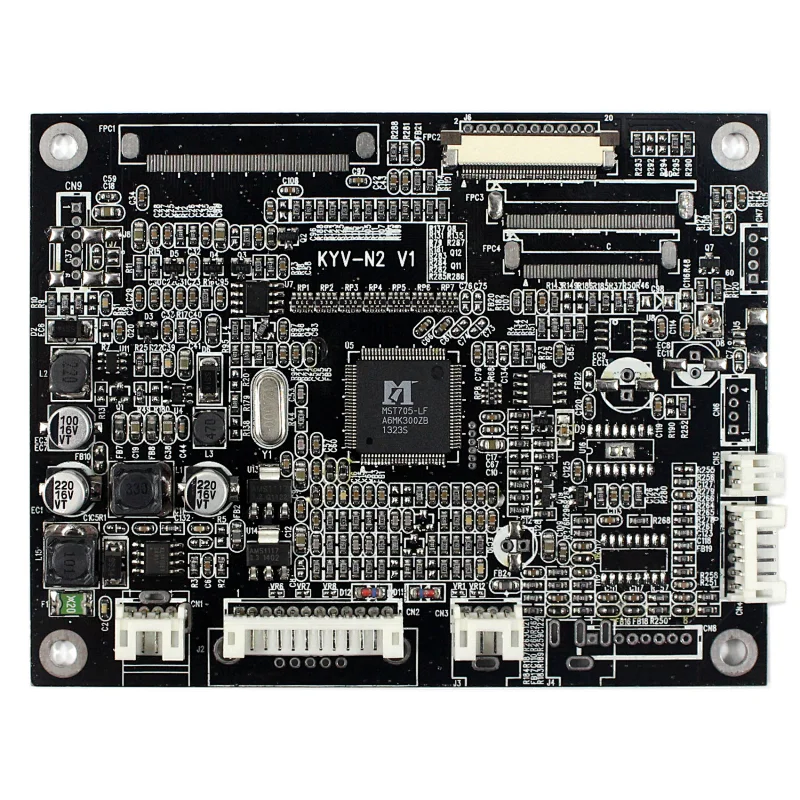

  • LCD Controller Board:
    VGA AV LCD Board Work for 40Pin TTL LCD Screen
    Input Power Adapter:12Vdc More than 1A.
    Come In Standby Model When Not Input Signal
    Standby Model <0.3W
    Video Input: VGA AV
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:110mm x 85mm x 10mm
  • 7"AT070TNA2 1024X600 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 1024RGB)×600
    Outline Size 165.75 × 105.39×3.7 (H×V×D)
    Display Area 153.6 × 90(H×V)
    Brightness 250 cd/m² (Typ.)
    Contrast Ratio 700:1 (Typ.) (TM)
    Viewing Angle 75/75/70/75 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)

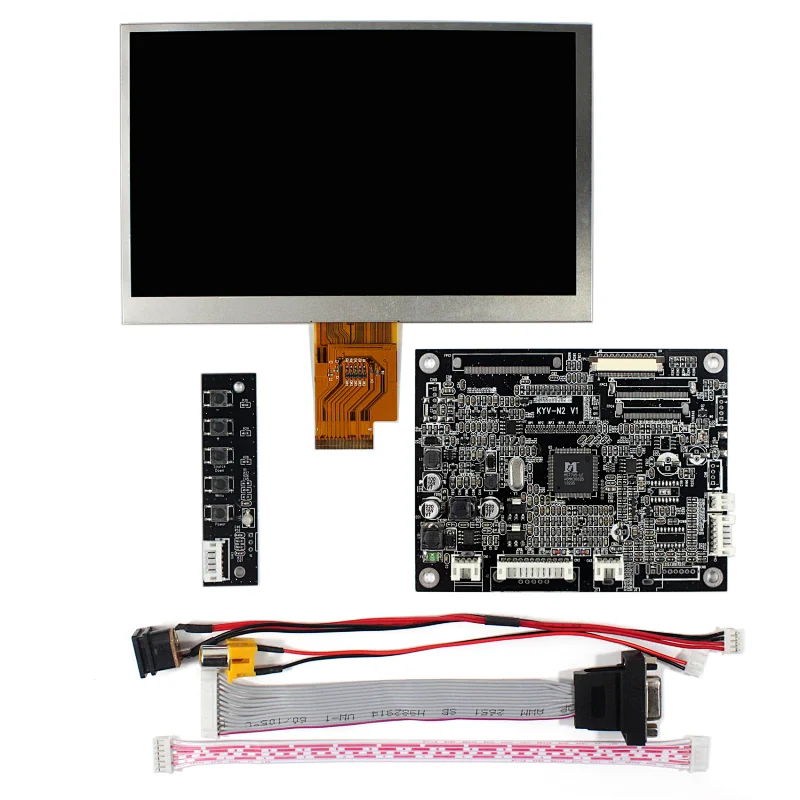

  • Packing list :
    1× VGA+AV LCD Controller Board KYV-N2 V1
    1× 7inch AT070TNA2 1024X600 LCD Screen
    1× Power Supply Cable
    1× VGA Cable
    1× AV Cable
    1× Keyboard With Cable
