LCD Controllers with T-Con Board, 7Inch LCD 800x480 AT070TN92
LCD Controllers with T-Con Board, 7Inch LCD 800x480 AT070TN92
LCD Controllers with T-Con Board, 7Inch LCD 800x480 AT070TN92
LCD Controllers with T-Con Board, 7Inch LCD 800x480 AT070TN92
LCD Controllers with T-Con Board, 7Inch LCD 800x480 AT070TN92
LCD Controllers with T-Con Board, 7Inch LCD 800x480 AT070TN92
LCD Controllers with T-Con Board, 7Inch LCD 800x480 AT070TN92
LCD Controllers with T-Con Board, 7Inch LCD 800x480 AT070TN92
LCD Controllers with T-Con Board, 7Inch LCD 800x480 AT070TN92

LCD Controllers with T-Con Board, 7Inch LCD 800x480 AT070TN92

Model NO.
K000831 M.NT68676+AT070TN92
Quantity:

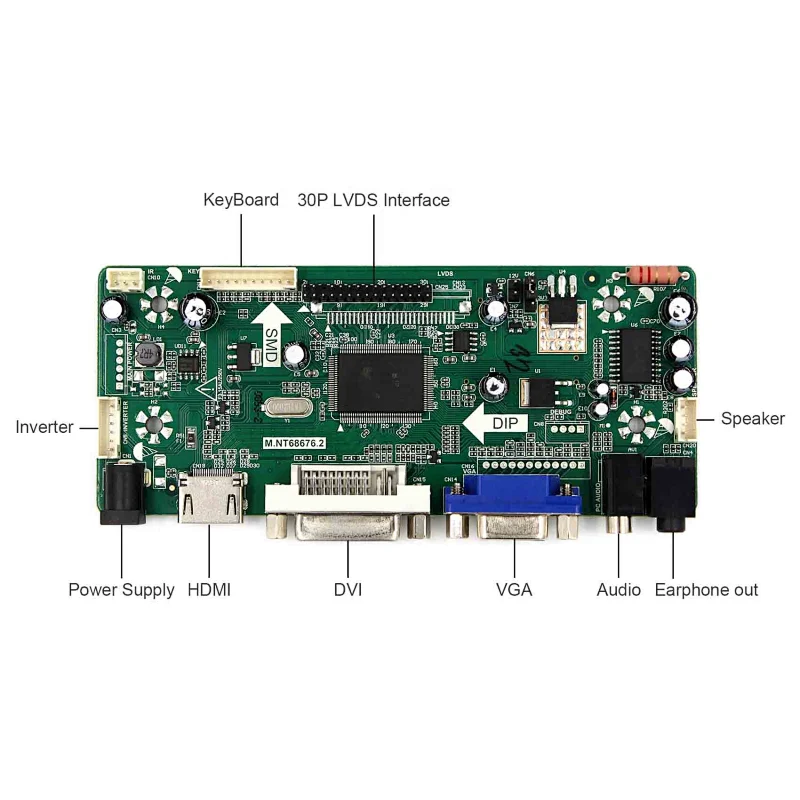

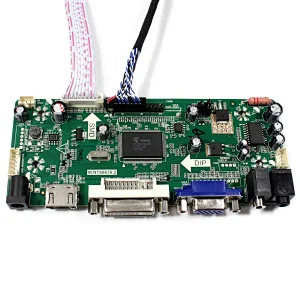

  • LCD Controller Board:
    HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI DVI VGA
    Audio Input: HDMI
    Audio Output: Speaker Connector
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:125mm x 58mm x 17mm
  • 7"AT070TN92 800X480 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 800RGB)×480
    Outline Size 165.2 × 96.62×5.7 (H×V×D)
    Display Area 154.08 × 85.92 (H×V)
    Brightness 250 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 70/70/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)

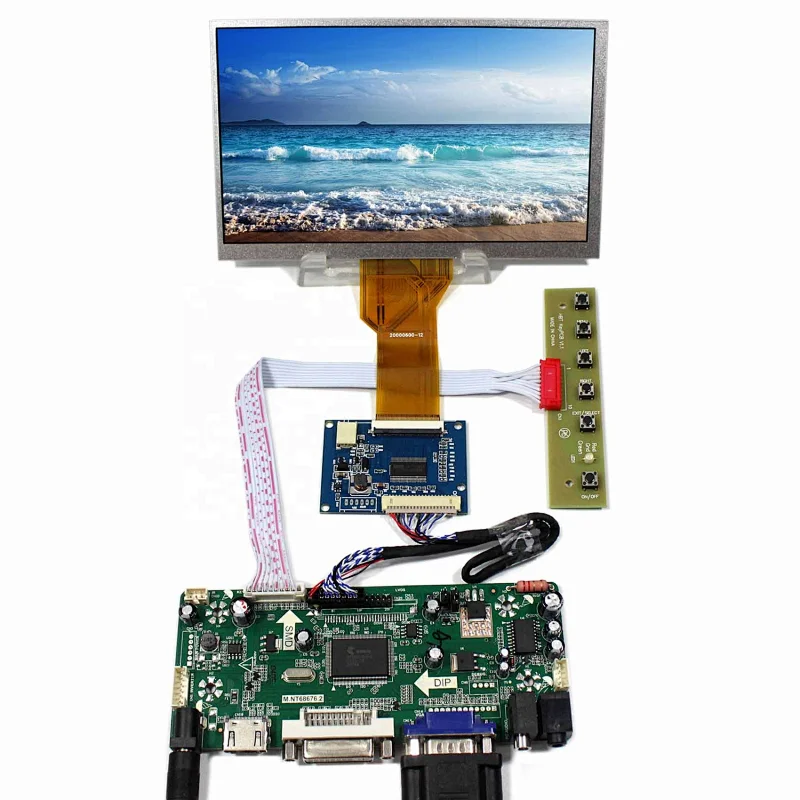

  • Packing list :
    1× HDMI VGA DVI LCD Controller Board M.NT68676
    1× 7inch AT070TN92 800X480 LCD Screen
    1× Tcon Board VS-TCON50-V1
    1× LVDS Cable
    1× Keyboard With Cable
