LCD Display module 7inch 1024x600 with hd mi controller board
LCD Display module 7inch 1024x600 with hd mi controller board
LCD Display module 7inch 1024x600 with hd mi controller board
LCD Display module 7inch 1024x600 with hd mi controller board
LCD Display module 7inch 1024x600 with hd mi controller board
LCD Display module 7inch 1024x600 with hd mi controller board
LCD Display module 7inch 1024x600 with hd mi controller board
LCD Display module 7inch 1024x600 with hd mi controller board
LCD Display module 7inch 1024x600 with hd mi controller board
LCD Display module 7inch 1024x600 with hd mi controller board
LCD Display module 7inch 1024x600 with hd mi controller board
LCD Display module 7inch 1024x600 with hd mi controller board
LCD Display module 7inch 1024x600 with hd mi controller board

LCD Display module 7inch 1024x600 with hd mi controller board

Model NO.
K002068 VS-TY2660H-V812+TB070-H5015E68C-00
Quantity:

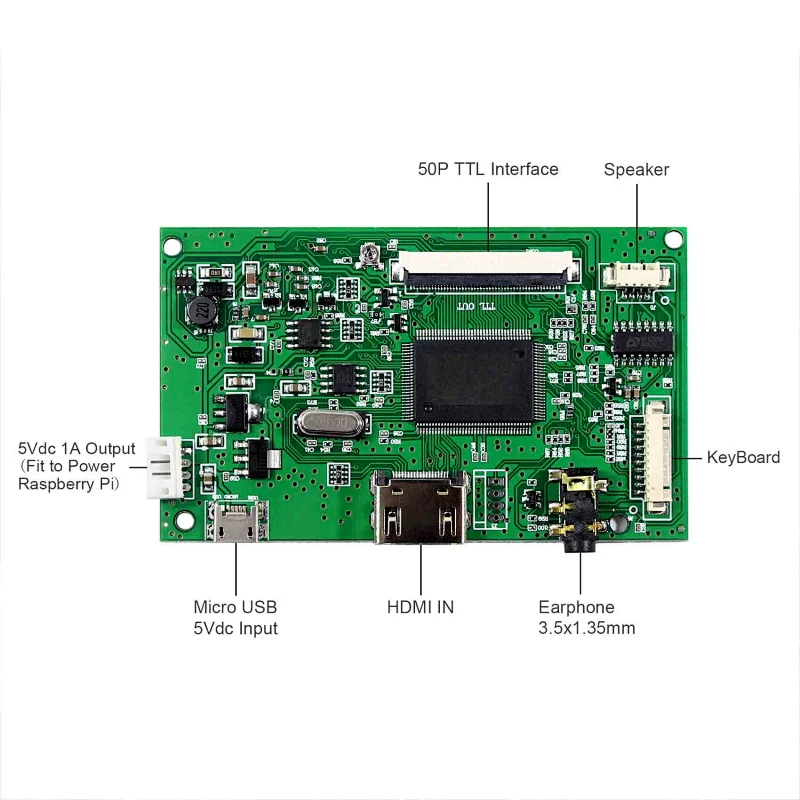

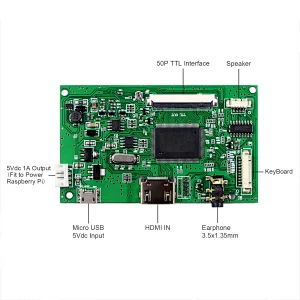

  • LCD Controller Board:
    HDMI LCD Board Work for 50P TTL Interface LCD Screen
    Power Connector: PH2.0 Micro USB
    Input Power Adapter: 5Vdc More than 2A Mirco-USB Connector
    Support 5V 1A Power For Raspberry Pi PH2.0 Connector
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI
    Audio: Earphone
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 88mm x 53mm x 7mm
  • 7"TB070-H5015E68C-00 1024X600 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 1024RGB)×600
    Outline Size 164.9× 100×3.5 (H×V×D)
    Display Area 154.21 × 85.92 (H×V)
    Brightness 400 cd/m² (Typ.)
    Contrast Ratio 800:1 (Typ.) (TM)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 70/70/60/60 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)
  • Packing list :
    1× HDMI LCD Controller Board VS-TY2660H-V812
    1× 7inch TB070-H5015E68C-00 1024X600 LCD Screen
    1× USB Power Cable
    1× Mirco-USB Power Cable
    1× Keyboard With Cable
    1× Remote Control (Battery Not included)
