Model NO.
K001643 T.V56.03+17.3" 1920x1080 LCD
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 set
Supply Ability:
1000 set / Day
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:VS
  • Type:TFT
  • Model Number:T.V56.03+17.3"1920x1080 LCD(K001643)
  • LCD Controller Board:TV input
  • Power Adapter:12v,2a
  • LCD Size:17.3 Inch
  • Resolution:1920*1080
  • Interface:LVDS
  • Backlight:WLED
  • FPC:40pins
  • Product Name:tft lcd with driver board
  • Brightness:220 Cd/m2
  • Display mode:Transmissive

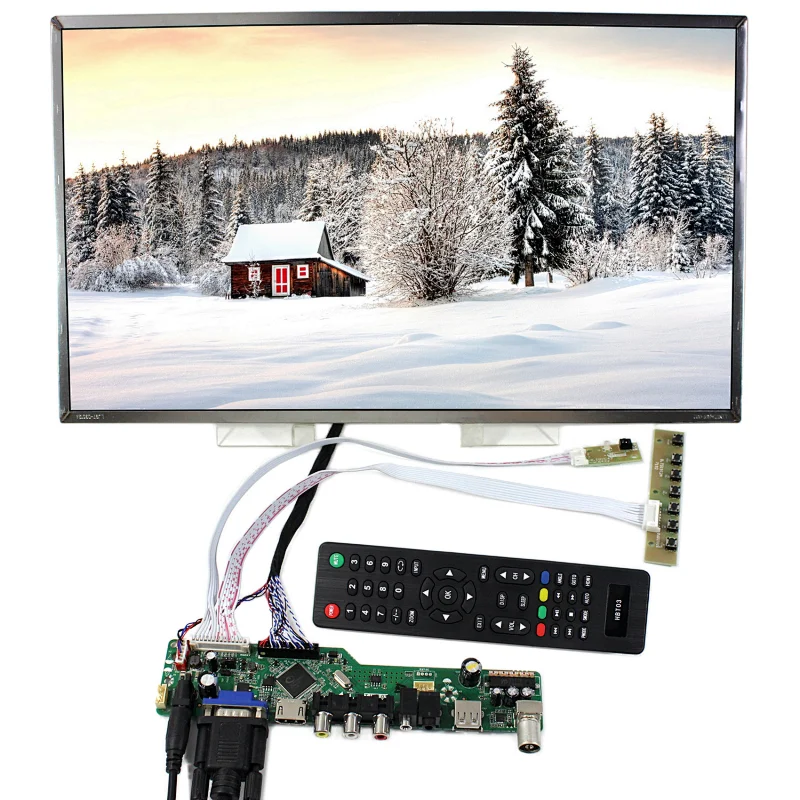

LCD TV kit T.V56.03 with 17.3inch 1920x1080 LED 40PIN LCD Panel

LCD Panel One of LP173WF1 N173HGE-L21 N173HGE-L11 LP173WF1 HSD173UHW1 B173HW01 HSD173PUW1

Product Description

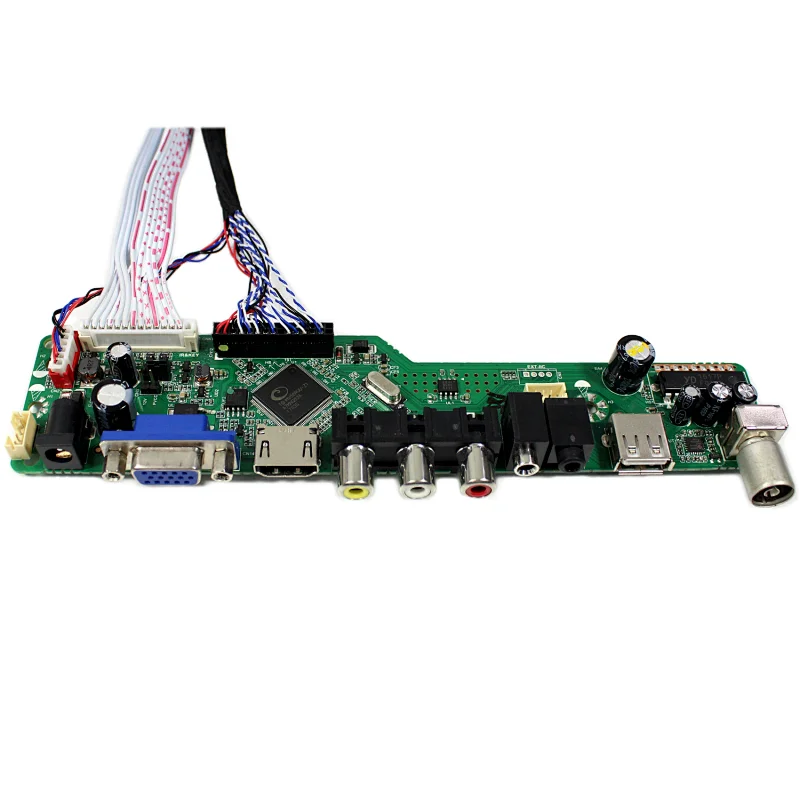

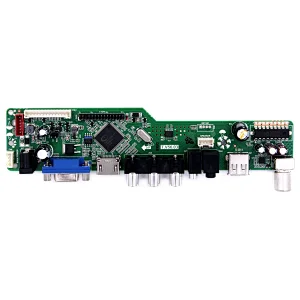

LCD TV Board T.V56.03:

600

Board Size:188mm x 43mm x 17mm

Input Power Adapter:12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

HDMI Port Support Transform audio Compatible with HDMI 1.3/1.4 HDCP 1.2

AV Compatible With PAL And NTSC

OSD: Brigtness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

17.3"1920X1080 LCD Screen:

Display Mode TN, Normally White, Transmissive

Resolution 1920RGB)×1080

Outline Size 398.1 ×232.8×6(H×V×D)

Display Area 381.89 × 241.81 (H×V)

Brightness 220 cd/m² (Typ.)

Contrast Ratio 500:1 (Typ.) (TM)

Viewing Angle 70/70/60/60 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface
LVDS (2 ch, 6-bit) , Connector , 40 pins

Backlight LED

Input Voltage 3.3V (Typ.)

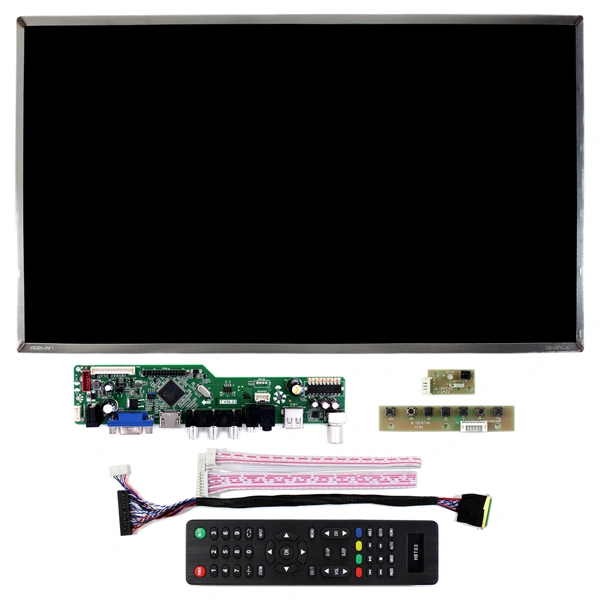

Packaging & Shipping

1× LCD TV Board T.V56.03

1× 17.3inch 1920x1080 LCD panel

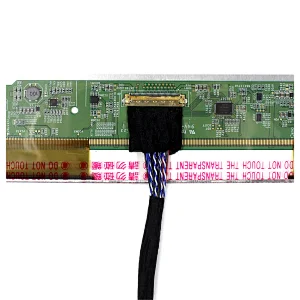

1× 40pins 2ch 6bit LVDS Cable

1× Keyboard with Wire

1× Remote Control (Battery not included Battery)

FAQ

Trade Term:EXW Shenzhen or FOB Shenzhen

Shipping:DHL, UPS, FedEx, TNT, EMS, Hongkong Post

Payment:T/T HSBC, Paypal, Western Union

Our Services

1 year warranty from the day the product sold. Some technical issue can be solved online.

Company Information

VS DISPLAY TECHNOLOGY(HONGKONG) LTDis a Hi-tech manufacturer of liquid crystal displayer.It is establishiment in 1998.The headquarters is located in Shenzhen.

The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications : in telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA), mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.

VS DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.

All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.

Fabrication base covers 4,000sq meters. 2 COB lines, 1 COG lines, 1 TAB lines

QC system: ISO9001
