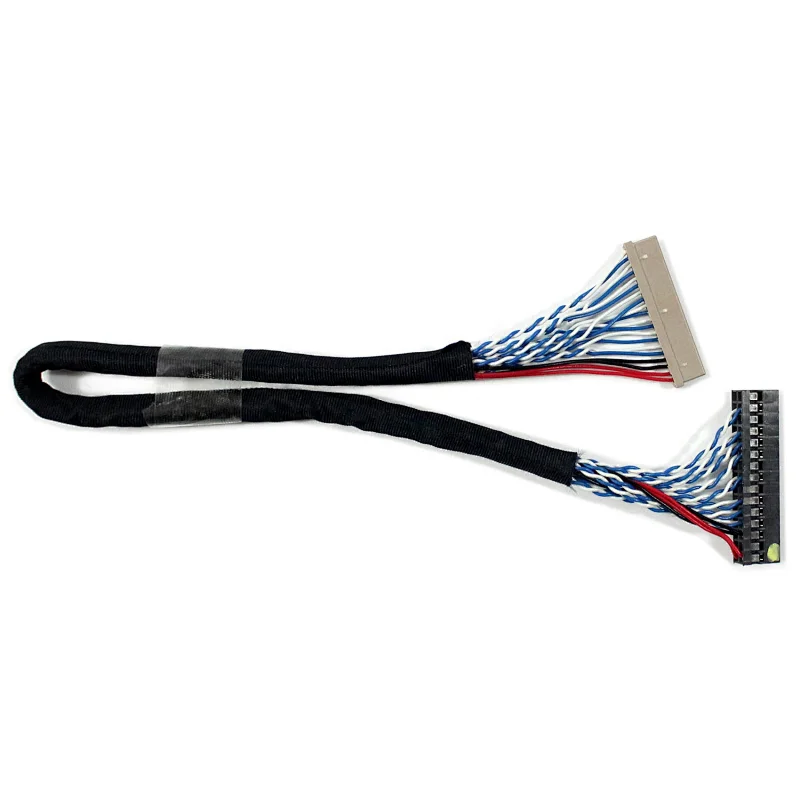

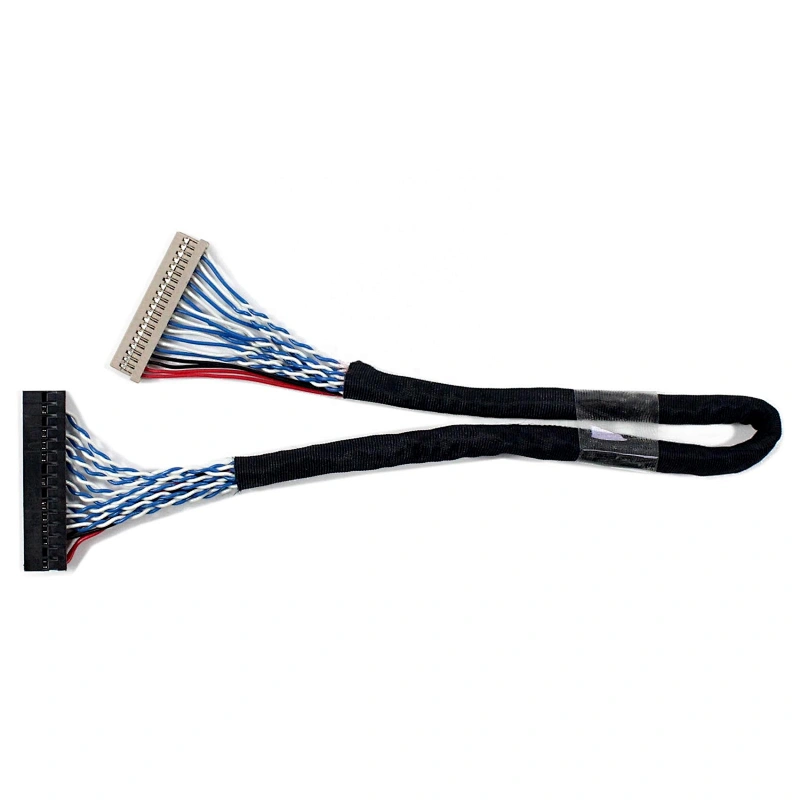

LCD Screen Cable DF14 20Pin 2ch 6bit LVDS Cable
LCD Screen Cable DF14 20Pin 2ch 6bit LVDS Cable
LCD Screen Cable DF14 20Pin 2ch 6bit LVDS Cable
LCD Screen Cable DF14 20Pin 2ch 6bit LVDS Cable
LCD Screen Cable DF14 20Pin 2ch 6bit LVDS Cable
LCD Screen Cable DF14 20Pin 2ch 6bit LVDS Cable
LCD Screen Cable DF14 20Pin 2ch 6bit LVDS Cable
LCD Screen Cable DF14 20Pin 2ch 6bit LVDS Cable
LCD Screen Cable DF14 20Pin 2ch 6bit LVDS Cable
LCD Screen Cable DF14 20Pin 2ch 6bit LVDS Cable
LCD Screen Cable DF14 20Pin 2ch 6bit LVDS Cable
LCD Screen Cable DF14 20Pin 2ch 6bit LVDS Cable
LCD Screen Cable DF14 20Pin 2ch 6bit LVDS Cable

LCD Screen Cable DF14 20Pin 2ch 6bit LVDS Cable

Model NO.
E000013 DF14-20P
Delivery
EXW or FOB ShenZhen
Minimum order quantity
1
Country of Origin
CHINA
Stock Time
3-7days Days
Quantity:
Connection the LCD Controller Board:
PIN #SIGNAL NAMEDESCRIPTION
1VSELPower for panel
2VSELPower for panel
3VSELPower for panel
4GNDGround
5GNDGround
6GNDGround
7RXO0-Negative LVDS differential data input
8RXO0+Positive LVDS differential data input
9RXO1-Negative LVDS differential data input
10RXO1+Positive LVDS differential data input
11RXO2-Negative LVDS differential data input
12RXO2+Positive LVDS differential data input
13GNDGround
14GNDGround
15RXOC-Negative LVDS differential clock input
16RXOC+Positive LVDS differential clock input
17RXO3-No Connection
18RXO3+No Connection
19RXE0-LVDS EVEN 0 - Signal
20RXE0+LVDS EVEN 0 + Signal
21RXE1-LVDS EVEN 1 - Signal
22RXE1+LVDS EVEN 1 + Signal
23RXE2-LVDS EVEN 2 - Signal
24RXE2+LVDS EVEN 2 + Signal
25GNDGround
26GNDGround
27RXEC-LVDS EVEN Clock - Signal
28RXEC+LVDS EVEN Clock + Signal
29RXE3-LVDS EVEN 3 - Signal
30RXE3+LVDS EVEN 3 + Signal
Connection the LCD Screen:
1VCCPower Supply
2VCCPower Supply
3GNDGround
4GNDGround
5Odd_RxIN0-Negaive LVDS differential data input
6Odd_RxIN0+Positive LVDS differential data input
7Odd_RxIN1-Negaive LVDS differential data input
8Odd_RxIN1+Positive LVDS differential data input
9Odd_RxIN2-Negaive LVDS differential data input
10Odd_RxIN2+Positive LVDS differential data input
11Odd_RxCLKIN-Negaive LVDS differential clock input
12Odd_RxCLKIN+Positive LVDS differential clock input
13EVEN_RxIN0-Negaive LVDS differential data input
14EVEN_RxIN0+Positive LVDS differential data input
15EVEN_RxIN1-Negaive LVDS differential data input
16EVEN_RxIN1+Positive LVDS differential data input
17EVEN_RxIN2-Negaive LVDS differential data input
18EVEN_RxIN2+Positive LVDS differential data input
19EVEN_RxCLKIN-Negaive LVDS differential clock input
20EVEN_RxCLKIN+Positive LVDS differential clock input
Packing list :

1× DF14-20P 2ch 6bit LVDS cable Length=250mm


Send Message

* clear input
*

Related Products

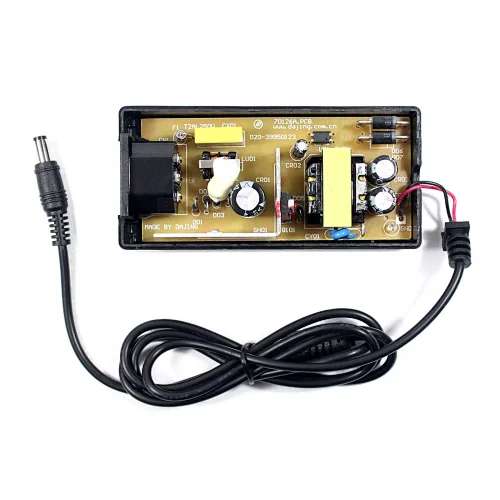

12V 2.6A Power Adapter
12V 2.6A Power Adapter
Model NO. E000008 12V 2.6A Power Adapter

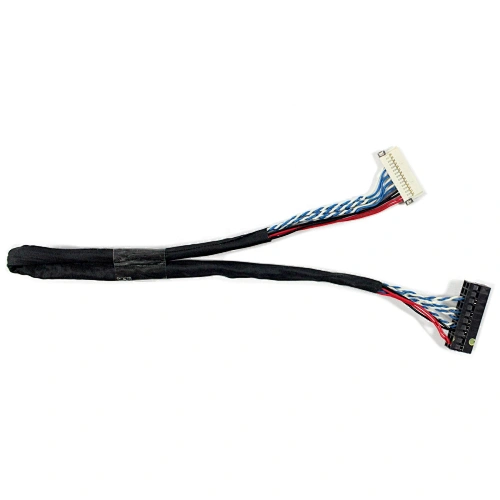

DF19-14P 2ch 6bit LVDS cable Length=250mm Compatible Work With: LTM10C306L LTM10C306K LTM10C306S LTM10C306Y
