HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DVI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm
19"M190CGE 1440X900 LCD Screen
Display Mode TN, Normally White, Transmissive
Outline Size 428×278×11 (H×V×D)
Display Area 408.24× 255.15 (H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface 30 pins LVDS (2 ch, 8-bit) , Connector
Input Voltage 5.0V (Typ.)

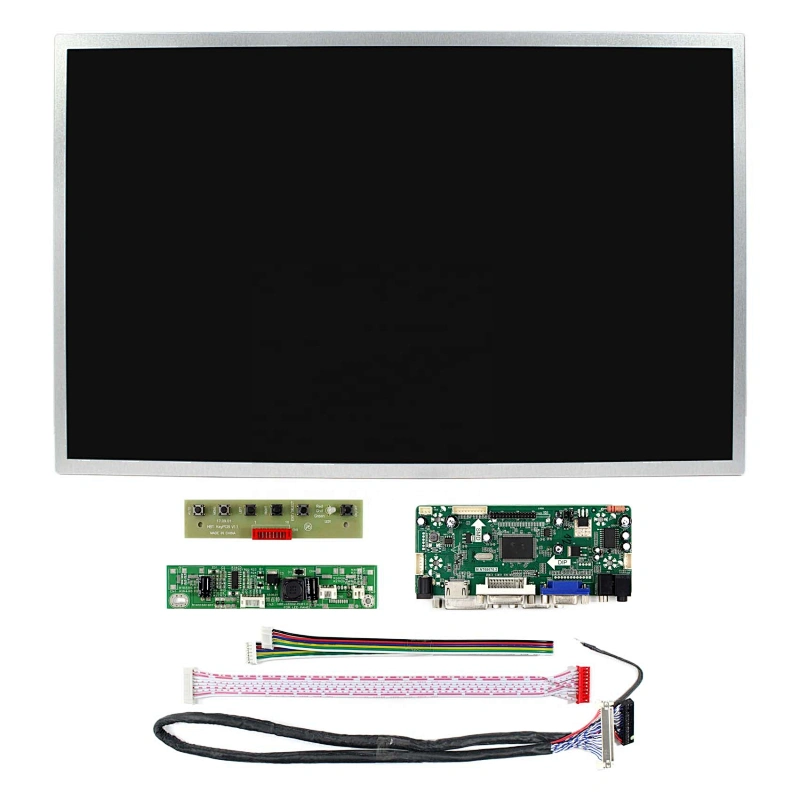

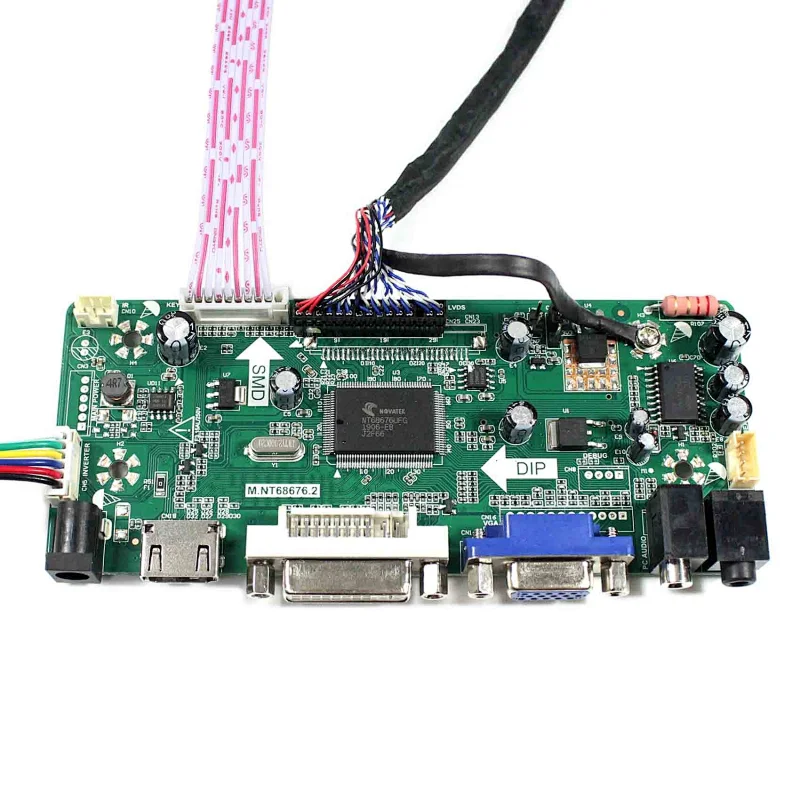

1× HDMI VGA DVI LCD Controller Board M.NT68676
1× 19inch M190CGE 1440X900 LCD Screen
1× Converter Board

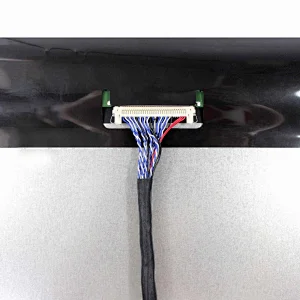

1× LVDS Cable
1× Keyboard With Cable
Hot Sales Product
LCD Driver Board
4K Driver Board+LCD Panel
Our Customer Product
Video Door Phone
16 x 4 LCD Module use for Video Door Phone
From Romania Customer
Outline Dimension : 87.0 x 60.0 x 10.0/13.5(mm)
LCD Type : STN, POSITIVE
Driver IC : SPLC780D1
Backlight : YG LED
Supply Voltage : 5V
10.4inch 800x600, 1024x768 tft lcd use for Aerial photograpy
From Europe customer
LCD Size :10.4"
Outline Size :236 × 174.3×4.9 (H×V×D)mm
Brightness :500 cd/m² (Typ.)
Signal Interface :LVDS (1 ch, 6-bit) , 20pins, Connector
Input Voltage : 3.3V (Typ.)
