- Type:TFT
- Product Name:LCD screen
- Size:12.6
- Resolution:1920X515
- Contrast Ratio:1200:1
- Brightness:250 cd/m2
- Application:for mall / shelves / elevator / car
- LCD Size:315.61x94.02x5.3
- Part No:NV126B5M-N41
- Board:HDM I TYPE-C Controller Board
- Place of Origin:CN
- Type:Type C Board with 12.6inch lcd
- Display Size:12.6inch
- Supplier Type:Manufacture
- Model Number:K002638 VS-RT2556T2K+NV126B5M-N41 1920X515
- Brand Name:VS
Products Show
Product Description

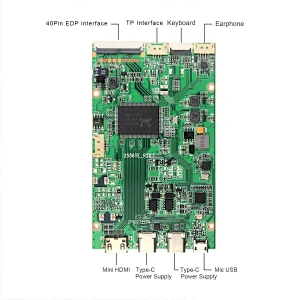

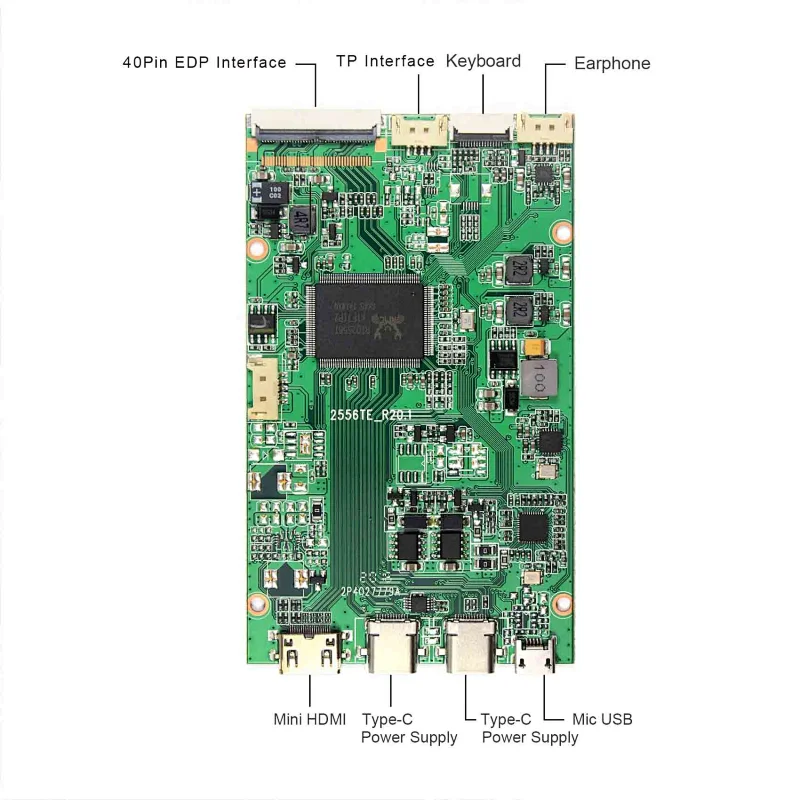

LCD Controller Board:
HDMI Type C Control Board Work for 40Pin EDP LCD Screen
Input Power Adapter: Type-C connector
HDR: Support
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Input: Type-C Mini HDMI
Output: eDP USB (max 500mA)
Audio Output: Speaker
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English Chinese French Deutsch Italian Espanol Portugues Turkce Polski
Nederlands Korean Japanese
Board Size: 126mm x 60mm x 4mm

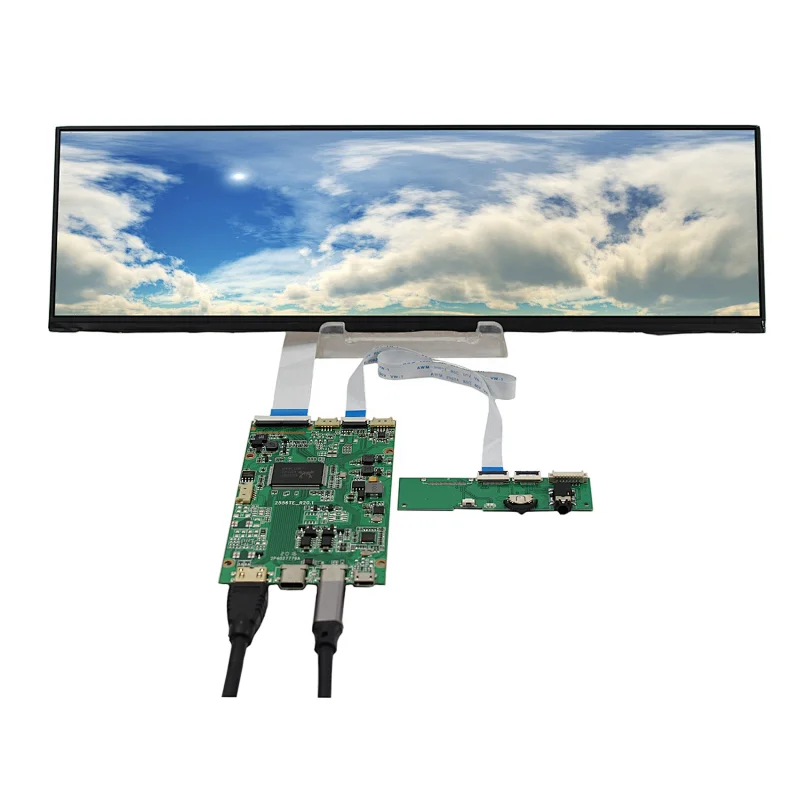

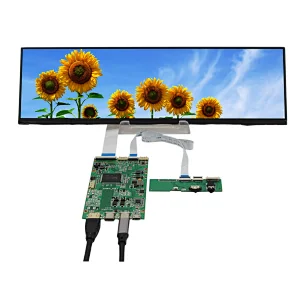

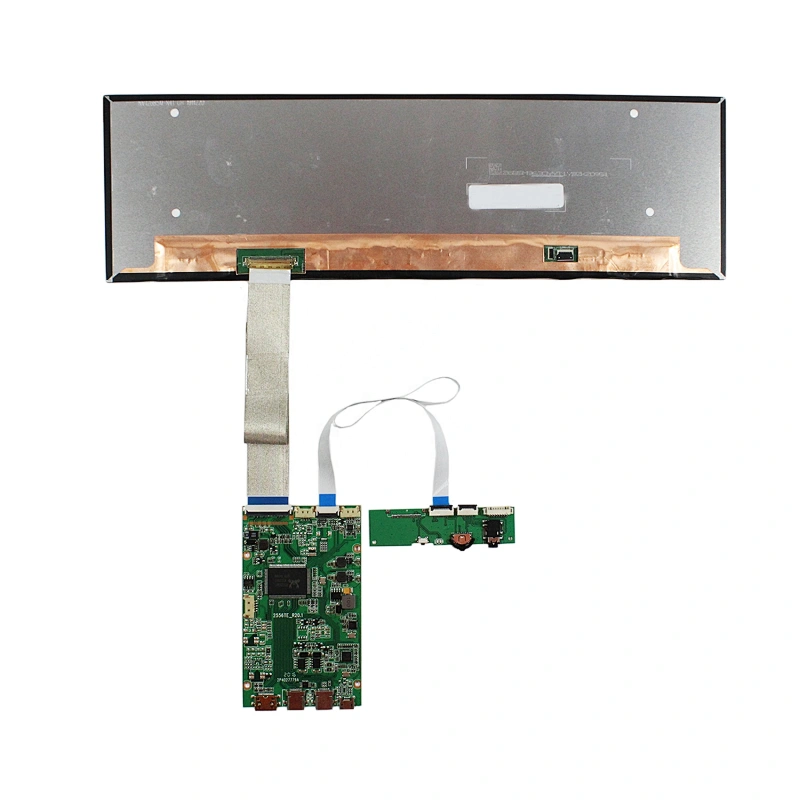

12.6"NV126B5M-N41 1920X515 LCD Screen:
Display New Mode ADS, Normally Black, Transmissive
Resolution 1920RGB)×515
Outline Size 315.61×94.02×5.3(H×V×D)
Display Area 309.31×82.97 (H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 1200:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface eDP (2 Lanes), Connector, 40pins
Backlight WLED
Input Voltage 3.3V (Typ.)

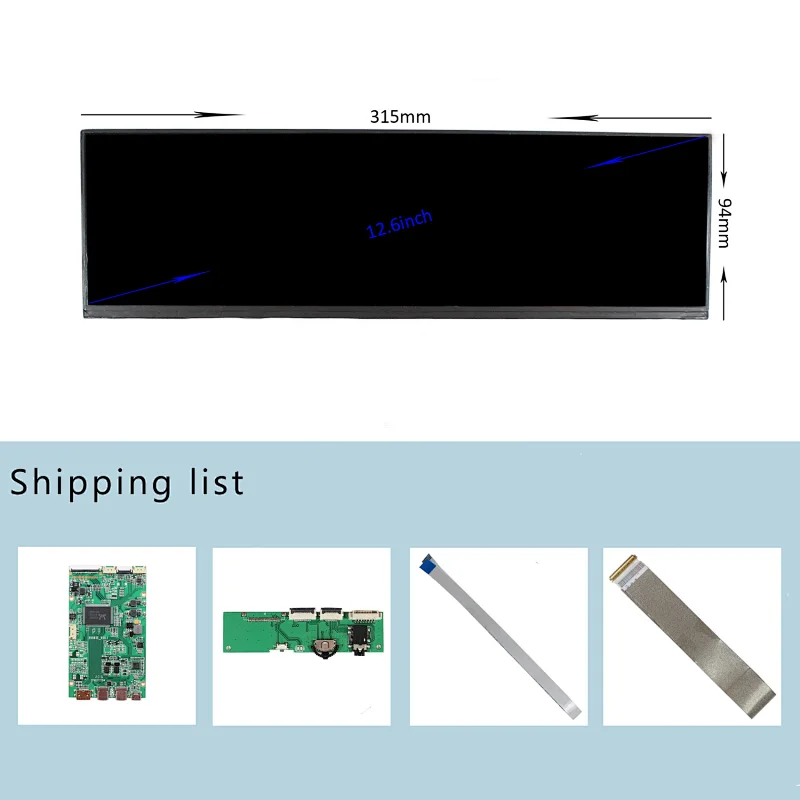

Packing list:
1× HDMI TYPE-C LCD Controller Board VS-RTD2556HC-V2
1× 12.6inch NV126B5M-N41 1920X515 IPS LCD Screen
1× Signal Cable
1× Keyboard With Cable
HDMI Type C Control Board Work for 40Pin EDP LCD Screen
Input Power Adapter: Type-C connector
HDR: Support
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Input: Type-C Mini HDMI
Output: eDP USB (max 500mA)
Audio Output: Speaker
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English Chinese French Deutsch Italian Espanol Portugues Turkce Polski
Nederlands Korean Japanese
Board Size: 126mm x 60mm x 4mm
12.6"NV126B5M-N41 1920X515 LCD Screen:
Display New Mode ADS, Normally Black, Transmissive
Resolution 1920RGB)×515
Outline Size 315.61×94.02×5.3(H×V×D)
Display Area 309.31×82.97 (H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 1200:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface eDP (2 Lanes), Connector, 40pins
Backlight WLED
Input Voltage 3.3V (Typ.)
Packing list:
1× HDMI TYPE-C LCD Controller Board VS-RTD2556HC-V2
1× 12.6inch NV126B5M-N41 1920X515 IPS LCD Screen
1× Signal Cable
1× Keyboard With Cable
