Model NO.
K002690-M.NT68676+M215HJJ-P02 1920x1080
Delivery:
EXW or FOB
Minimum order quantity:
1 set
Supply Ability:
1000 set / Day
Country of Origin:
CHINA
Stock Time:
3 Days
Quantity:

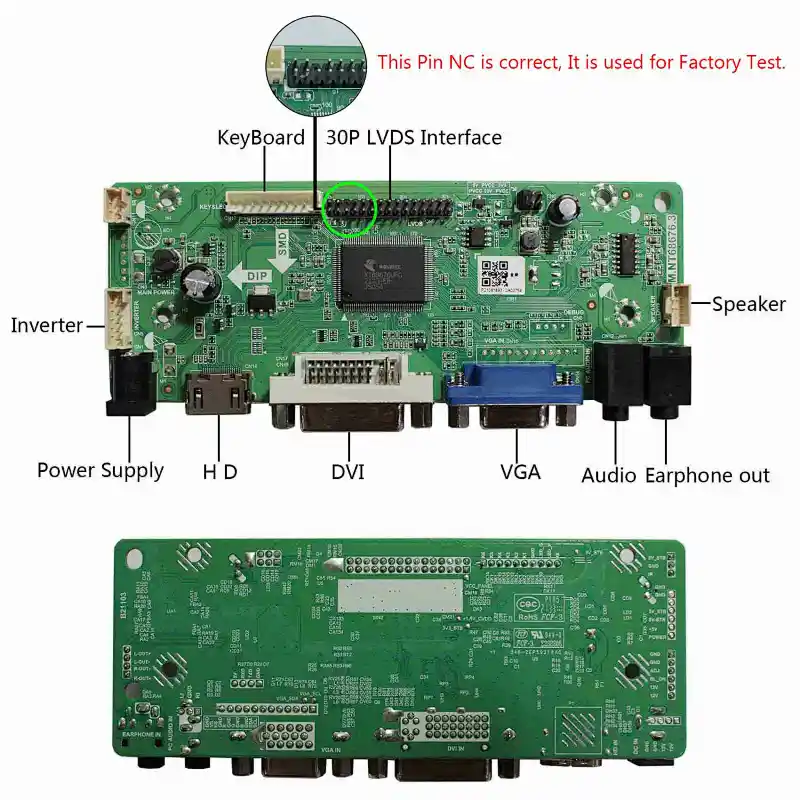

  • LCD Controller Board:
    HD-MI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HD-MI DVI VGA
    Audio Input: HD-MI
    Audio Output: Speaker Connector
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On

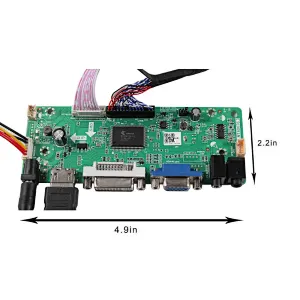

    Board Size: 125mm x 58mm x 17mm
  • 21.5"M215HJJ 1000nit 1920x1080 LCD Screen:
    Display Mode MVA, Normally Black, Transmissive
    Resolution 1920(RGB)×1080, FHD, 102PPI
    Outline Size 487.664(W)×279.286(H) ×1.29(D) mm
    Display Area 476.064(W)×267.786(H) mm
    Brightness 1000 cd/m²
    Contrast Ratio 3000:1 (Typ.) (TM)
    Viewing Angle 89/89/89/89 (Typ.)(CR≥20)
    Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
    Backlight WLED
    Input Voltage 5.0V (Typ.)

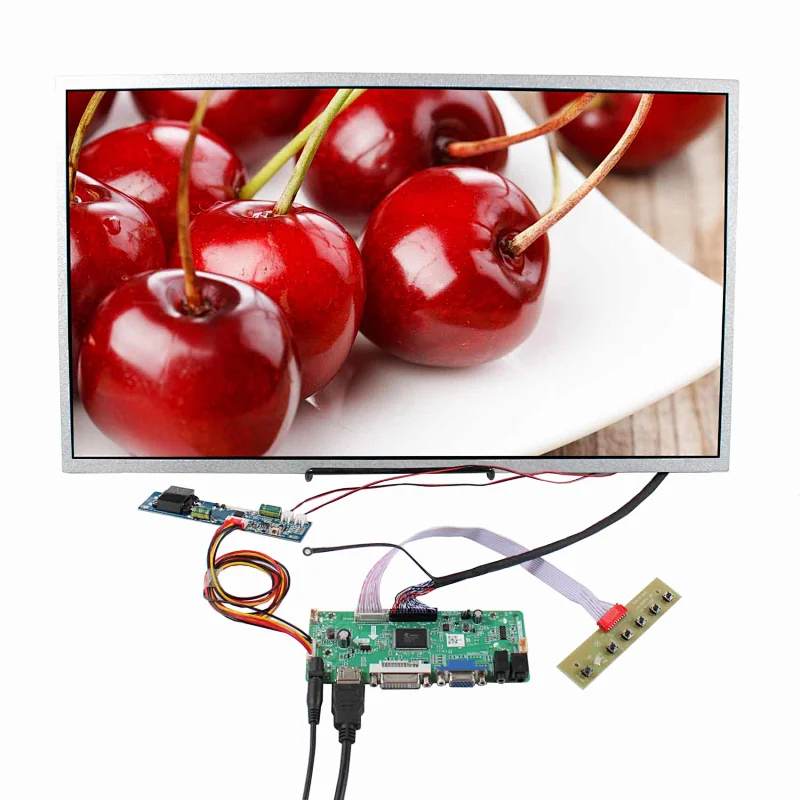

  • Packing list:
    1× HDMI VGA DVI LCD Controller Board M.NT68676
    1×21.5" M215HJJ 1000nit 1920x1080 LCD Screen

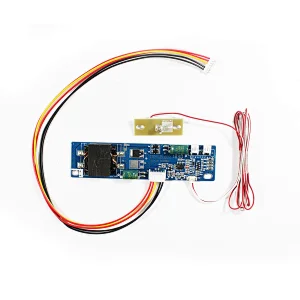

    1× Inverter Board
    Backlight Cable
    1× Keyboard With Cable
